58
AUX/MTX send
AUX/MTX send
1.
In the fader module section, press [SEL] to select the
desired channel.
2.
In the CHANNEL EDIT section, press the [SEND] button.

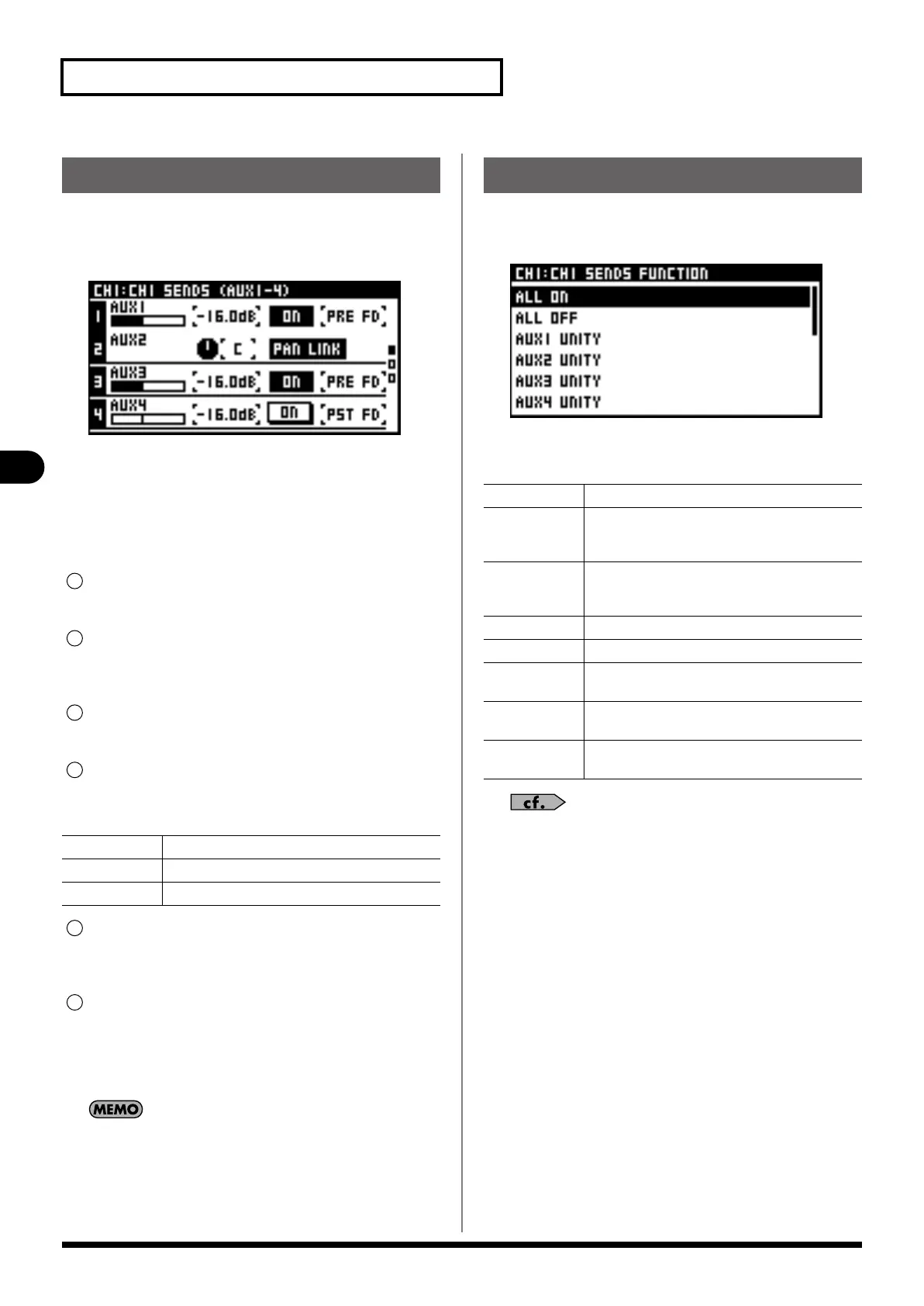

The SENDS screen is displayed.
AUX send 1-8 (CH1-32 only), MTX send 1- 4
These specify sends to the AUX or MTX buses. The AUX and MTX
sends are organized as follows:
Channel name
This indicates the AUX/MTX channel name.
Send level
This adjusts the send level to the AUX/MTX bus in a range of
-Inf dB to +10.0 dB.
ON button
This turns the send switch on/off.
Send point select
These select the point from which the CH signal is sent to the
AUX/MTX bus, from among the following choices:
Pan (when the AUX/MTX bus is stereo-linked)
This adjusts the left/right panning of the signal sent to the
stereo-linked AUX/MTX bus in a range of L63 to R63.
PAN LINK button (when the AUX/MTX bus is stereo-
linked)
This turns the PAN LINK on/off. If PAN LINK is on, the pan
from the input channel (CH1 to 32) to MAIN is linked with the
pan from the channel to the stereo-linked AUX/MTX bus.
The PAN LINK is not displayed when sending from a bus (MAIN
L/R or AUX1 through 8) to MTX.
1.
Access the SENDS screen for the desired channel.
2.
Press [FUNC] to access the SENDS FUNCTION screen.
The functions available at the SENDS FUNCTION screen are as
follows:
For information on, COPY, PASTE, or UNDO, go to “Basic
operation“ and refer to “Copy“ (p. 28), “Paste“ (p. 29), or “Undo“
(p. 29).
SENDS screen
PRE EQ
Send from the pre-EQ point.
PRE FD Send from the pre-fader point.
POST FD Send from the post-fader point.
1
2
3
4
5
6
SENDS FUNCTION screen
COPY
Copies sends settings to the clipboard.
PASTE When sends settings have been copied to the
clipboard, this pastes the settings from the
clipboard.
UNDO This undoes the last-performed parameter paste
operation. It is not displayed when there is no action
to undo.
ALL ON This turns on all send switches for each send field.
ALL OFF This turns off all send switches for each send field.
AUX 1-8 UNITY
(CH1-32 only)
This sets the send level to 0.0 dB for each bus from
AUX1 through 8.
MTX 1-4 UNITY This sets the send level to 0.0 dB for each bus from
MTX1 through 4.
ALL CH SEND
POINTS
This sets all AUX/MTX send points.
M-200i_e.book 58 ページ ２０１３年１月１６日 水曜日 午後４時９分
