23

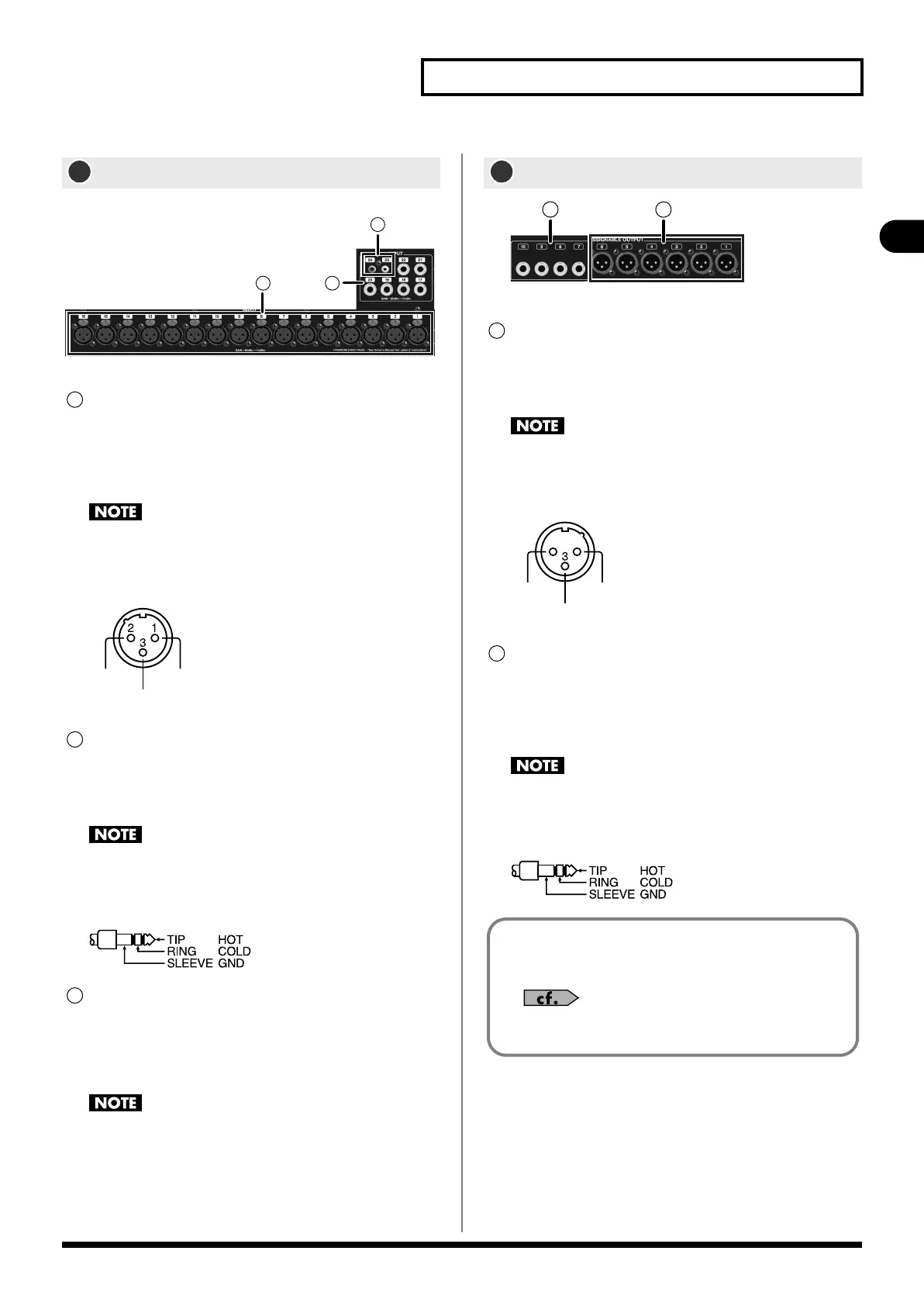

Explanation of the panels
Explanation of the panels
fig.ConsInJackGuide.eps
INPUT 1 – 16 jacks
These are balanced XLR-3-31 female input jacks for inputting
analog audio signals from microphones or line level
equipment.
By default, they are patched to CH 1 through 16.
922
This instrument is equipped with balanced (XLR) type jacks.
Wiring diagrams for these jacks are shown below. Make
connections after first checking the wiring diagrams of other
equipment you intend to connect.
fig.XLRJackInput.eps
INPUT 17 - 22 jacks
These are balanced (TRS) type jacks for inputting analog
audio signals from line-level equipment.
By default, they are patched to CH 17 through 22.
922
This instrument is equipped with balanced (TRS) type jacks.
Wiring diagrams for these jacks are shown below. Make
connections after first checking the wiring diagrams of other
equipment you intend to connect.
fig.TRSJack.eps
INPUT 23 – 24 jacks
These are RCA phono jacks for inputting analog audio
signals from line-level equipment.
By default, they are patched to CH 23 through 24.
926a
When connection cables with resistors are used, the volume
level of equipment connected to the inputs (CONSOLE
INPUT) may be low. If this happens, use connection cables
that do not contain resistors.
fig.ConsOutJackGuide.eps
ASSIGNABLE OUTPUT 1 – 6 jacks
These are balanced XLR-3-32 male output jacks for
outputting analog audio signals.
By default, AUX1 through 6 are patched to these jacks.
922
This instrument is equipped with balanced (XLR) type jacks.
Wiring diagrams for these jacks are shown below. Make
connections after first checking the wiring diagrams of other
equipment you intend to connect.
fig.XLRJack.eps
ASSIGNABLE OUTPUT 7 - 10 jacks
These are balanced (TRS) type 1/4-inch phone jacks for
outputting analog audio signals.
By default, AUX7 through 8 and MAIN L/R are patched to
these jacks.
922
This instrument is equipped with balanced (TRS) type jacks.
Wiring diagrams for these jacks are shown below. Make
connections after first checking the wiring diagrams of other
equipment you intend to connect.
fig.TRSJack.eps
INPUT jacks
1
21
3
1
+PHANTOM[+48V/14mA]
GND
COLD
HOT
2
3
ASSIGNABLE OUTPUT jacks
1
2
1
HOT
COLD
GND
12
2
The INPUT 17 through 20 jacks and ASSIGNABLE OUTPUT 7
through 10 jacks can also be used as input/output jacks for
inserting external effect processors into channels.
For details, refer to “About inserting an external effects
device” (p. 64).
M-200i_e.book 23 ページ ２０１３年１月１６日 水曜日 午後４時９分
