Explanation of the panels
Explanation of the panels

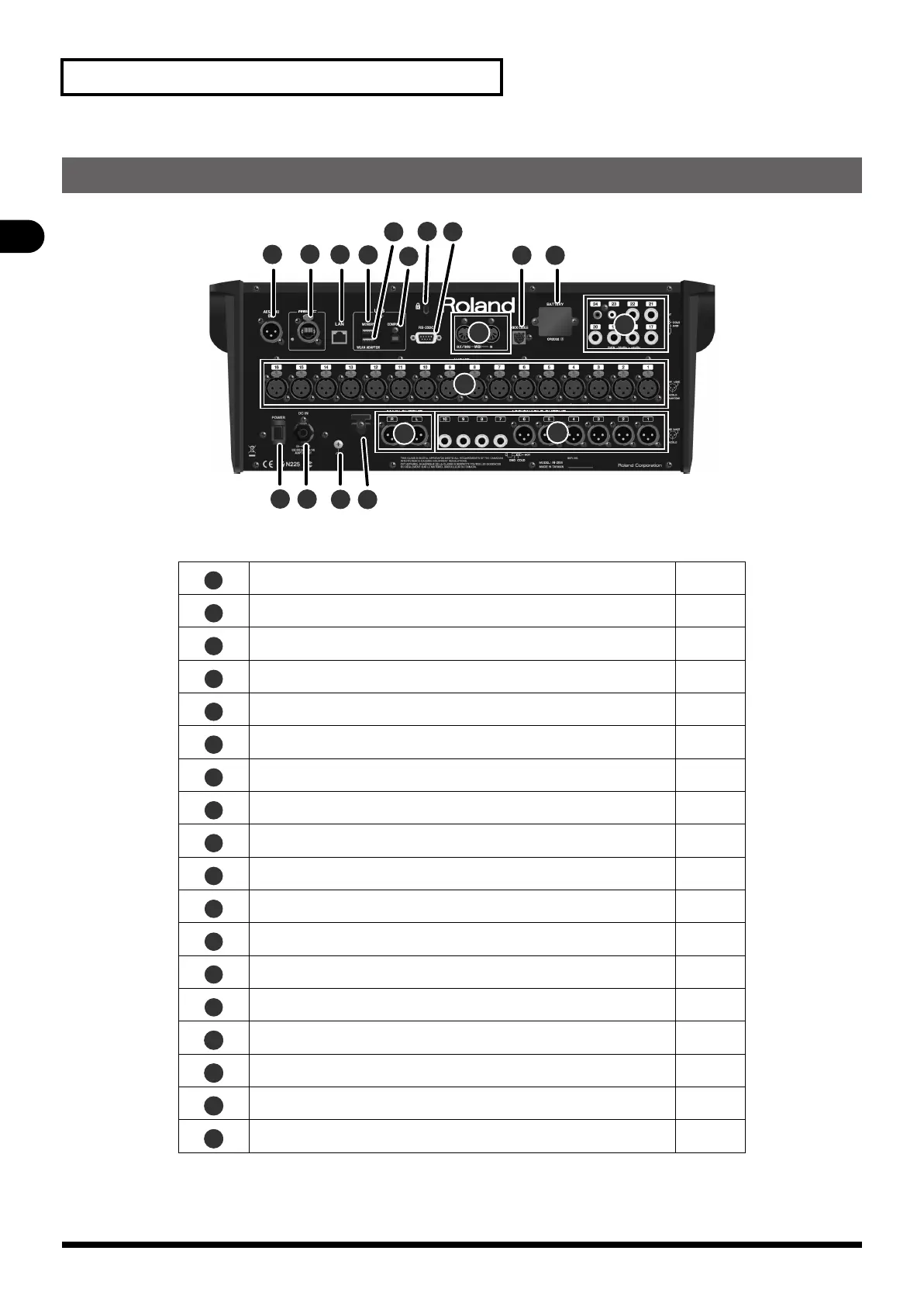

fig.RearPanelGuide.eps
Rear panel
INPUT jacks
p. 23
ASSIGNABLE OUTPUT jacks
p. 23
MAIN OUTPUT jacks
p. 24
AES/EBU OUT jack
p. 24
REAC port
p. 24
LAN connector
p. 24
USB MEMORY connector
p. 24
USB WLAN ADAPTOR connector
p. 24
USB COMPUTER connector
p. 24
Security slot
p. 24
RS-232C connector
p. 24
MIDI connectors
p. 24
DOCK CABLE connector
p. 25
BATTERY slot
p. 25
Power cord hook
p. 25
Grounding terminal
p. 25
AC adapter connector
p. 25
POWER switch
p. 25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
