A gate/expander is provided on CH1–32, and can be used as a gate, an expander, or a ducking processor.
A gate applies a user-adjustable level of attenuation (RANGE) to input signals that are lower than the threshold level.
ffig.GateCurve.eps
An expander applies a user-adjustable ratio of attenuation (RATIO) to input signals that are lower than the threshold level.
fig.ExpCurve.eps
A ducking processor applies a user-adjustable level of attenuation (RANGE) to input signals that are higher than the threshold level.
fig.GateDuck.eps
Gate, expander, and ducking operations are performed at the GATE/EXPANDER screen.

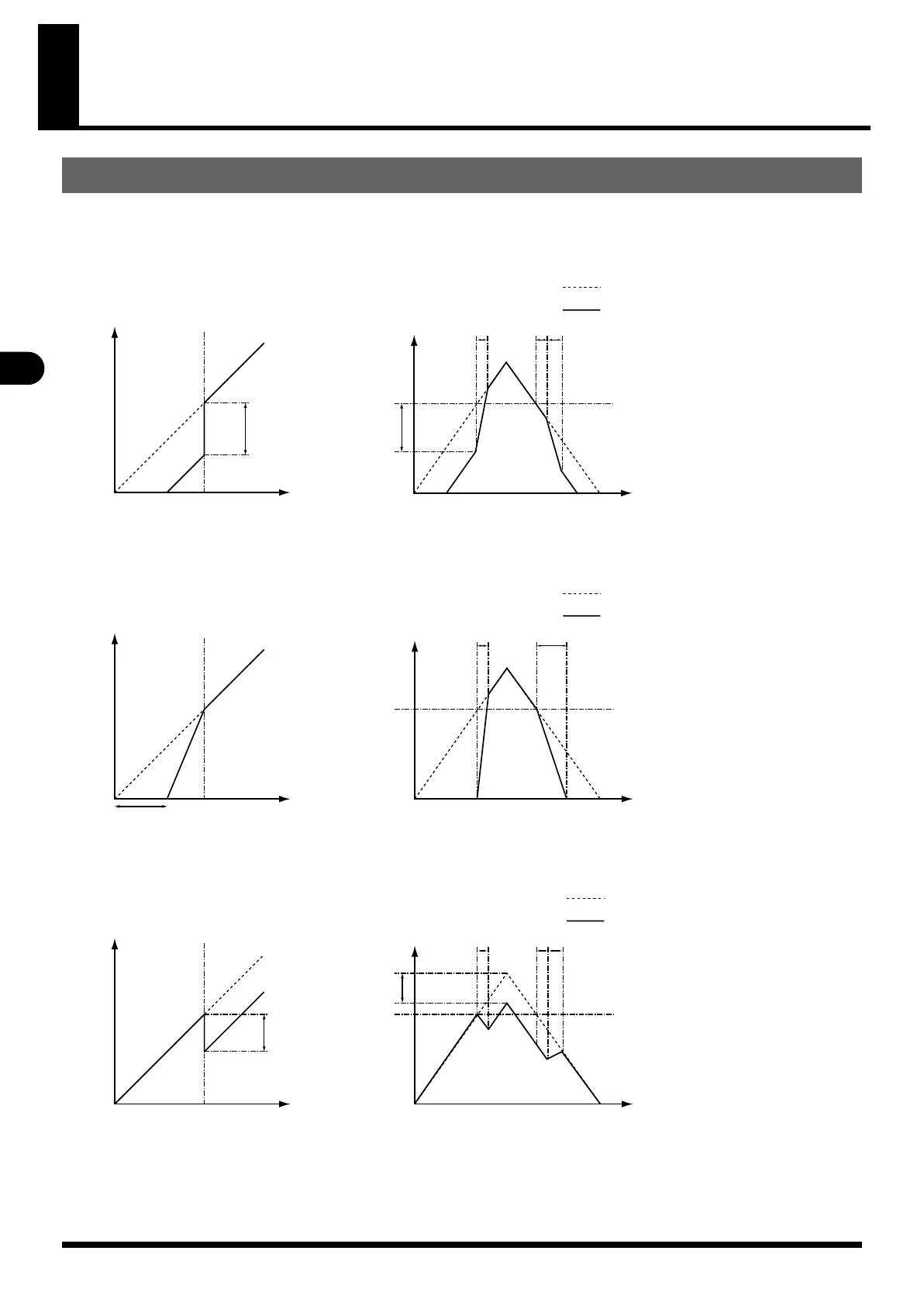

Gate/expander operations
INPUT LEVEL
TIME
OUTPUT LEVEL
LEVEL
THRESHOLD
THRESHOLD
RANGE
RANGE
ATTACK
HOLD
RELEASE
INPUT SIGNAL
OUTPUT SIGNAL
INPUT LEVEL TIME
OUTPUT LEVEL
LEVEL
THRESHOLD
THRESHOLD
ATTACK RELEASE
INPUT SIGNAL
OUTPUT SIGNAL
RATIO
(KNEE=HARD) (RATIO=INF:1)
INPUT LEVEL TIME
OUTPUT LEVEL
LEVEL
THRESHOLD
THRESHOLD
RANGE
RANGE
ATTACK
HOLD
RELEASE
INPUT SIGNAL
OUTPUT SIGNAL
