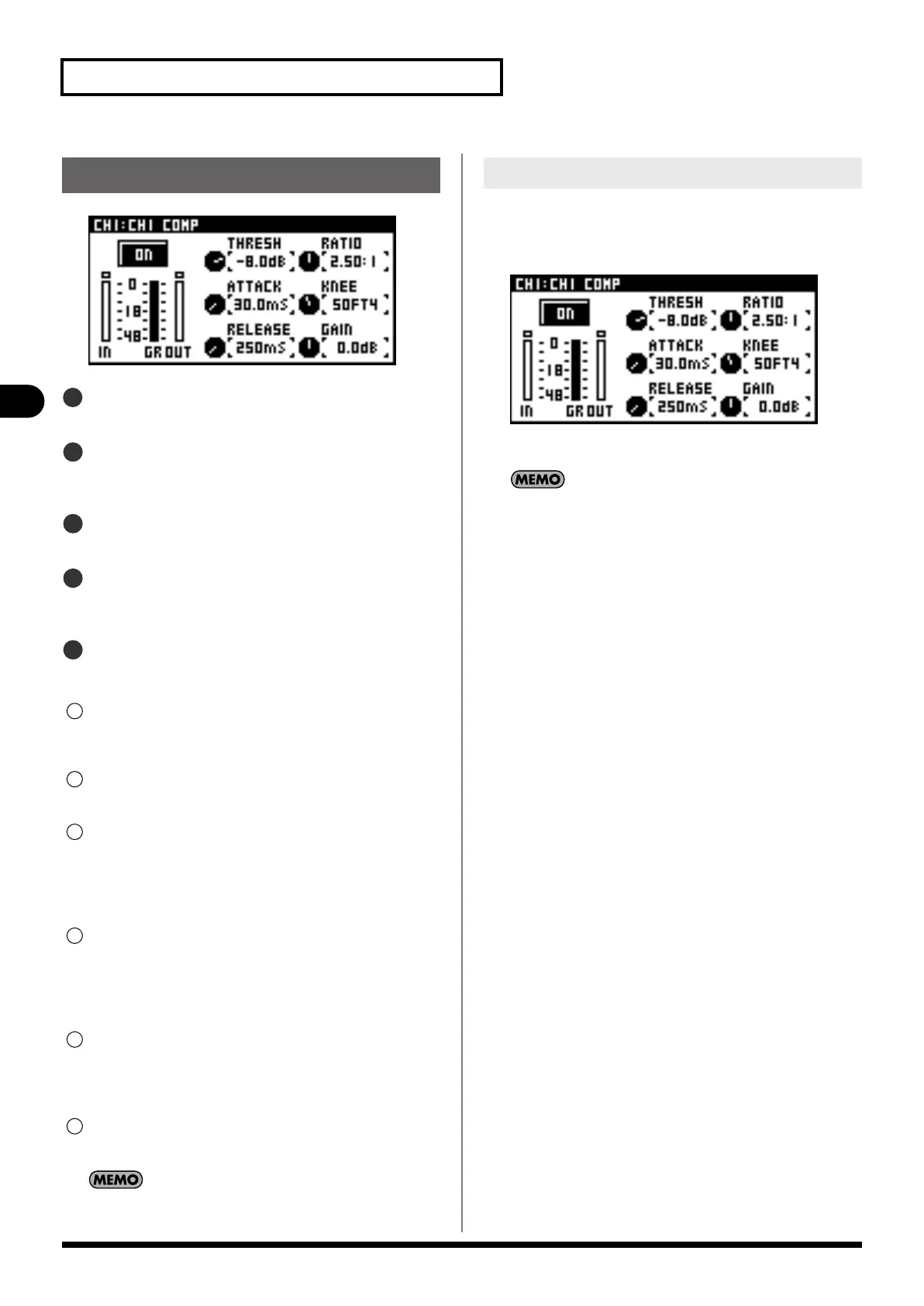

COMPRESSOR/LIMITER screen
COMPRESSOR/LIMITER screen
On button
This turns the COMPRESSOR on/off.
IN meter
This shows the input level of the compressor. For a stereo-
linked channel, two meters (L and R) are shown.
GR meter
This shows the amount of gain reduction for the compressor.
OUT meter
This shows the output level of the compressor. For a stereo-
linked channel, two meters (L and R) are shown.
Parameter
This sets the parameters for the compressor.
THRESH knob
This adjusts the threshold level in a range of -40.0 dB to 0.0
dB.
RATIO knob
This adjusts the RATIO in a range of 1.00:1 to INF:1 (14 steps).
ATTACK knob
This adjusts the ATTACK time in a range of 0.0 ms to 800.0
ms. This is the time from when the input signal exceeds the
threshold level until the compressor effect reaches its
maximum.
KNEE knob
This adjusts the KNEE in a range of HARD or SOFT1 to SOFT9
(ten steps). The way in which the compressor is applied to
the region near the threshold level can be adjusted between
steep (HARD) and gentle (SOFT9).
RELEASE knob
This adjusts the RELEASE time in a range of 0 ms to 8000 ms.
This is the time from when the input signal falls below the
threshold level until the compressor effect disappears.
GAIN knob
This adjusts the GAIN in a range of -40.0 dB to +40.0 dB.
If AUTO GAIN is on, the GAIN has an effective range of -40.0 dB
to +6.0 dB.
1.
In the fader module section, press [SEL] to select the
desired channel.
2.
In the CHANNEL EDIT section, press the [COMP] button.
The COMPRESSOR screen appears.
When LIMITER is selected as the compressor type for AUX, MTX,
or MAIN, LIMITER is displayed in the title bar.
For information on how change the type, refer to “Changing
between COMPRESSOR/LIMITER” (p. 52).
COMPRESSOR screen
1
2
3
4
5
1
2
3
4
5
6
Accessing the COMPRESSOR screen
