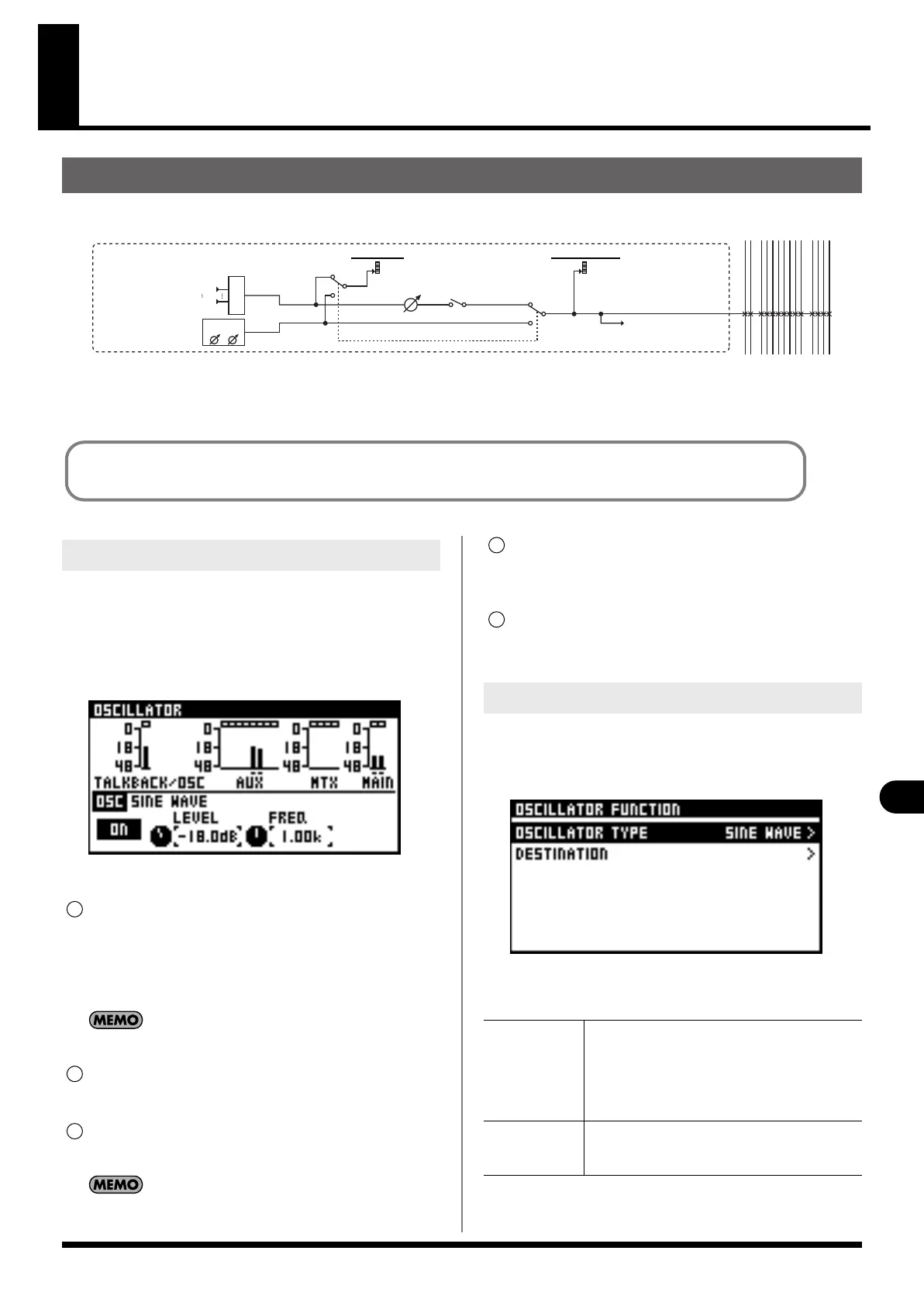

Oscillator
Oscillator
fig.TB-OSCFlow.eps
Oscillator is a function that generates a pink noise, white noise, or sine wave, and sends it to an AUX, MTX, MAIN L/R, or the output
patchbay. This is useful when you need to measure the acoustical response of a hall, or when checking the connections of external devices.
.
About oscillator
MAIN
LR
AUX
12345678
LR 12345678
MAIN AUX
MTX
1234
1234
MTX
TALKBACK / OSC
LEVEL
OSC ON
OSC ON
TA LK BA CK
ON
TALKBACK / OSCILLATOR
TO OUTPUT PATCHBAY
LEVELFREQ
OSC
MIC
SELECT
TALKBACK / OSC OUT
INPUT 1
INPUT 16
You can output either the oscillator or talkback (described in the previous chapter), but not both. When both are turned
on, the oscillator is output.
You use the OSCILLATOR screen to make the settings for
oscillator.
1.
In the DISPLAY section, press [SETUP].
2.
At the SETUP screen, select “OSCILLATOR“ and press
[ENTER].
The OSCILLATOR screen is displayed.
Meter display
These indicates the level of talkback/oscillator and of AUX,
MTX, and MAIN.
Symbols are displayed for the output destination for
oscillator.
Talkback and the oscillator share the same output destination.
Output destination
This shows the destination for oscillator.
ON/OFF button
This button turns the oscillator on/off.
You can assign oscillator on/off to a USER button.
FREQ
This adjusts the sine-wave frequency in a range of 20 Hz to
20 kHz.
LEVEL
This adjusts the output level of the oscillator in a range of -Inf
dB to 0.0 dB.
1.
Access the OSCILLATOR screen.
2.
Press [FUNC] to access the OSCILLATOR FUNCTION
screen.
The following functions are available at the OSCILLATOR
FUNCTION screen.
OSCILLATOR screen
1
2
3
OSCILLATOR FUNCTION screen
OSCILLATOR
TYPE
This selects from among the following choices the
type of signal output by the oscillator:
• PINK NOISE
• WHITE NOISE
•
SINE WAVE
DESTINATION This selects the bus you want to use as the
destination for oscillator. Talkback and the oscillator
share the same output destination.
4
5
