97
REAC applications and settings
REAC applications and settings

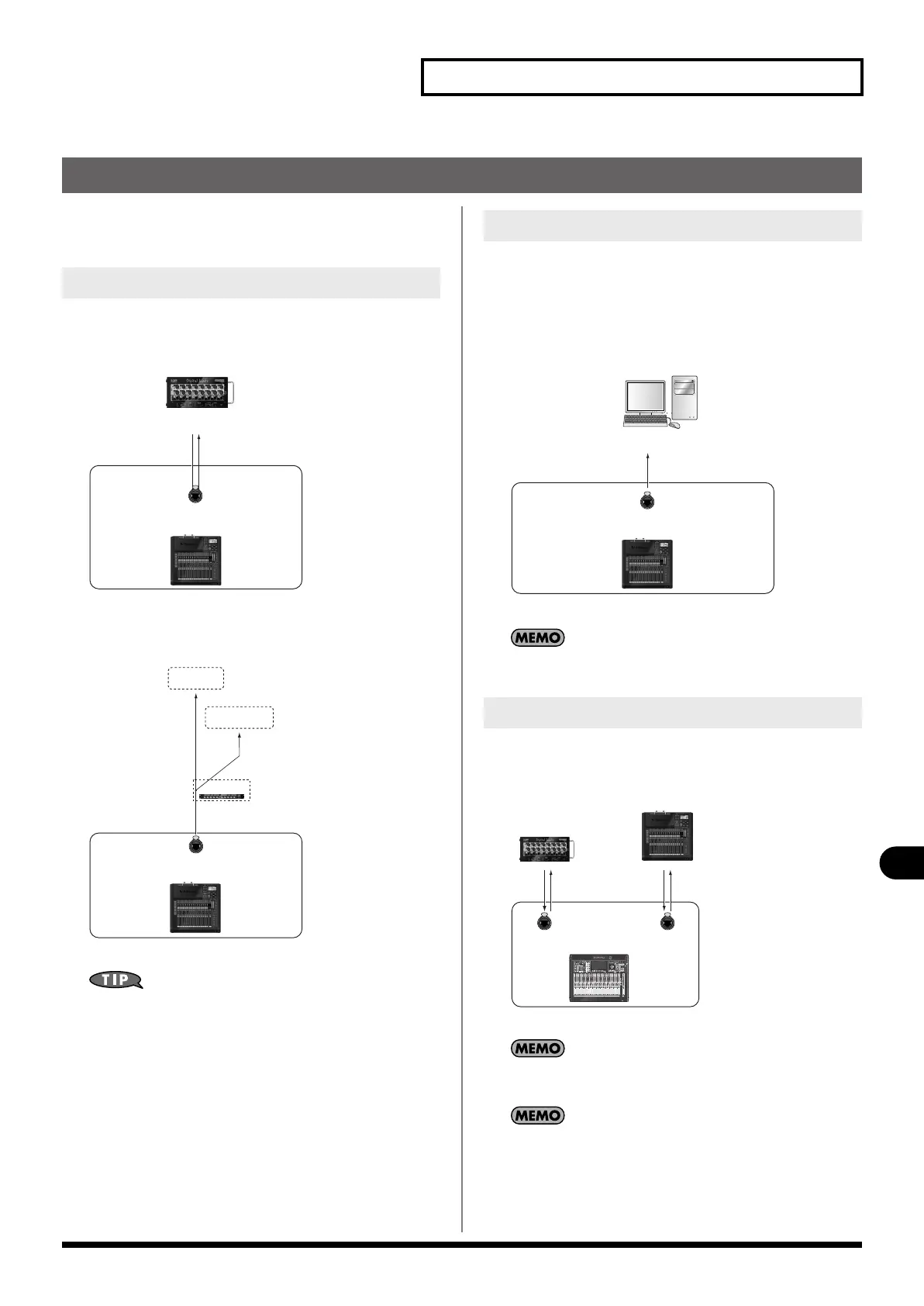

REAC connection examples
Here we show some examples of REAC setups and
connections.For details on REAC settings for the M-200i, refer to
“REAC settings” (p. 98).
Set the M-200i's REAC port to be the REAC master.
• In this example, the REAC port uses input and output from
the stage.
• In this example, the REAC port is used for splitting to a
monitor console or broadcast console.
To split the FOH inputs as analog audio signals or AES/EBU format,
an S-4000S in which output modules (SO-DA4 or SO-AES4) have
been installed can be used. This allows up to 40 channels of analog
audio signals (SO-DA4) or in AES/EBU format (SO-AES4).
Set the M-200i's REAC port to be the REAC master (p. 98).
• You can use a REAC driver with SONAR DAW software to
record from the M-200i's REAC port to a computer.
For details, refer to the following website:
http://www.roland.com/professional/
The M-200i's REAC port connected to a computer must be a
REAC master.
You can set the M-200i to the stage and send its input or its
output mix to an FOH console.
Set the M-200i's REAC port to SLAVE (p. 98).
The preamp gain for the M-200i cannot be controlled from the
FOH console.
The sampling frequency of the FOH console must match the
sampling frequency of the M-200i.
FOH console setup
FOH CONSOLE
REAC
MASTER
SLAVE
S-1608
FOH CONSOLE
REAC SPLITTER
REAC
MASTER
To Monitor
To Broadcast
Recording to a computer
Submixer setup
FOH CONSOLE
REAC
MASTER
Firewire
(IEEE1394)
to Ethernet connector
PC
FOH CONSOLE
REAC A REAC B
MASTER MASTER
SLAVE
S-1608
SLAVE
M-480
M-200i_e.book 97 ページ ２０１３年１月１６日 水曜日 午後４時９分
