C
ONFIGURING
THE
S
WITCH
3-218
• Access Mode – Sets the access mode of the profile; either permit or
deny.
• Current Multicast Address Range List – Lists multicast groups
currently included in the profile. Select an entry and click the Remove
button to delete it from the list.
• New Multicast Address Range List – Specifies multicast groups to
include in the profile. Specify a multicast group range by entering a
start and end IP address. Specify a single multicast group by entering
the same IP address for the start and end of the range. Click the Add
button to add a range to the current list.
Web – Click IGMP Snooping, IGMP Filter Profile Configuration. Select
the profile number you want to configure, then click Query to display the
current settings. Specify the access mode for the profile and then add
multicast groups to the profile list. Click Apply.

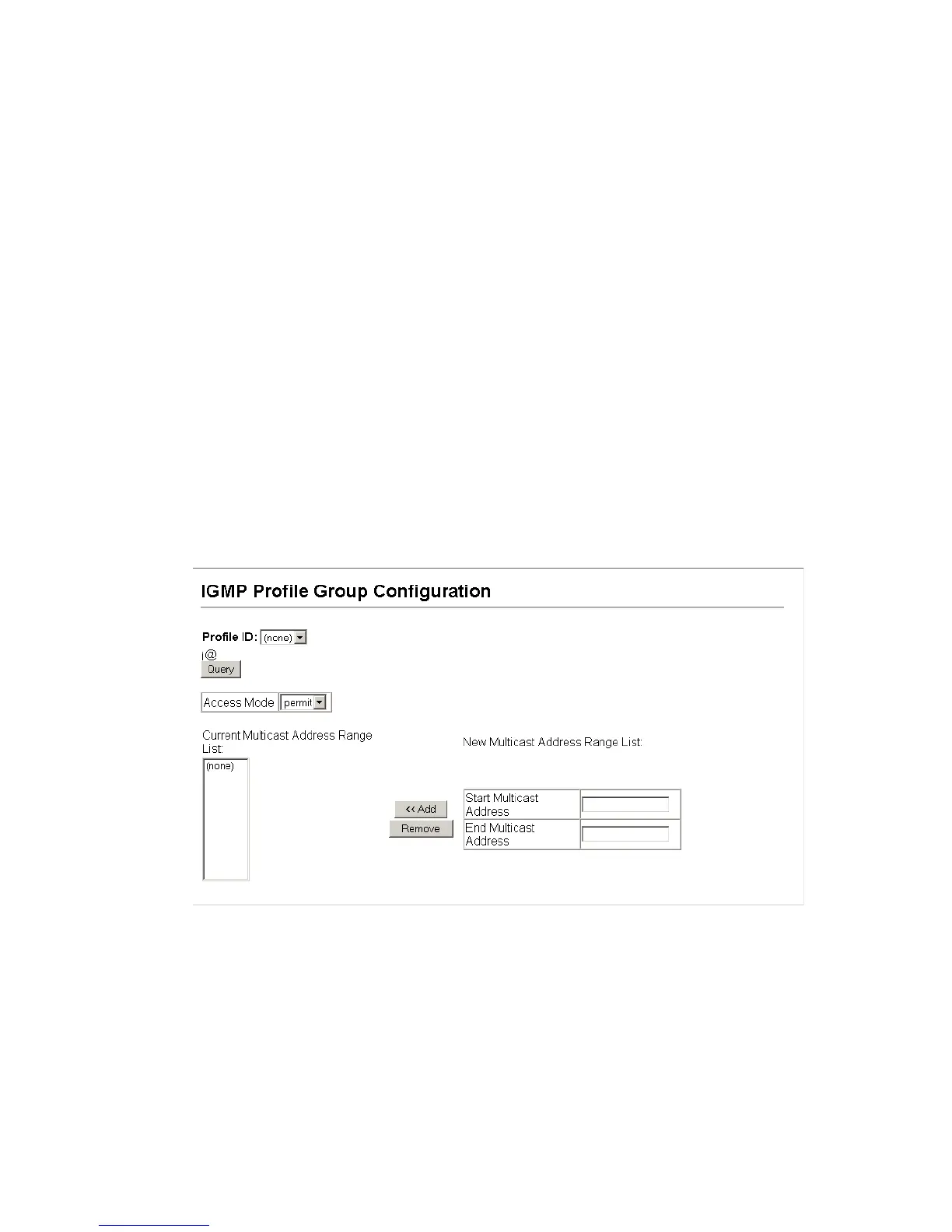

Figure 3-99. IGMP Profile Group Configuration
