6-1
SECTION 6
REPAIR PARTS LIST
6-1. EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
CND : Canadian model
EE : East European model
NE : North European model
RU : Russian model
HK : Hong Kong model
AUS : Australian model
CN : Chinese model
BR : Brazilian model
JE : Tourist model
TW : Taiwan model
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E

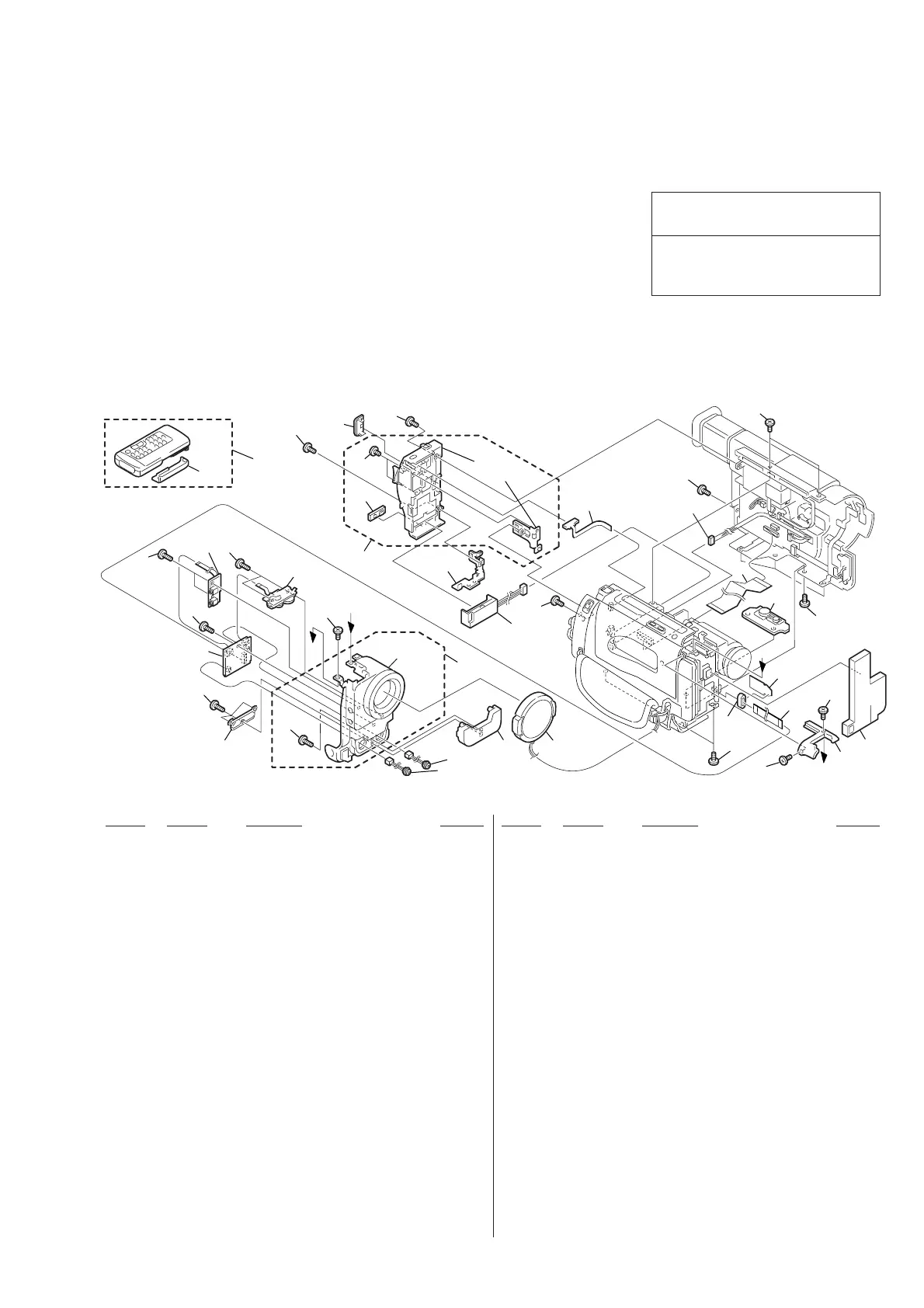

6-1-1. FRONT PANEL (N) AND BATTERY PANEL (P) BLOCK ASSEMBLY
a
a
b
b
Note
not
supplied
not
supplied
MIC901
MIC902
1
2
3
3
3
37
8
9
10
11
12
13
14
15
16
17
18
19
25
24
4
5
6
3
20
21
4
4
4
4
4
4
4
4
4
22
23
Note: the TR models do not have the harness
(DP-74 or DP-75) shown by Note.
1 X-3949-374-1 GRILLE (N) ASSY, MICROPHONE
(TRV103/TRV110/TRV110E/TRV110P/TR7000/TR7000E/TR7100E)
1 X-3949-375-1 GRILLE (N3) ASSY, MICROPHONE
(TRV203/TRV210/TRV210E/TRV310/TRV310E/TRV310P/TRV315)
2 X-3949-367-1 PANEL (N) ASSY, FRONT
(TRV103/TRV110/TRV110E:E,HK,AUS,CN,JE/TRV110P/TR7000)
2 X-3949-368-1 PANEL (N) ASSY, FRONT
(TRV203/TRV210/TRV210E:CN/TRV310:US,HK,E,JE/
TRV310E:E,HK,AUS,CN,JE/TRV310P/TRV315)
2 X-3949-369-1 PANEL (N) ASSY, FRONT
(TRV110E:AEP,UK,EE,NE,RU/TR7000E/TR7100E)
2 X-3949-370-1 PANEL (N) ASSY, FRONT
(TRV210E:AEP,UK/TRV310E:AEP,UK)
2 X-3949-417-1 PANEL (N) ASSY, FRONT (TRV310:TW)
3 3-948-339-61 TAPPING
4 3-968-729-01 SCREW (M2), LOCK ACE, P2
5 X-3949-373-1 COVER (N) ASSY, MN
6 A-7073-869-A MA-354 (I) BOARD, COMPLETE
(TRV103/TRV110/TRV110E/TRV110P)
6 A-7073-920-A MA-357 (I) BOARD, COMPLETE
(TR7000/TR7000E/TR7100E)
6 A-7073-925-A MA-355 (I) BOARD, COMPLETE
(TRV203/TRV210/TRV210E/TRV310/TRV310E/TRV310P/TRV315)
7 1-673-118-21 FP-76 FLEXIBLE BOARD
8 1-418-273-11 SWITCH BLOCK, CONTROL(MF-9500)
9 1-694-384-11 TERMINAL BOARD, BATTERY
10 3-053-723-01 SHEET METAL (LOWER), STRAP
11 X-3949-390-1 PANEL ASSY (P), BATTERY
(EXCEPT:TRV110:BR)
11 X-3949-512-1 PANEL ASSY (P), BATTERY (TRV110:BR)
12 3-987-656-01 LID, JACK
13 3-968-729-61 SCREW (M2X3), LOCK ACE, P2
14 3-975-752-01 LID (BT), CPC
15 1-672-663-21 FP-49 FLEXIBLE BOARD
16 1-783-240-11 CABLE, FLEXIBLE FLAT (FFC-236)
17 3-987-717-01 SCREW
18 3-053-899-01 CUSHION (N)
19 1-673-119-11 FP-77 FLEXIBLE BOARD
20 3-053-604-11 CABINET (S), SHOE
21 X-3949-376-1 CAP (N) ASSY, LENS
22 3-742-854-01 LID, BATTERY CASE (for RMT-814)
23 1-475-141-61 COMMANDER, REMOTE (RMT-814)
24 1-469-431-11 BEAD, FERRITE
* 25 3-055-380-01 SHEET, FERRITE FIXED
MIC901 1-542-312-11 MICROPHONE (L)
MIC902 1-542-312-11 MICROPHONE (R)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
