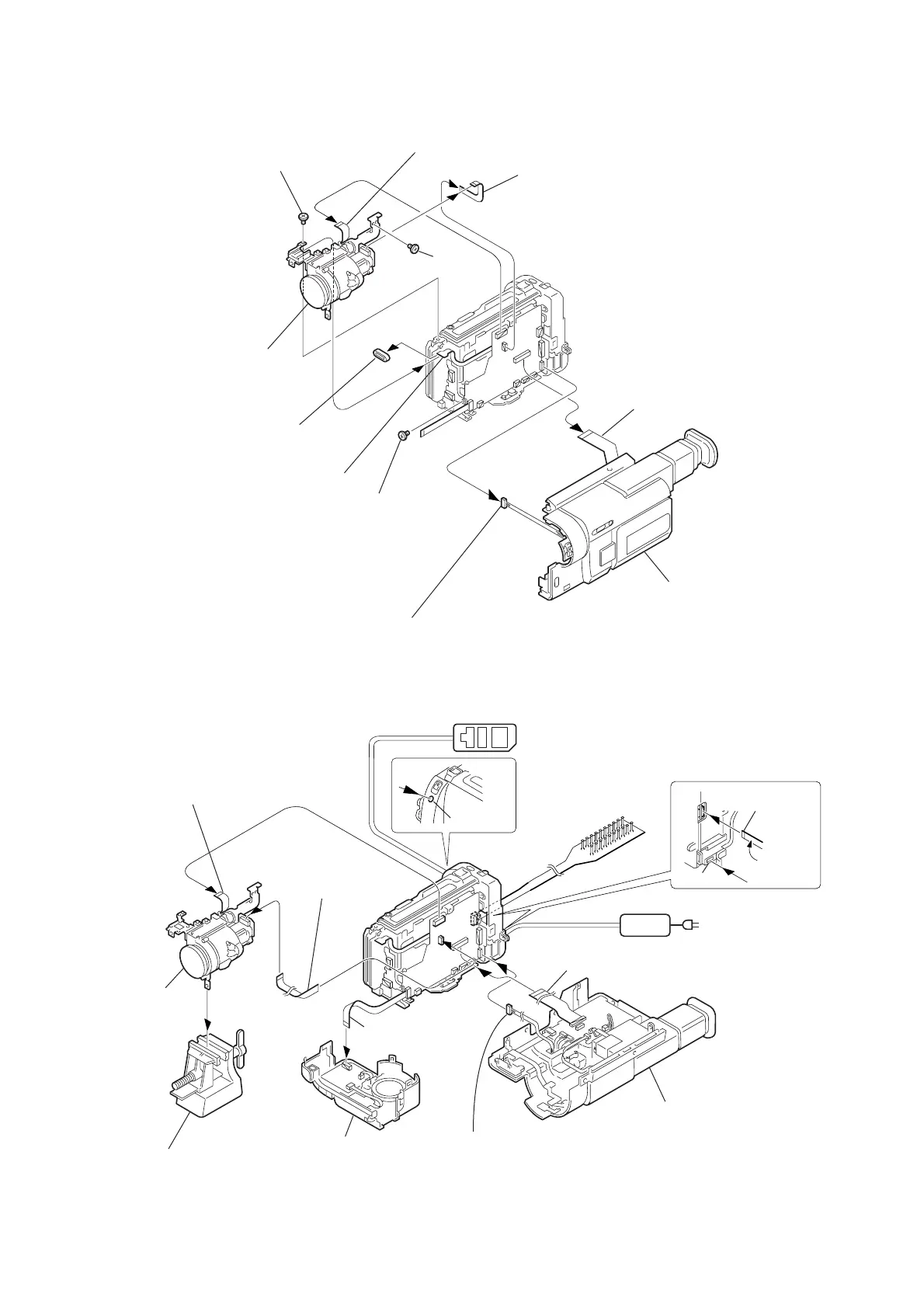

Sony DCR-TRV103 - 2-9. LENS BLOCK

2-9
VC-213
Board
VC-213
Board
LANC jack
5 Screw (M2 × 3)
6 Screw
(M2
× 3)
7 Screw (M2 × 3)
!º Flexible board (from LENS block) (24P)
Flexible board
(from LENS block) (24P)
!¡ LENS block
1 FFC-236 flexible flat cable (50P)
AC POWER
ADAPTOR
AC IN
DC IN
CPC-13 jig
Adjustment remote
commander (RM-95)
4 FP-54 flexible board (16P)
8 FP-45 flexible board (8P)
9 Ferrite bead
CPC-13 jig
(J-6082-443-A)
FP-77 flexible board
(22P)
Extension cable
(J-6082-357-A) (16P)
LENS block
Base
(Fix the lens block using a vise or the like.)
Cabinet (R) assembly
3 Cabinet (R) assembly
FFC-236 flexible
flat cable (50P)
Insulater
side
Panel (N) (front) assembly
2 DP-74 harness (10P) (2.5 INCH LCD MODEL)
DP-75 harness (10P) (3.0/3.5 INCH LCD MODEL)
Note
DP-74 harness (10P) (2.5 INCH LCD MODEL)
DP-75 harness (10P) (3.0/3.5 INCH LCD MODEL)
Note
Note: the TR models do not have
the harness (DP-74 or DP-75
)
shown by Note.
Note: the TR models do not have
the harness (DP-74 or DP-75
)
shown by Note.
[LENS BLOCK CHECK SERVICE POSITION]
2-9. LENS BLOCK
