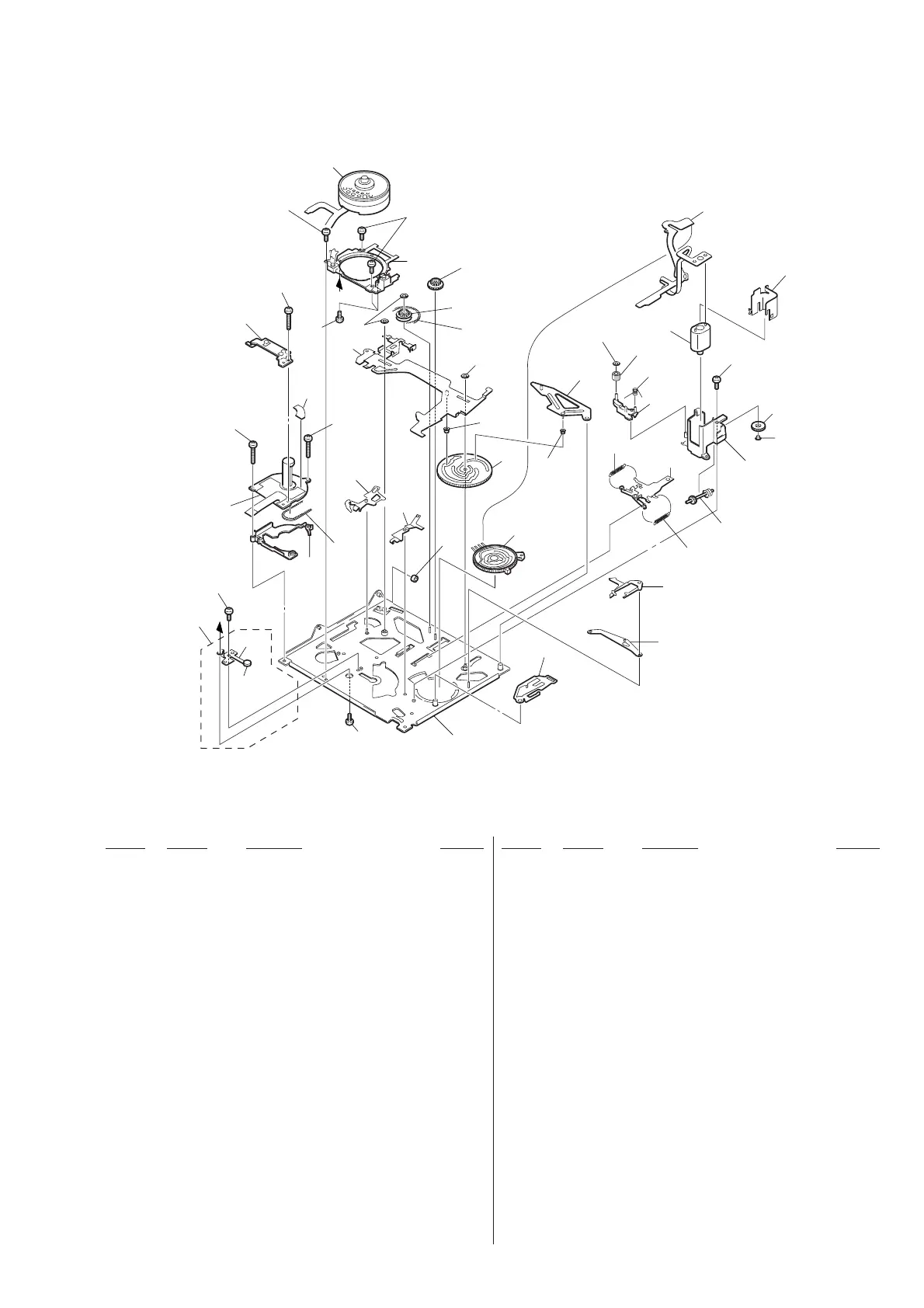

6-1-13. MECHANISM CHASSIS ASSEMBLY
809
809
810
808
813
812
811
814
817
821
823
824
825
826
827
819
832
833
834
801
838
802
804
803
805
805
805
837
836
835
807
S901
M901
M902
M903
820
815
828
822
818
808
814
813
815
809
816
829
831
830
not
supplied
a
a
not
supplied
801 X-3947-343-1 GROUND (IM) ASSY, SHAFT
802 3-965-550-02 SCREW (M1.7X1.6)
803 1-672-542-11 FP-38 FLEXIBLE BOARD
804 3-053-986-01 SPACER (E), CAPSTAN
805 3-965-549-11 SCREW (M1.4X 6.7)
807 3-971-644-02 SLIDER (2), M
808 X-3947-895-1 SCREW ASSY, DRUM ATTACHED
809 3-947-503-01 SCREW (M1.4X2.5)
810 A-7040-494-A BASE BLOCK ASSY, DRUM
811 3-965-527-01 GEAR, CHANGE
812 3-965-544-01 GEAR, RELAY
813 3-331-007-21 WASHER (TR7000E:AEP)
814 3-965-546-01 BELT, TIMING
815 3-965-533-01 ROLLER, LS
816 3-965-528-01 GEAR, CAM
817 1-657-784-11 FP-220 FLEXIBLE BOARD
818 3-965-529-01 PLATE, REGULATOR, TENSION
819 3-965-536-01 SPRING (LIMITTER ARM T), COILO
820 X-3945-388-1 SLIDER ASSY, GL
821 3-965-532-21 ARM, LS
822 3-965-535-01 SPRING (LIMITTER ARM S), COIL
823 3-965-542-01 SHIELD, MOTOR
824 3-965-539-01 GEAR (A)
825 3-965-538-01 SLEEVE, MOTOR HOLDER
826 3-965-540-01 HOLDER, MOTOR
827 3-965-541-01 SHAFT, WORM
828 3-321-393-01 WASHER, STOPPER (TR7000E:AEP)
829 3-965-724-01 SPRING (RETURN, HC), TORSION
830 A-7040-423-A ROLLER BLOCK ASSY, HC
831 X-3945-407-1 ARM ASSY, HC ROLLER
832 3-965-531-01 ARM, GL
833 3-965-530-01 PLATE (2), REGULATOR, TENSION
834 X-3949-382-4 CHASSIS ASSY (E), MECHANICAL
835 3-965-526-02 ROLLER, LS GUIDE
836 3-965-547-01 ARM, HC DRIVING
837 3-965-534-01 PLATE, PRESS, PINCH
838 3-974-320-02 GROUND (IM), SHAFT
M901 A-7048-904-A DRUM BLOCK ASSY (DKH-01A-R)
M902 8-835-635-01 MOTOR, DC SCE12A/C-NP (CAPSTAN)
M903 X-3945-401-1 MOTOR ASSY, DC (LOADING)
S901 1-762-436-15 SWITCH, ROTARY (ENCODER)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
