DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E
4-70

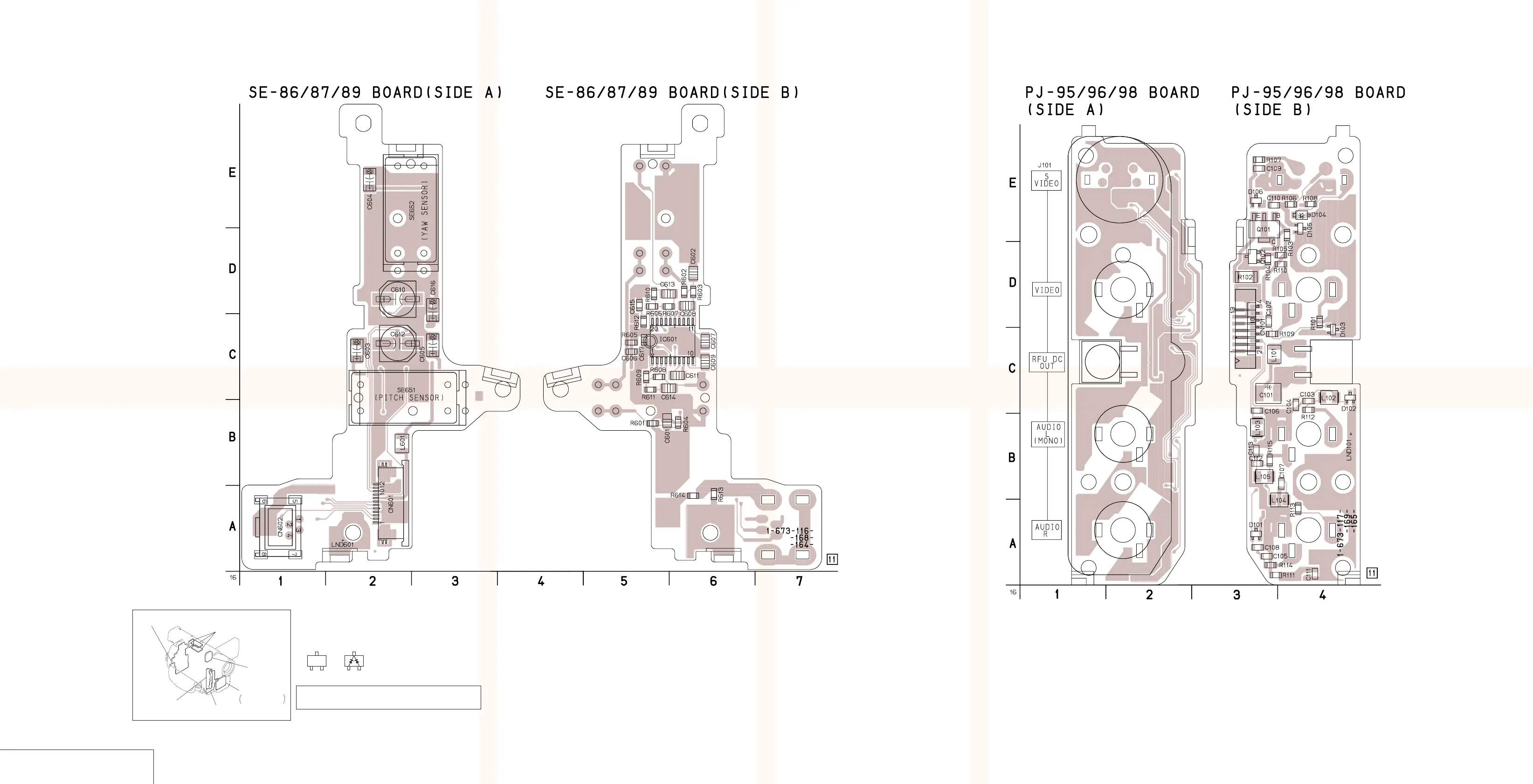

SE-86/87/89 (STEADY SHOT), PJ-95/96/98 (AV IN/OUT) PRINTED WIRING BOARDS
— Ref. No. SE-86, PJ-95 Board; 7,000, SE-87, PJ-96 Board; 8,000, SE-89, PJ-98 Board; 9,000 Series —
SE-86/87/89 BOARD
C601 B-5
C602 D-6
C603 C-2
C604 E-2
C605 C-3
C606 C-5
C607 C-6
C608 D-6
C609 C-6
C610 D-2
C611 C-6
C612 C-2
C613 D-6
C614 C-5
C615 D-5
C616 D-3
CN601 A-2
CN602 A-1
IC601 C-6
L601 B-2
R601 B-5
R602 D-6
R603 D-6
R604 B-6
R605 C-5
R607 D-5
R608 D-5
R609 C-5
R610 D-5
R611 C-5
R612 C-5
R613 A-6
R614 A-6
SE651 B-2
SE652 E-2
PJ-95/96/98 BOARD
C101 C-3
C102 D-3
C103 C-4
C104 C-4
C105 A-3
C106 C-3
C107 B-4
C108 A-3
C109 E-3
C110 E-3
C111 A-4
C112 B-3
C113 B-3
CN101 C-3
D101 A-3
D102 C-4
D103 C-4
D104 E-4
D105 E-4
D106 E-3
D107 E-4
J001 E-1
L101 C-3
L102 C-4
L103 B-3
L104 A-4
L105 B-3
Q101 E-3
Q102 D-3
R101 D-4
R102 D-3
R103 E-4
R104 D-3
R105 D-4
R106 E-4
R107 E-3
R108 E-4
R109 C-3
R110 D-4
R111 A-3
R112 C-4
R113 A-4
R114 A-3
R115 B-3
For printed wiring boards
• Chip parts
Transistor Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.
STEADY SHOT
SE-86/87/89
/
AV IN/OUT
PJ-95/96/98
C
BE
3
21
4-71 4-72
CD-212, 213
(CCD IMAGER)
MA-354, 355, 357
STEREO MIC AMP,
LASER LINK
PJ-95, 96, 98
(AV IN/OUT)
SE-86, 87, 89
(STEADY SHOT)
DD-117
(DC/DC CONVERTER)
VF-126
(COLOR EVF)
Note : This series use the three different types of printed wiring board as shown below.
DCR-TRV103/TRV110/TRV110E/TRV110P : SE-86 : 1-673-116-
DCR-TRV203/TRV210/TRV210E/TRV310/TRV310E/TRV310P/TRV315 : SE-87 : 1-673-168-
DCR-TR7000/TR7000E/TR7100E : SE-89 : 1-673-164-
Note : This series use the three different types of printed wiring board as shown below.
DCR-TRV103/TRV110/TRV110E/TRV110P : PJ-95 : 1-673-117-
DCR-TRV203/TRV210/TRV210E/TRV310/TRV310E/TRV310P/TRV315 : PJ-96 : 1-673-169-
DCR-TR7000/TR7000E/TR7100E : PJ-98 : 1-673-165-
