DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E
For schematic diagram
• Refer to page 4-65 for printed wiring board.
4-15 4-16 4-17

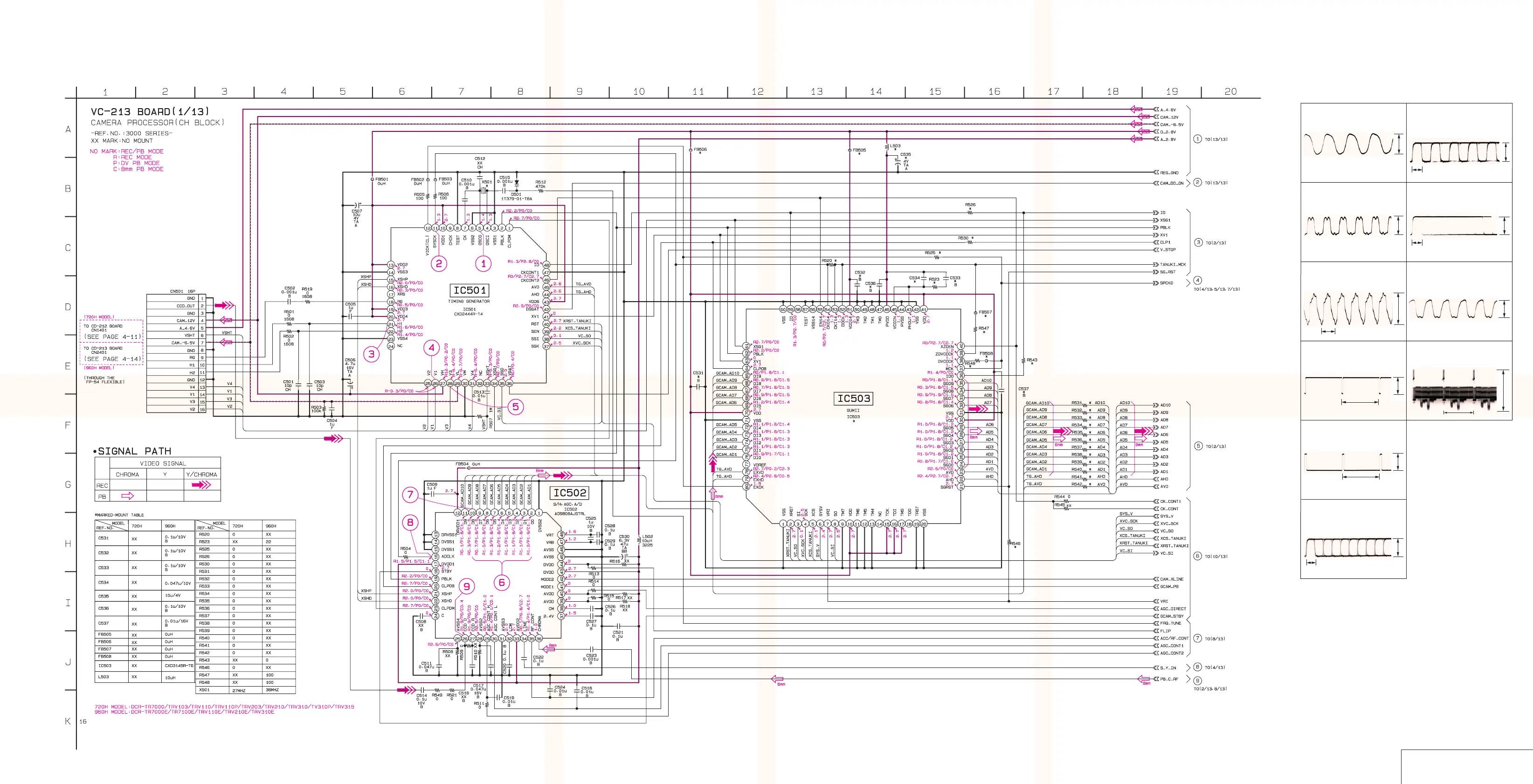

CAMERA PROCESSOR
VC-213 (1/13)
VC-213 BOARD (1/13)
2 IC501 !¡
CAMERA REC/PB
1 IC501 5
CAMERA REC/PB
3.0Vp-p
3.0Vp-p
NTSC: 1.2Vp-p
PAL: 0.9Vp-p
3 IC501 @¡
CAMERA REC
3.0Vp-p
NTSC: 74 nsec
PAL: 56 nsec
4 IC501 @§
CAMERA REC
H
7.0Vp-p
5 IC501 @•
CAMERA REC
H
7.0Vp-p
6 IC502 2 – 9
CAMERA REC/PB
NTSC: 74 nsec
PAL: 56 nsec
2.9Vp-p
7 IC502 !º
CAMERA REC
2.9Vp-p
7 IC502 !º PB
2.9Vp-p
NTSC: 13.5 MHz
PAL: 18.00 MHz
NTSC: 27.00 MHz
PAL: 36.00 MHz
9 IC502 @§
CAMERA REC
8 IC502 !§
CAMERA REC/PB
LINE REC

H
2.9Vp-p
NTSC: 13.50 MHz
PAL: 18.00 MHz
NTSC:74 nsec
PAL:56 nsec
NTSC: 74 nsec
PAL: 56 nsec


