2-12
CF-62
CF-63
CF-65
2 DP-74 harness (11P)
3 DP-74 harness (6P)
4 Control switch block
(PS-9500) (8P)
3 Control switch block
(PS-9500) (8P)
5 FFC-256
flexible flat cable (4P)
6 Speaker harness (2P)
4 Speaker harness (2P)
7 Five tapping
screws (B2 × 5)
4 Two tapping
screws (B2 × 5)
!º Two tapping
screws (B2 × 5)
7 Four tapping
screws (B2 × 5)
5 Claws
6 Lithium battery retainer (92)
6 Seven tapping
screws (B2 × 5)
8 CF-62 board
9 CF-65 board
8 CF-63 board
9 Retainer (93), speaker
!º Speaker
1 FP-62 flexible board (8P)
1 FP-62 flexible board (8P)
8 FP-94 flexible board (26P)
!¡ Indication LCD block assembly
Remove it in the directin
of the arrow.
1 FP-62 flexible board (8P)
5 FFC-256 flexible flat cable (4P)
(B/W EVF MODEL)
5 FP-47 flexible board (20P)
(COLOR EVF MODEL)
2 FP-47 flexible board (20P)
!º Speaker
9 Retainer (93), speaker
2 DP-75 harness (11P)
7 DP-75 harness (6P)
3 Control switch block
(PS-9500) (8P)
Note : When attaching it.
Align the switch position
as shown.
Note : When attaching it.
Align the switch position
as shown.
Note : When attaching it.
Align the switch position
as shown.

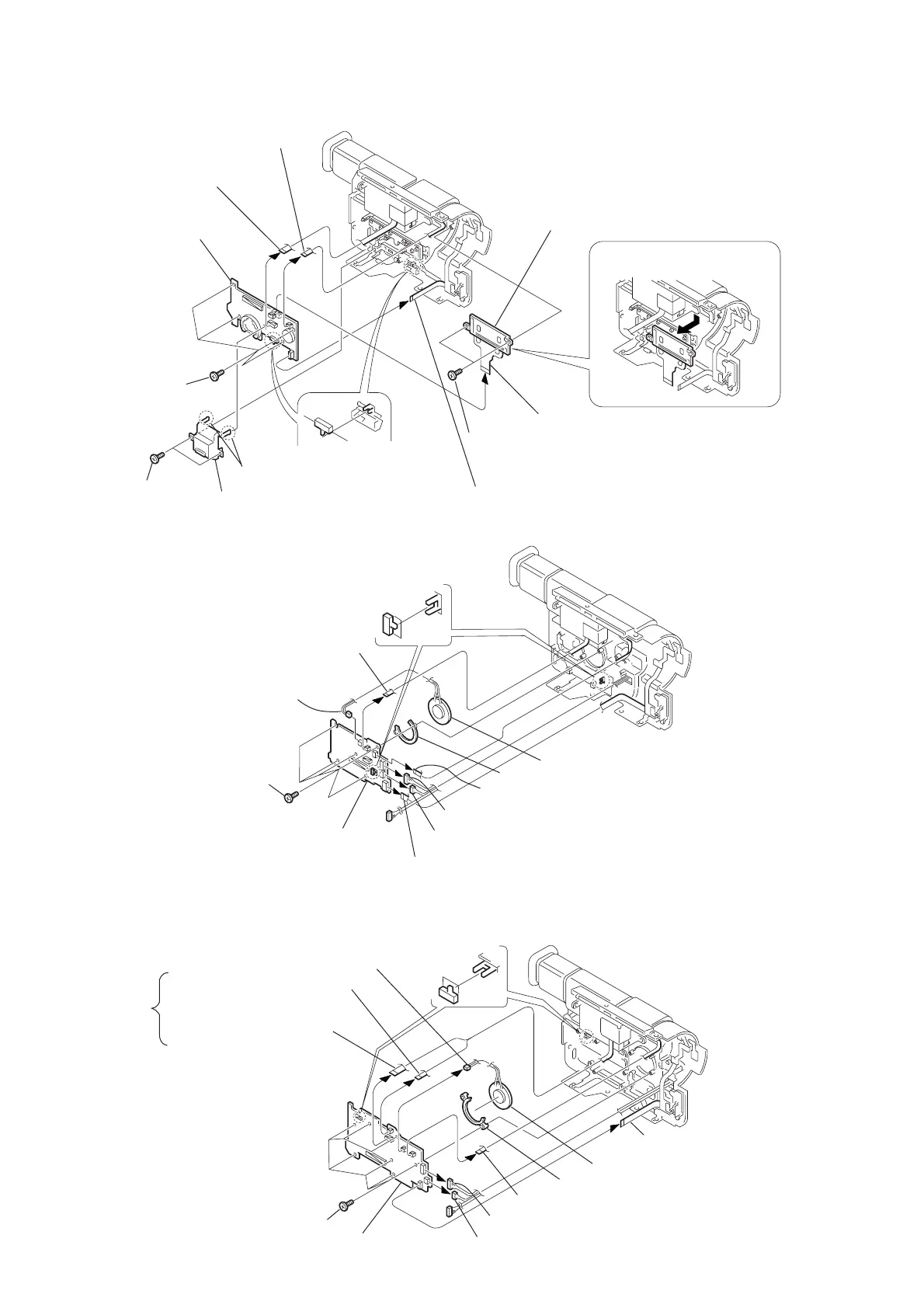

2-11.CF-65 BOARD (TR MODEL)
2-12.CF-62 BOARD (2.5 INCH LCD MODEL)
2-13.CF-63 BOARD (3.0/3.5 INCH LCD MODEL)
