6-11

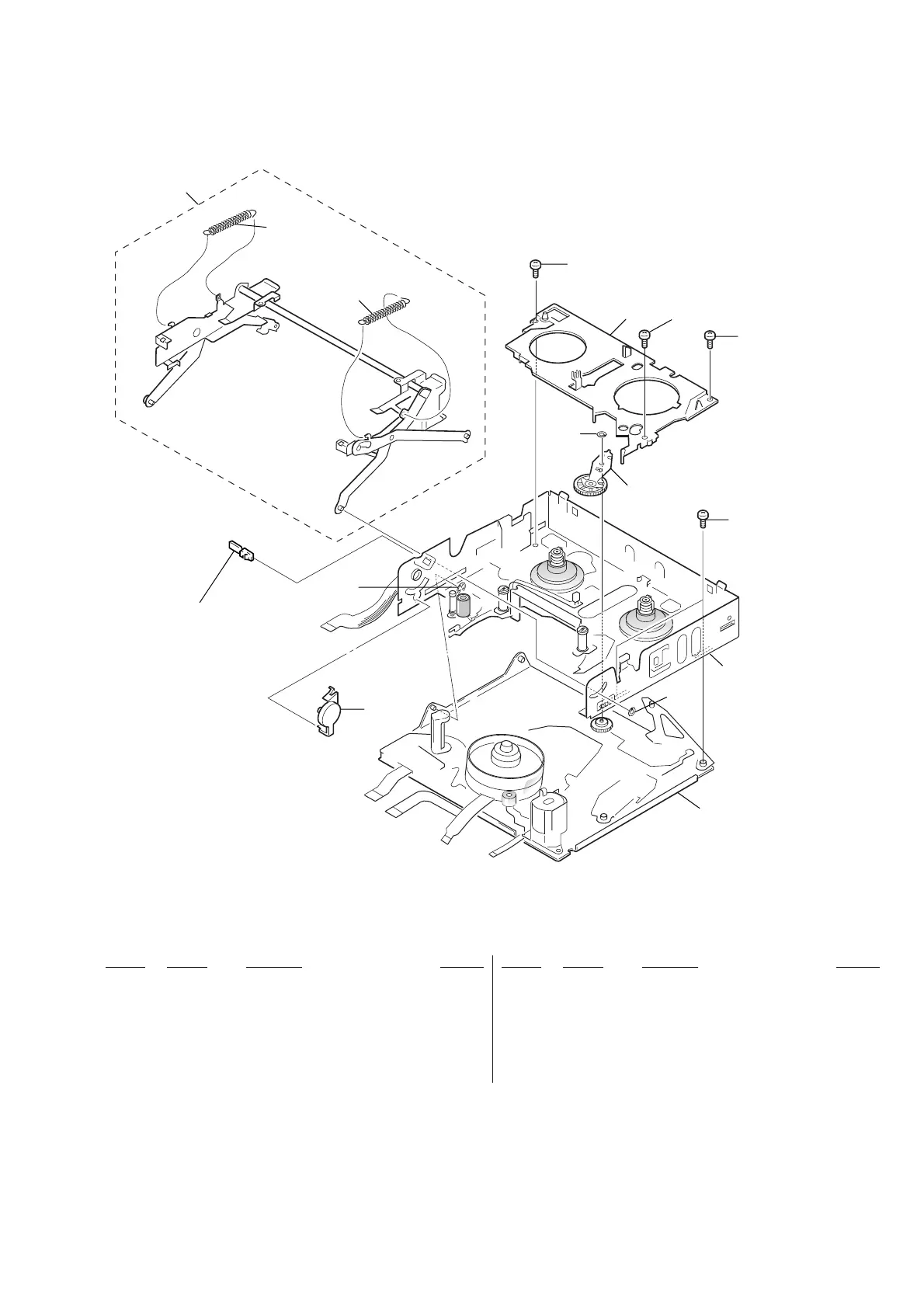

6-1-11. CASSETTE COMPARTMENT ASSEMBLY
703
704
706
708
705
711
709
707
708
709
701
702
710
LS CHASSIS ASSEMBLY
(See page 6-12)
MECHANISM CHASSIS
ASSEMBLY
(See page 6-13)
708
701 A-7040-421-A DAMPER ASSY
702 7-624-102-04 STOP RING 1.5, TYPE -E
703 X-3949-153-2 CASSETTE COMPARTMENT ASSY
704 3-965-587-03 SPRING(POWER TENSION),TENSION
705 3-989-479-01 RETAINER (2), GOOSENECK
706 3-973-268-01 SPRING(POWER TENSION),TENSION
707 X-3949-383-2 GEAR ASSY (E), GOOSENECK
708 3-947-503-01 SCREW (M1.4X2.5)
709 3-727-176-01 WASHER, STOPPER
710 3-971-076-01 FASTENER, D
711 3-976-055-01 SCREW (M1.4X1)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
To Next Page
