Sony DCR-TRV103 User Manual

DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E
DD-117 BOARD
C801 E-8
C802 E-8
C803 D-7
C804 E-7
C805 D-7
C806 E-7
C807 D-7
C808 D-8
C809 D-7
C810 D-8
C811 D-7
C812 D-8
C813 D-7
C814 E-3
C815 C-8
C816 E-4
C817 E-4
C818 F-8
C819 C-7
C820 C-7
C821 C-7
C822 E-4
C823 C-8
C824 C-7
C825 B-7
C826 D-4
C827 E-7
C828 E-6
C829 E-6
C830 D-7
C831 E-7
C832 B-7
C833 B-7
C834 C-8
C836 B-7
C837 C-7
C838 C-7
C840 D-3
C841 B-8
C842 A-1
C843 B-8
C844 A-8
C846 B-8
C847 B-2
C848 B-3
C849 A-7
C850 A-8
C851 B-8
C852 B-3
C853 B-3
C854 B-8
C855 A-7
C856 E-7
C857 A-7
C860 A-1
C861 A-2
C862 A-6
C863 B-1
C864 B-2
C865 A-1
C866 A-1
C867 A-2
C868 A-1
C869 A-1
C870 E-7
C871 B-6
C872 F-8
C873 A-6
C874 A-3
C875 A-7
C876 D-2
C877 D-2
C878 B-7
CN801 C-1
CN931 C-9
CN933 A-9
CN934 D-4
CN935 G-3
CN936 F-1
D806 B-7
D809 B-2
D810 B-7
D812 B-7
D813 C-8
D814 F-9
D815 F-8
D816 E-8
D817 C-8
D818 D-6
D819 E-7
D820 B-2
D821 B-2
D822 F-8
D932 G-7
D933 F-8
D934 G-7
D935 F-8
D936 G-7
D938 E-4
FB931 D-4
FB932 E-4
FB933 D-4
IC801 D-7
IC802 E-7
L801 D-2
L802 D-3
L803 D-3
L804 E-4
L805 B-3
L806 C-3
L807 C-2
L808 B-3
L809 C-3
L810 B-8
L811 B-8
L812 B-8
L813 B-8
L814 A-7
L815 A-7
L816 B-8
L817 A-8
L818 A-7
L819 A-8
L820 D-3
L821 A-1
L822 A-6
LF801 D-2
PS801 F-8
PS802 F-7
PS803 F-7
PS804 F-7
PS805 F-7
PS806 F-7
PS807 F-8
Q801 F-8
Q803 E-8
Q804 F-8
Q805 F-8
Q806 C-6
Q807 C-8
Q808 C-8
Q809 B-7
Q810 C-7
Q812 C-8
Q813 C-7
Q814 C-7
Q815 C-7
Q817 C-7
Q819 D-4
Q820 E-7
Q823 B-7
Q824 E-7
Q826 A-3
Q827 A-7
Q828 B-1
Q829 A-1
Q830 B-2
Q831 A-2
Q832 B-1
Q833 A-7
Q834 B-1
Q835 A-3
Q836 A-4
Q837 A-2
Q838 A-3
Q839 A-4
Q840 A-3
Q841 A-2
Q842 A-2
Q843 A-2
Q844 A-4
Q845 A-3
Q846 A-2
Q847 A-2
Q848 A-3
Q849 A-3
Q850 A-3
Q851 E-8
Q852 B-6
Q853 B-7
Q854 B-7
Q855 B-7
Q856 A-1
Q932 G-8
Q933 G-8
Q934 G-8
R801 E-7
R802 D-8
R803 D-8
R804 D-8
R805 D-7
R806 E-7
R807 D-7
R808 D-8
R809 D-8
R810 D-7
R811 D-7
R812 D-7
R813 F-8
R814 D-8
R815 D-8
R816 D-8
R817 D-8
R818 D-7
R819 D-7
R820 D-8
R821 D-7
R822 E-8
R824 D-7
R825 D-8
R826 D-8
R827 E-8
R828 E-8
R829 D-7
R830 D-7
R831 F-8
R832 D-8
R833 D-7
R834 D-7
R835 D-8
R836 D-8
R837 D-7
R838 D-8
R839 C-7
R840 C-8
R841 C-8
R842 E-6
R843 C-7
R844 D-2
R845 D-6
R846 D-2
R847 E-7
R849 E-6
R850 E-6
R852 D-6
R853 D-6
R854 D-6
R859 E-7
R864 E-7
R865 B-7
R866 B-7
R867 E-7
R868 A-6
R870 A-3
R871 A-3
R872 B-2
R873 A-1
R874 B-1
R875 A-6
R876 B-1
R877 A-3
R878 A-7
R879 B-1
R880 B-1
R881 B-1
R882 B-1
R883 B-3
R884 B-4
R885 A-2
R887 B-3
R888 B-3
R889 A-2
R890 A-2
R891 A-3
R892 A-3
R893 A-3
R894 A-2
R895 A-1
R896 A-4
R897 A-4
R898 A-2
R899 A-2
R900 A-2
R901 A-1
R902 A-1
R903 A-3
R904 A-3
R905 A-3
R906 A-3
R907 A-3
R908 B-7
R910 B-7
R911 B-7
R912 B-7
R913 F-8
R914 D-7
R915 E-6
R916 A-2
R917 A-3
R918 A-6
R919 A-2
R920 A-2
R921 D-3
R922 D-2
R923 D-3
R924 B-1
R925 A-4
R926 C-9
R932 G-8
R933 F-2
R934 F-2
R935 F-2
R936 F-2
R937 F-2
R938 F-2
R939 F-2
R940 G-8
R941 G-8
R942 E-4
R943 G-7
R944 B-1
R945 B-1
T801 B-2
For printed wiring boards
• This board is four-layer print board. However, the pat-
terns of layers two and three have not been included
in the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
5
64
2
13

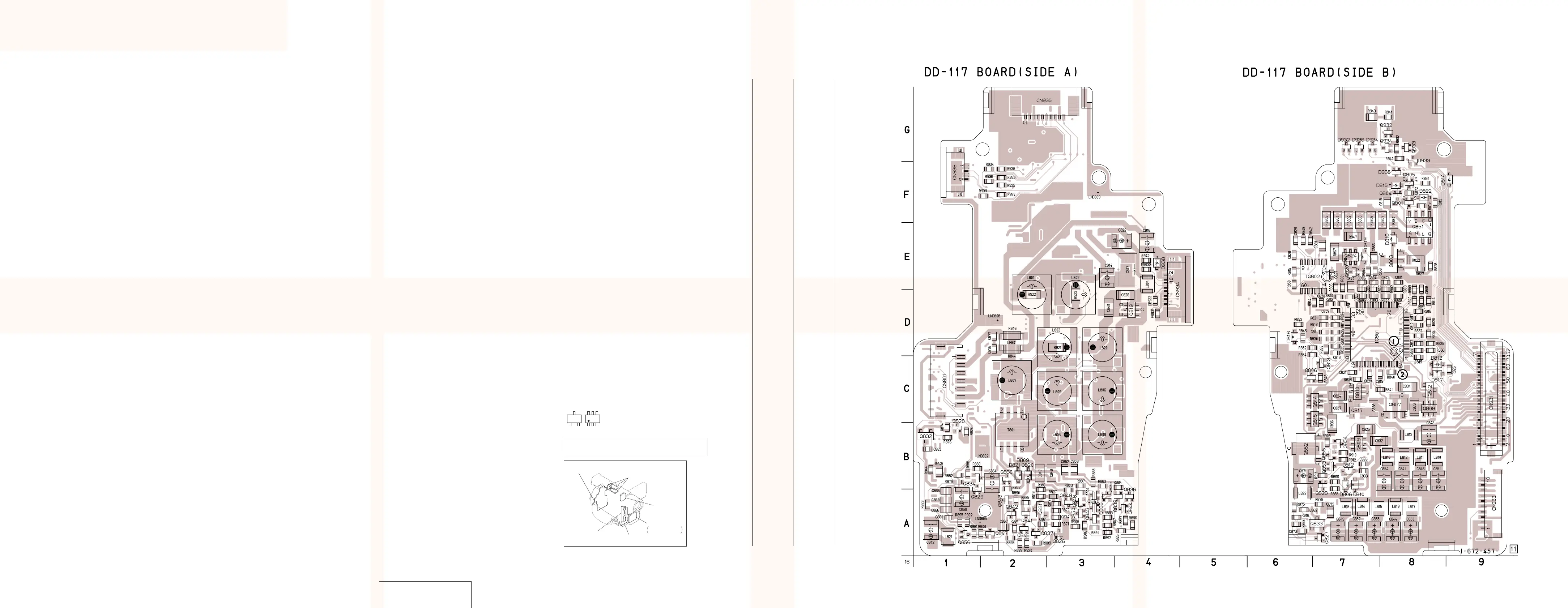

DD-117 (DC/DC CONVERTER) PRINTED WIRING BOARD
— Ref. No. DD-117 Board; 6,000 Series —
4-128 4-129
DC/DC CONVERTER
DD-117
CD-212, 213
(CCD IMAGER)
MA-354, 355, 357
STEREO MIC AMP,
LASER LINK
PJ-95, 96, 98
(AV IN/OUT)
SE-86, 87, 89
(STEADY SHOT)
DD-117
(DC/DC CONVERTER)
VF-126
(COLOR EVF)
4-130
DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E
