DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E

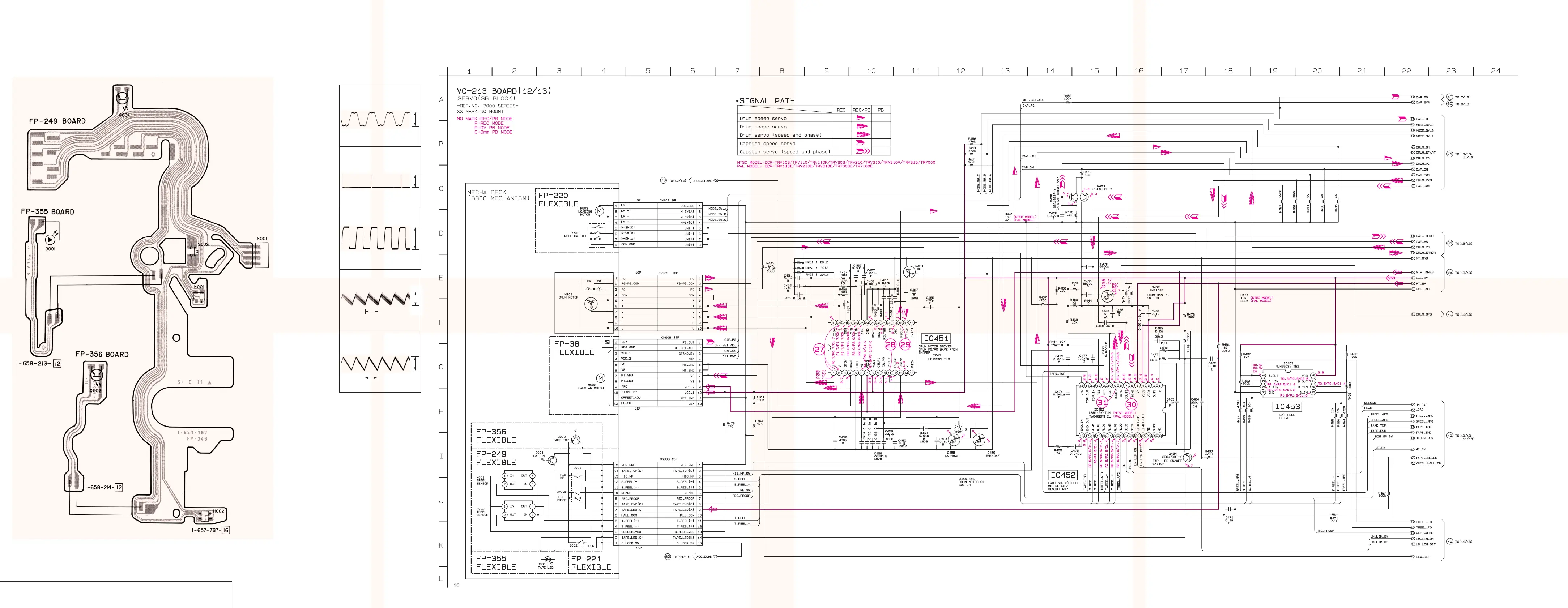

FP-249 (S/T REEL SENSOR), FP-356 (TOP SENSOR), FP-355 (TAPE LED) FLEXIBLE BOARD
— Ref. No. FP-249, 356, 355 FLEXIBLE board; 20,000 series —
SERVO
VC-213 (12/13)
/
S/T REEL SENSOR, TOP SENSOR, TAPE LED
FP-249, FP-356, FP-355
4-56 4-57 4-58
For schematic diagram
• Refer to page 4-65 for printed wiring board.
VC-213 BOARD (12/13)
CAMERA REC/PB
@• IC451 !¡

@ª IC451 !•

#¡ IC452 9
@¶ IC451 1,2,@ª
1.2Vp-p
NTSC : 180 Hz
PAL : 150 Hz
DV : 450 Hz
2.8Vp-p
2.8Vp-p
0.1Vp-p
NTSC : 30 Hz
PAL : 25 Hz
DV : 75 Hz
NTSC : 180 Hz
PAL : 150 Hz
DV : 450 Hz
10.3 µsec
#º IC452 7

0.1Vp-p
10.3 µsec
