6-5

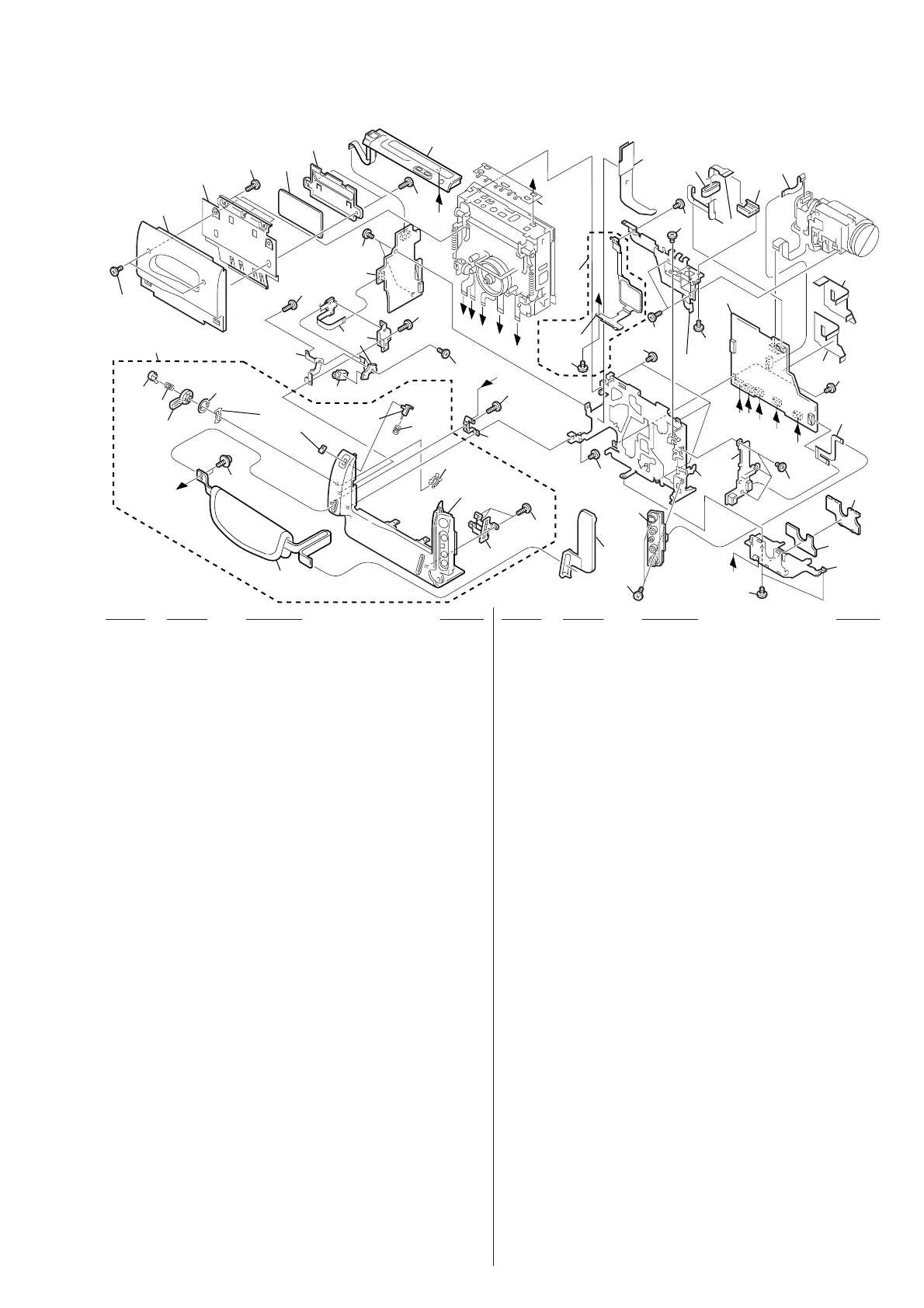

6-1-5. CABINET (L) BLOCK AND MAIN BOARDS ASSEMBLY
b
c
d
e
f
f
a
DD-117
Board
VC-213
Board
b
c
d
h
h
e
g
g
a
not
supplied
not
supplied
not
supplied
not
supplied
J001
not
supplied
Note
Note: AEP, UK, EE, NE, RU model onl
y
not
supplied
201
201
201
202
202
203
204
205
206
215
216
217
218
219
220
221
221
222
223
224
225
226
227
240
228
229
230
231
232
233
234
235
236
207
208
209
210
211
213
214
212
201
204
204
204
204
201
201
201
201
201
239
238
237
201 3-713-786-21 SCREW (M2X3)
202 3-968-729-01 SCREW (M2), LOCK ACE, P2
* 203 3-975-522-11 COVER, JACK
204 3-948-339-61 TAPPING
205 3-975-966-01 SHEET METAL (2), SS
206 3-949-192-01 HOLDER, STAND-BY KNOB
207 3-979-642-01 SPRING, COMPRESSION
208 3-052-815-01 BELT (ES), GRIP
209 3-679-362-11 SCREW
210 3-970-854-01 SPRING, STAND-BY
211 3-969-081-01 KNOB, STAND-BY
212 3-302-492-00 SPRING, COMPRESSION
213 3-960-566-01 BUTTON, S/S
214 X-3949-397-1 CABINET (L) ASSY
(EXCEPT:TRV110E/TRV210E/TRV310E/TR7000E/TR7100E)
214 X-3949-398-1 CABINET (L) ASSY
(TRV110E/TRV210E/TRV310E/TR7000E/TR7100E)
* 215 3-975-532-01 HOLDER, EL
216 1-475-619-11 SWITCH BLOCK, CONTROL (SS-8500)
217 A-7073-866-A DD-117 (V) BOARD, COMPLETE
(EXCEPT:TRV315/TR7000/TR7000E/TR7100E)
217 A-7073-917-A DD-117 (C) BOARD, COMPLETE
(TR7000/TR7000E/TR7100E)
217 A-7073-922-A DD-117 (VC) BOARD, COMPLETE (TRV315)
218 3-968-729-81 SCREW (M2), LOCK ACE, P2
219 X-3949-392-1 LID ASSY, CASSETTE
(TRV203/TRV210/TRV310:US/TRV315/TR7000)
219 X-3949-393-1 LID ASSY, CASSETTE
(EXCEPT:TRV203/TRV210/TRV310:US/TRV315/TR7000)
220 3-987-678-11 PLATE, CASSETE SHILED
(TRV110E:AEP,UK,EE,NE,RU/TRV210E:AEP,UK/
TRV310E:AEP,UK/TR7000E/TR7100E)
221 3-713-791-01 SCREW (M1.7X4), TAPPING, P2
(TRV110E:AEP,UK,EE,NE,RU/TRV210E:AEP,UK/
TRV310E:AEP,UK/TR7000E/TR7100E)
222 1-469-364-11 FILTER, EMI (CS)
(TRV110E:AEP,UK,EE,NE,RU/TRV210E:AEP,UK/
TRV310E:AEP,UK/TR7000E/TR7100E)
223 3-987-677-01 COVER (C), FERRITE
(TRV110E:AEP,UK,EE,NE,RU/TRV210E:AEP,UK/
TRV310E:AEP,UK/TR7000E/TR7100E)
224 1-475-617-51 SWITCH BLOCK, CONTROL (FK-8500)
(TRV110E:AEP,UK,EE,NE,RU/TRV210E:AEP,UK/
TRV310E:AEP,UK/TR7000E/TR7100E)
224 1-475-617-71 SWITCH BLOCK, CONTROL (FK-8500)
(EXCEPT:TRV110E:AEP,UK,EE,NE,RU/TRV210E:AEP,UK/
TRV310E:AEP,UK/TR7000E/TR7100E)
* 225 3-053-745-01 PROTECTOR, LS FLEXIBLE
226 1-672-672-11 FP-45 FLEXIBLE BOARD (TRV110:BR)
226 1-672-672-21 FP-45 FLEXIBLE BOARD (EXCEPT:TRV110:BR)
227 1-774-867-31 CONNECTOR,EXTERNAL (HOT SHOE) 8P
228 1-672-665-11 FP-54 FLEXIBLE BOARD
229 3-053-741-11 FRAME (S), LENS
230 A-7094-280-A VC-213 (N) BOARD, COMPLETE (TR7000)
230 A-7094-281-A VC-213 (QP) BOARD, COMPLETE
(TR7000E/TR7100E)
230 A-7094-282-A VC-213 (VN) BOARD, COMPLETE
(TRV103/TRV110/TRV110P/TRV203/
TRV210/TRV310/TRV310P/TRV315)
230 A-7094-283-A VC-213 (VQP) BOARD, COMPLETE
(TRV110E/TRV210E/TRV310E)
231 1-673-120-11 FP-78 FLEXIBLE BOARD
232 A-7073-867-A SE-86 BOARD, COMPLETE
(TRV103/TRV110/TRV110E/TRV110P)
232 A-7073-918-A SE-89 BOARD, COMPLETE
(TR7000/TR7000E/TR7100E)
232 A-7073-923-A SE-87 BOARD, COMPLETE
(TRV203/TRV210/TRV210E/TRV310/TRV310E/TRV310P/TRV315)
233 3-053-743-01 FRAME (A), MD
234 A-7073-868-A PJ-95 BOARD, COMPLETE
(TRV103/TRV110/TRV110E:E,HK,AUS,CN,JE/TRV110P)
234 A-7073-919-A PJ-98 BOARD, COMPLETE (TR7000)
234 A-7073-924-A PJ-96 BOARD, COMPLETE
(TRV203/TRV210/TRV210E:CN/TRV310/TRV310E:E,HK,AUS,CN,JE/
TRV310P/TRV315)
234 A-7073-941-A PJ-95 (IM) BOARD, COMPLETE
(TRV110E:AEP,UK,EE,NE,RU)
234 A-7073-954-A PJ-96 (IM) BOARD, COMPLETE
(TRV210E:AEP,UK/TRV310E:AEP,UK)
234 A-7073-976-A PJ-98 (IM) BOARD, COMPLETE
(TR7000E/TR7100E)
235 3-987-675-01 FRAME (B), MD
236 1-469-363-11 FILTER, EMI (MD)
(TRV110E:AEP,UK,EE,NE,RU/TRV210E:AEP,UK/
TRV310E:AEP,UK/TR7000E/TR7100E)
237 3-987-676-01 COVER (MD), FERRITE
(TRV110E:AEP,UK,EE,NE,RU/TRV210E:AEP,UK/
TRV310E:AEP,UK/TR7000E/TR7100E)
* 238 3-055-691-01 PROTECTOR, L- FLEXIBLE
(TRV203/TRV210/TRV210E/TRV310/TRV310E/TRV310P/TRV315)
* 239 3-053-725-11 SHEET, IM GUARD
(TRV103/TRV110/TRV110E/TRV110P/TR7000/TR7000E/TR7100E)
240 1-469-431-11 BEAD, FERRITE
J001 1-565-276-31 JACK, ULTRA SMALL 1P (LANC)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
