Sony DCR-TRV103 - CF-63

DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E

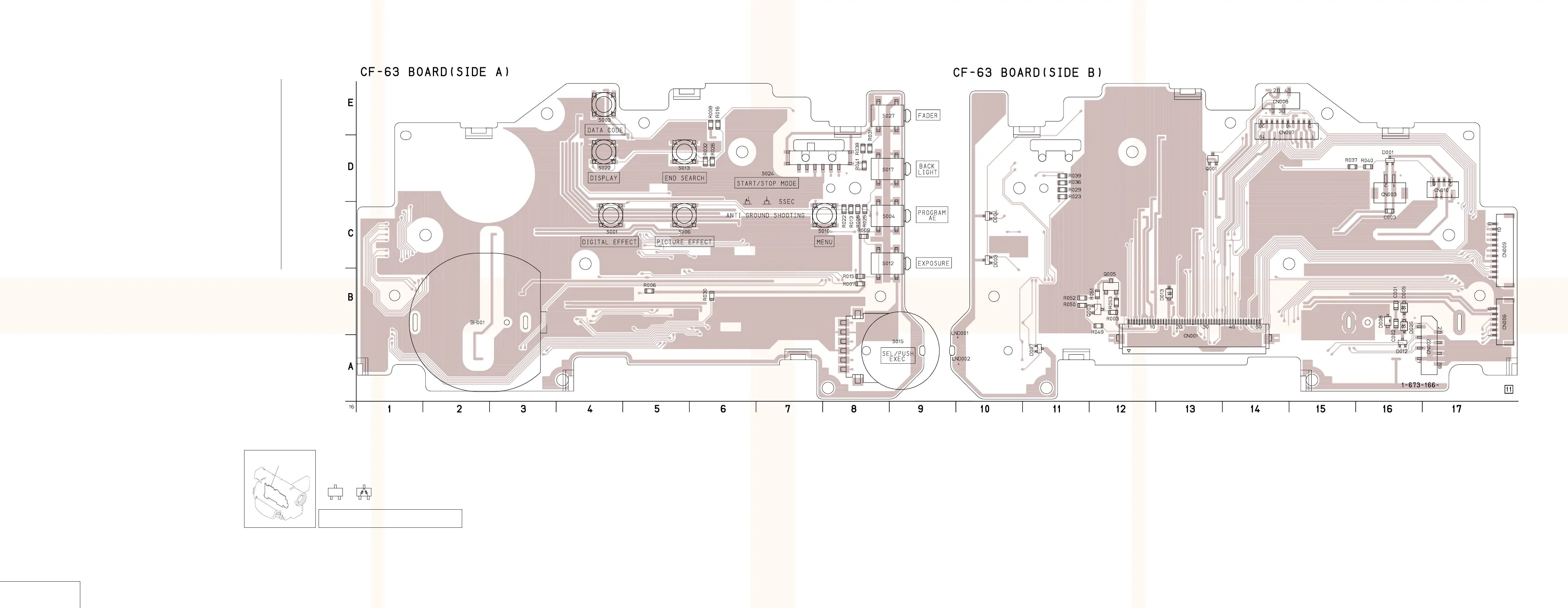

CF-63 (USER CONTROL) PRINTED WIRING BOARD (3/3.5 INCH LCD MODEL)
— Ref. No. CF-63 Board; 8,000 Series —
CF-63 BOARD
BH001 B-2
C001 B-16
C002 B-16
C003 C-16
CN001 A-13
CN002 A-17
CN003 D-16
CN006 B-17
CN007 E-14
CN008 E-14
CN009 C-17
CN010 D-17
D001 D-16
D003 C-10
D004 C-10
D005 B-16
D006 B-16
D007 A-11
D008 B-16
D012 A-16
D013 B-13
Q001 D-13
Q003 B-12
Q005 B-12
R003 B-12
R005 C-8
R006 B-5
R007 B-8
R009 C-8
R013 C-8
R015 B-8
R022 C-8
R023 D-11
R025 C-8
R028 D-6
R029 D-11
R030 B-6
R031 D-8
R032 D-6
R036 D-11
R037 D-15
R038 D-8
R039 D-11
R040 D-16
R041 D-8
R049 B-12
R050 B-11
R051 B-12
R052 B-11
R053 B-12
S001 C-4
S004 C-8
S006 C-5
S010 C-7
S012 C-8
S013 D-5
S015 A-9
S017 D-8
S022 D-4
S024 D-7
For printed wiring boards
• Chip parts
Transistor Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.
4-87 4-88 4-89
USER CONTROL
CF-63
4-90
C
BE
3
21
CF-63
(USER CONTROL)
