5-4

J-1 J-2

J-6

J-3

J-7 J-8

J-4 J-5

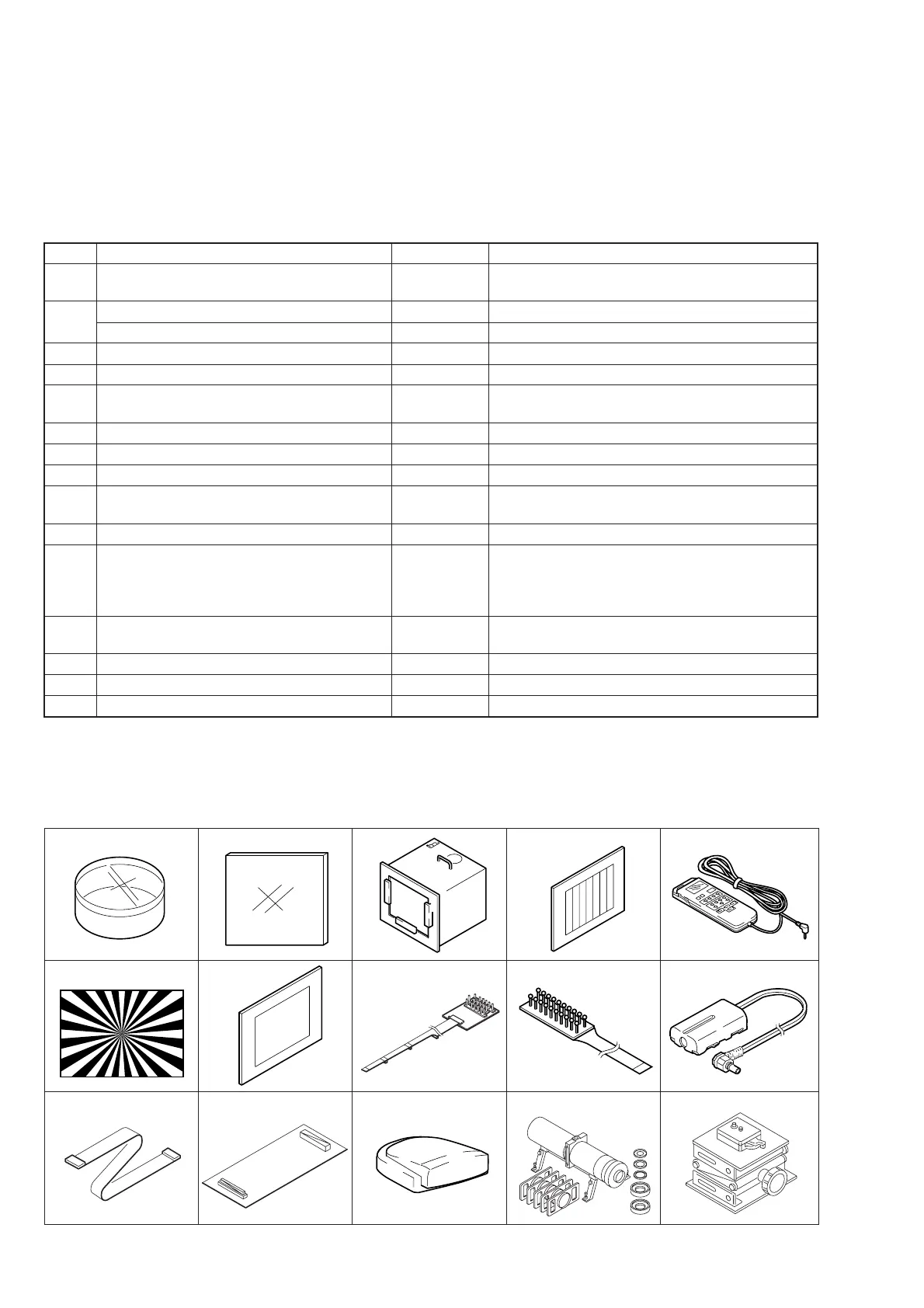

Fig. 5-1-1.

J-9 J-10

J-11 J-12 J-13

Ref. No.

J-1

J-2

J-3

J-4

J-5

J-6

J-7

J-8

J-9

J-10

J-11

J-12

J-13

J-14

J-15

Name

Filter for color temperature correction (C14)

ND filter 1.0

ND filter 0.3

Pattern box PTB-450

Color chart for pattern box

Adjustment remote commander (RM-95 upgraded).

(Note 1)

Siemens star chart

Clear chart for pattern box

Multi CPC jig

CPC-13 jig

Power cord (Note 2)

Extension cable (16P, 0.5mm)

Extension cable (70P, 0.5mm)

IR receiver jig

Mini pattern box

Camera table

Parts Code

J-6080-058-A

J-6080-808-A

J-6080-818-A

J-6082-200-A

J-6020-250-A

J-6082-053-B

J-6080-875-A

J-6080-621-A

J-6082-311-A

J-6082-443-A

J-6082-223-A

J-6082-357-A

J-6082-439-A

J-6082-383-A

J-6082-353-B

J-6082-384-A

Usage

Auto white balance adjustment/check

White balance adjustment/check

White balance check

For checking the flange back

For adjusting the LCD block

For adjusting the video section

For adjusting the color viewfinder

For connecting the battery terminal and DC power supply

For extension between the CD-212 board (CN1401) and

the VC-213 board (CN501)(720H model)

For extension between the CD-213 board (CN2401) and

the VC-213 board (CN501)(960H model)

For extension between the DD-117 board (CN931) and

the VC-213 board (CN914)

For adjusting the IR transmitter

For adjusting the flange back

5-1. CAMERA SECTION ADJUSTMENT

1-1. PREPARATIONS BEFORE ADJUSTMENT (CAMERA SECTION)

1-1-1. List of Service Tools

• Oscilloscope • Color monitor • Vectorscope

• Regulated power supply • Digital voltmeter

Note 1: If the micro processor IC in the adjustment remote commander is

not the new micro processor (UPD7503G-C56-12), the pages

cannot be switched. In this case, replace with the new micro

processor (8-759-148-35).

Note 2: Connect the adjustment remote commander to the LANC jack,

and set to HOLD switch to the “ADJ” side.

Note 3: 720H model:DCR-TR7000/TRV103/TRV110/TRV110P/

TRV203/TRV210/TRV310/TRV310P/TRV315

960H model:DCR-TR7000E/TR7100E/TRV110E/TRV210E/

TRV310E

J-14 J-15
