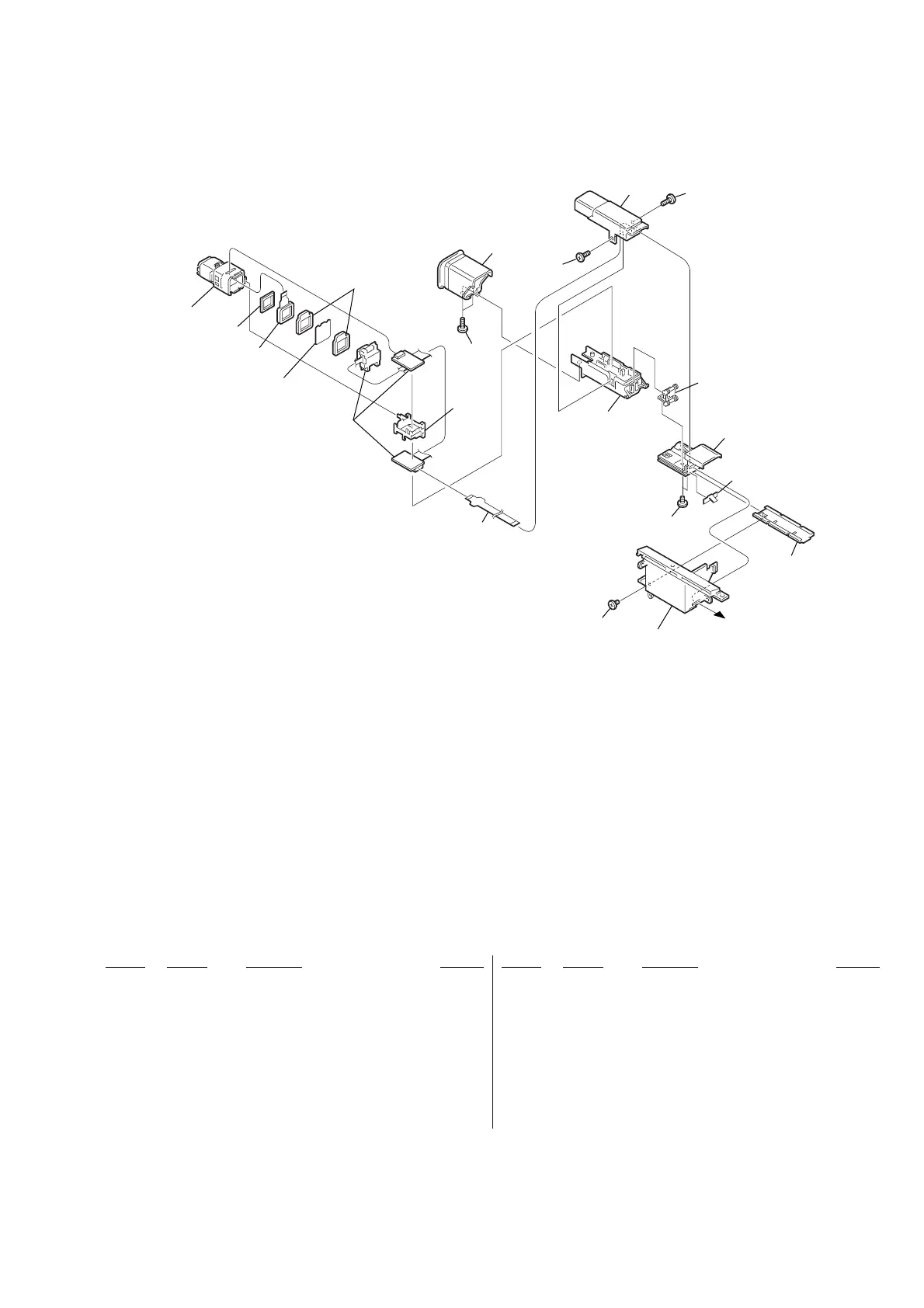

6-1-9. COLOR EVF BLOCK ASSEMBLY
(TRV315/TR7000/TR7000E/TR7100E)
TO CF BOARD
not
supplied
401
417
401
403
404
405
407
408
409
407
407
410
411
412
413
414
415
416
406
402
401 3-968-729-81 SCREW (M2), LOCK ACE, P2
402 3-053-677-01 BASE (C), SLIDE FIXED
403 3-054-141-01 RETAINER, HARNESS
404 X-3949-414-1 SLIDE BASE C (95) ASSY
405 X-3949-331-1 ARM (C) ASSY, CRANK
406 3-054-074-01 CABINET (LOWER C) (95), EVF
407 3-948-339-01 SCREW, TAPPING
408 3-054-073-01 CABINET (UPPER C) (95), EVF
409 X-3949-413-1 CABINET (REAR C) (95) ASSY, EVF
410 1-672-662-11 FP-47 FLEXIBLE BOARD
411 A-7073-876-A VF-126 BOARD, COMPLETE
* 412 3-989-416-11 CUSHION (458), LCD
* 413 3-988-563-01 ILLUMINATOR (458), BL
414 8-753-023-89 LCX024AK-J COMPLE
* 415 3-960-302-11 CUSHION (1), LCD
416 X-3949-332-1 LENS ASSY (92), VF
417 3-054-075-03 BASE C (95), VF
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
