DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E

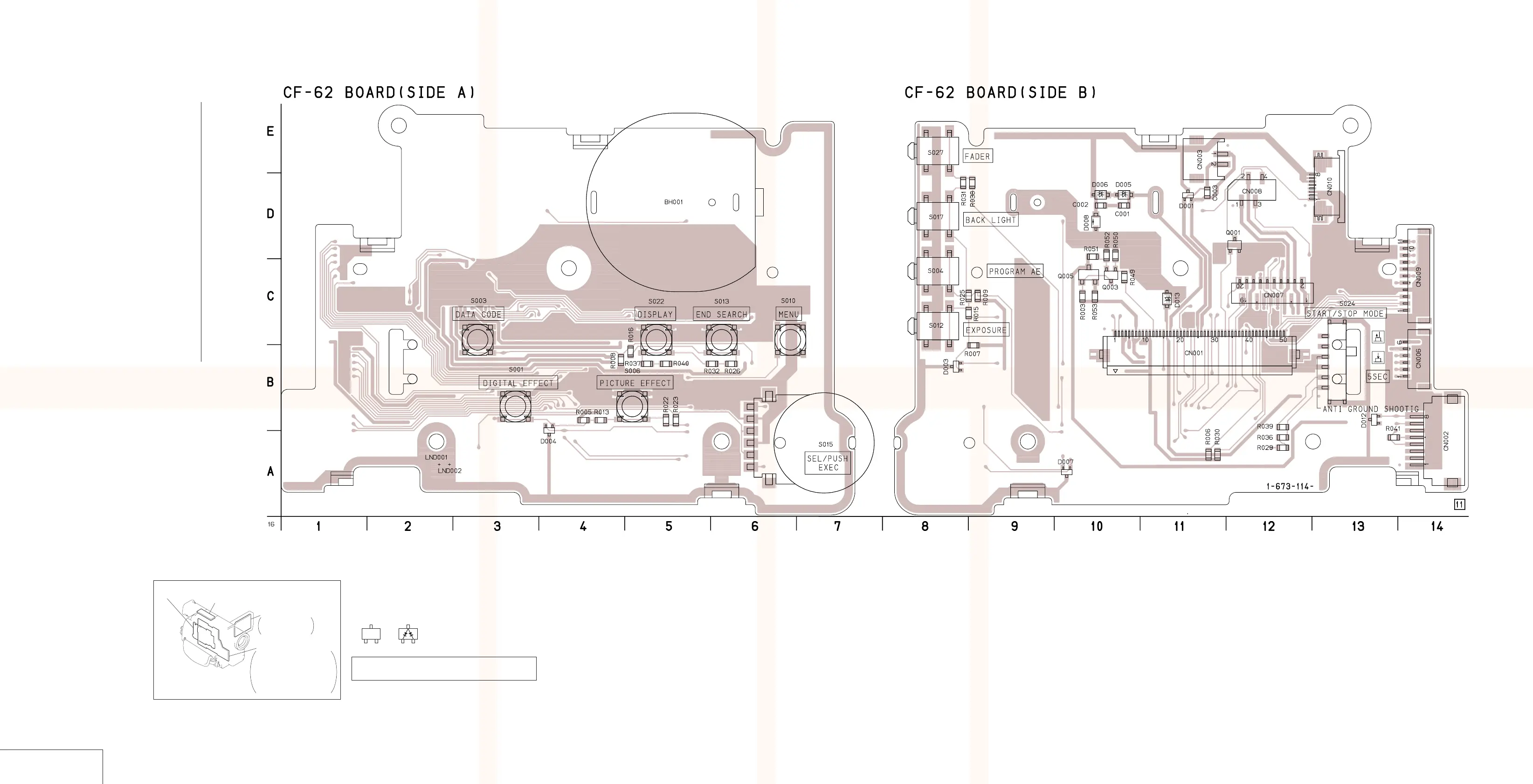

CF-62 (USER CONTROL) PRINTED WIRING BOARD (2.5 INCH LCD MODEL)
— Ref. No. CF-62 Board; 7,000 Series —
CF-62 BOARD
For printed wiring boards
• Chip parts
Transistor Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
3
21
4-80 4-81 4-82
USER CONTROL
CF-62
CF-62
(USER CONTROL)
PD-105, 106
RGB DECODER, LCD,
TIMING GENERATOR,
BACK LIGHT DRIVE
VC-213
CAMERA PROCESSOR, Y/C
PROCESSOR, FOCUS/ZOOM
MOTOR DRIVE, REC/PB HEAD
AMP, VIDEO/INTERFACE,
IR TRANSMITTER, MODE
CONTROL, SERVO, HI CONTROL,
SYSTEM CONTROL,
AUDIO PROCESSOR
VF-129
(B/W EVF)
BH001 D-5
C001 D-10
C002 D-10
C003 D-11
CN001 B-11
CN002 A-14
CN003 E-11
CN006 B-14
CN007 C-12
CN008 D-12
CN009 C-14
CN010 D-13
D001 D-11
D003 B-8
D004 A-4
D007 A-10
D008 D-10
D012 B-13
D013 C-11
D015 D-10
D016 D-10
Q001 D-12
Q003 C-10
Q005 C-10
R003 C-10
R005 B-4
R006 A-11
R007 B-9
R008 B-4
R009 C-9
R013 B-4
R015 C-8
R016 B-5
R022 B-5
R023 B-5
R025 C-8
R026 B-6
R029 A-12
R030 A-11
R031 D-8
R032 B-6
R036 A-12
R037 B-5
R038 D-9
R039 A-12
R040 B-5
R041 A-13
R049 C-10
R050 D-10
R051 D-10
R052 D-10
R053 C-10
S001 B-3
S003 C-3
S004 C-8
S006 B-5
S010 C-6
S012 C-8
S013 C-6
S015 A-7
S017 D-8
S022 C-5
S024 B-13
S027 E-8
