Sony DCR-TRV103 User Manual

2-2

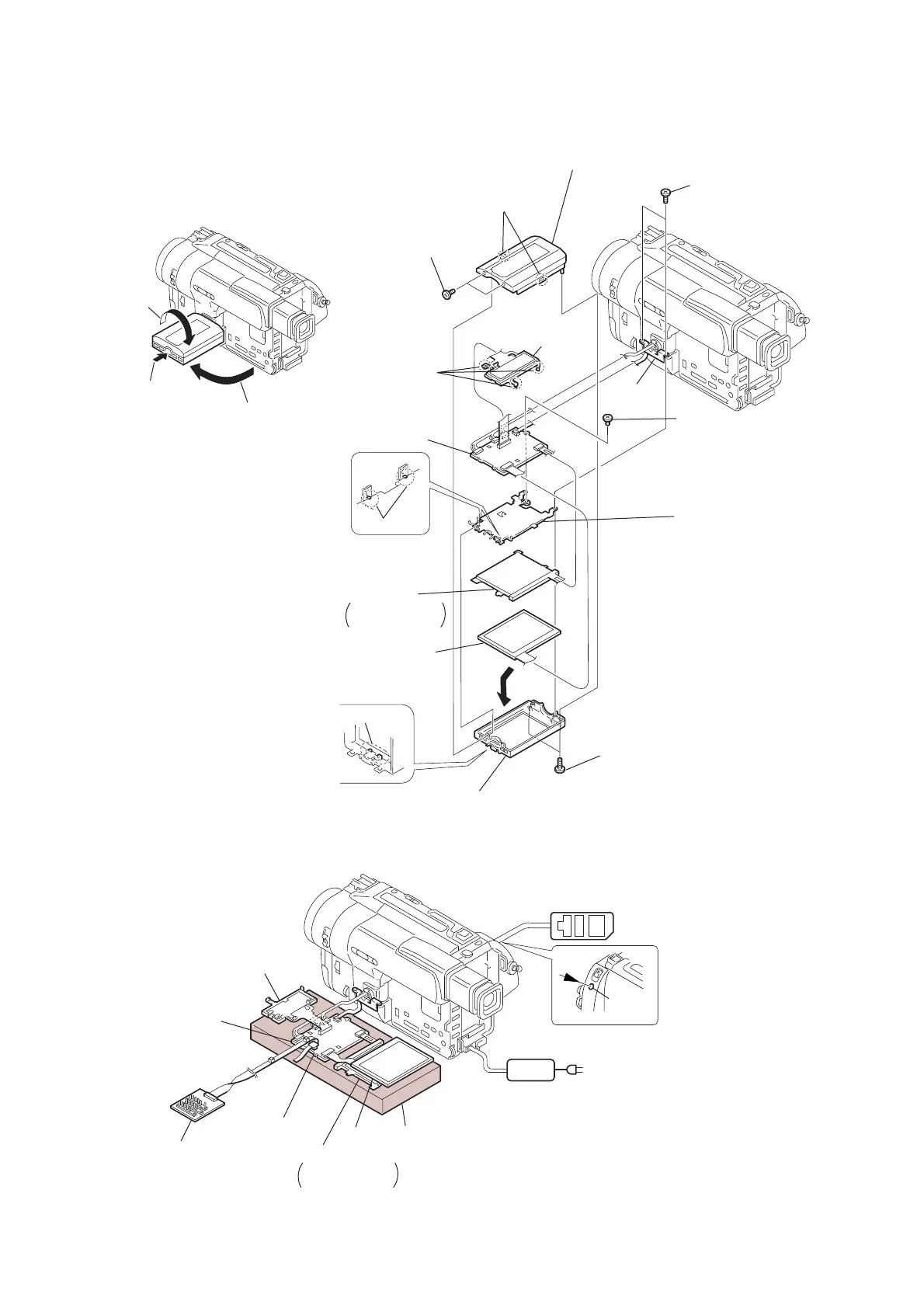

NOTE: Follow the disassembly procedure in the numerical order given.
PD-105
PD-105
2 Open the LCD panel.
1 Press the button.
3 Rotate it by 90 °
in the direction
of the arrow.
8 Two tapping screws
(B2
× 8)
5 Two tapping screws
(B2
× 5)
!™ Screw
(M2
× 3)
6 Claws
!¡ Claws
!£ Claws
9 Claws
!¢ Panel frame (93)
assembly
!º P cabinet (M)(952)
assembly
!§ LCD UNIT
!∞ Back light
Cold cathode
fluorescent tube
!¶ PD-105 board
Hinge
assembly
Indication LCD
block assembly
7 P cabinet (C)(952)
assembly
Adjustment
remote commander
(RM-95)
LANC
jack
AC POWER
ADAPTOR
AC IN
Base
(Use box or the like.)
Multi CPC jig
(J-6082-311-A)
LCD
Back light
Cold cathode
fluorescent tube
PD-105 board
CN5501
4 Two screws (M2 × 4),
lock ace, p2
[2.5 INCH LCD CHECK SERVICE POSITION]
Indication LCD
block assembly
2-1. 2.5 INCH LCD UNIT, PD-105 BOARD
