Sony DCR-TRV103 User Manual

DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E
PD-106 BOARD

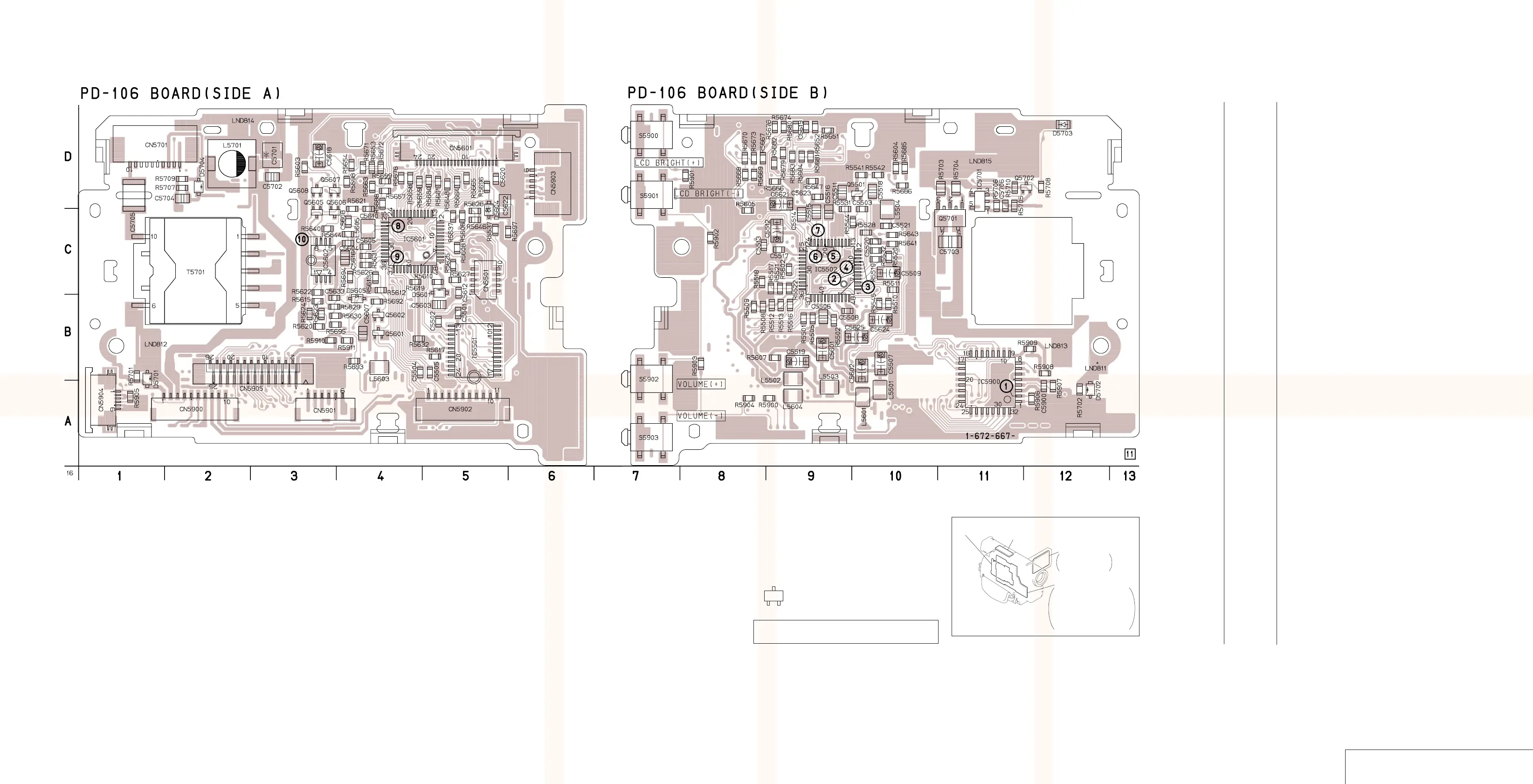

PD-106 (RGB DECODER, LCD, TIMING GENERATOR, BACK LIGHT DRIVE) PRINTED WIRING BOARD (3/3.5 INCH LCD MODEL)
— Ref. No. PD-106 Board; 10,000 Series —
4-106 4-107
RGB DECODER, LCD, TIMING GEN.
PD-106
4-105
For printed wiring boards
• This board is four-layer print board. However, the pat-
terns of layers two and three have not been included
in the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
CF-62
(USER CONTROL)
PD-105, 106
RGB DECODER, LCD,
TIMING GENERATOR,
BACK LIGHT DRIVE
VC-213
CAMERA PROCESSOR, Y/C
PROCESSOR, FOCUS/ZOOM
MOTOR DRIVE, REC/PB HEAD
AMP, VIDEO/INTERFACE,
IR TRANSMITTER, MODE
CONTROL, SERVO, HI CONTROL,
SYSTEM CONTROL,
AUDIO PROCESSOR
VF-129
(B/W EVF)
C5501 B-5
C5502 B-5
C5503 C-10
C5504 B-4
C5505 B-5
C5506 B-9
C5507 B-10
C5508 B-9
C5509 C-10
C5511 D-9
C5512 C-9
C5513 C-8
C5514 C-9
C5515 C-9
C5516 C-9
C5517 C-9
C5518 D-10
C5519 B-9
C5520 C-10
C5521 C-10
C5601 B-9
C5602 B-10
C5603 B-5
C5604 C-4
C5605 C-4
C5607 B-4
C5608 C-4
C5610 C-4
C5612 B-5
C5616 C-4
C5618 D-3
C5619 D-9
C5620 D-5
C5621 D-9
C5622 D-5
C5623 D-9
C5624 B-10
C5625 B-10
C5633 B-3
C5701 D-3
C5702 D-3
C5703 C-11
C5704 D-2
C5705 D-1
C5706 D-11
C5900 A-12
CN5501 C-5
CN5601 D-5
CN5701 D-1
CN5900 A-2
CN5901 A-3
CN5902 A-5
CN5903 D-6
CN5904 A-1
CN5905 B-2
D5601 B-5
D5614 C-5
D5701 A-1
D5702 A-12
D5703 D-12
D5704 D-2
IC5501 B-5
IC5502 C-9
IC5601 C-4
IC5602 C-3
IC5701 D-11
IC5900 A-11
L5501 A-10
L5502 A-9
L5503 A-9
L5504 C-10
L5601 A-10
L5603 B-4
L5604 A-9
L5605 C-4
L5701 D-2
L5906 A-12
Q5501 D-10
Q5601 B-4
Q5602 B-4
Q5605 C-3
Q5606 C-3
Q5607 D-3
Q5608 D-3
Q5701 C11
Q5702 D-12
R5501 B-9
R5502 B-9
R5505 B-9
R5508 B-8
R5509 B-8
R5510 B-10
R5511 C-10
R5512 B-9
R5513 B-9
R5516 B-9
R5517 C-9
R5518 C-8
R5519 C-10
R5520 C-10
R5521 C-9
R5522 C-9
R5523 C-10
R5531 C-9
R5532 C-10
R5537 C-5
R5541 D-10
R5542 D-10
R5544 C-10
R5545 B-10
R5602 C-9
R5603 D-3
R5604 D-10
R5605 C-8
R5606 C-5
R5607 B-9
R5608 C-5
R5610 C-5
R5612 C-4
R5613 C-4
R5615 B-3
R5617 B-5
R5619 C-4
R5620 B-3
R5621 C-4
R5622 B-3
R5623 B-3
R5624 B-3
R5625 C-5
R5626 C-4
R5627 C-5
R5628 C-5
R5629 B-3
R5630 B-3
R5631 C-4
R5632 B-4
R5637 C-5
R5640 C-3
R5641 C-10
R5643 D-5
R5644 C-4
R5646 C-5
R5647 D-9
R5651 D-9
R5652 D-9
R5653 D-4
R5654 D-4
R5657 D-4
R5658 D-4
R5659 D-4
R5660 D-5
R5661 D-5
R5663 D-4
R5664 D-5
R5665 D-5
R5666 D-9
R5667 D-8
R5668 D-8
R5669 D-8
R5670 D-8
R5671 D-4
R5672 D-4
R5673 D-8
R5674 D-9
R5676 D-9
R5678 D-4
R5679 D-9
R5680 D-9
R5681 D-9
R5682 D-9
R5683 D-9
R5684 D-9
R5685 D-10
R5686 D-10
R5688 D-4
R5692 B-4
R5694 C-4
R5695 B-3
R5696 D-5
R5697 C-6
R5698 D-4
R5699 D-4
R5701 B-1
R5702 A-12
R5703 D-11
R5704 D-11
R5705 D-11
R5706 D-11
R5707 D-2
R5709 D-2
R5710 D-11
R5900 A-9
R5901 D-8
R5902 C-8
R5903 B-8
R5904 A-8
R5905 A-1
R5907 A-12
R5908 B-12
R5909 B-12
R5910 B-3
R5911 B-4
S5900 D-7
S5901 D-7
S5902 B-7
S5903 A-7
T5643 C-10
T5701 C-2
