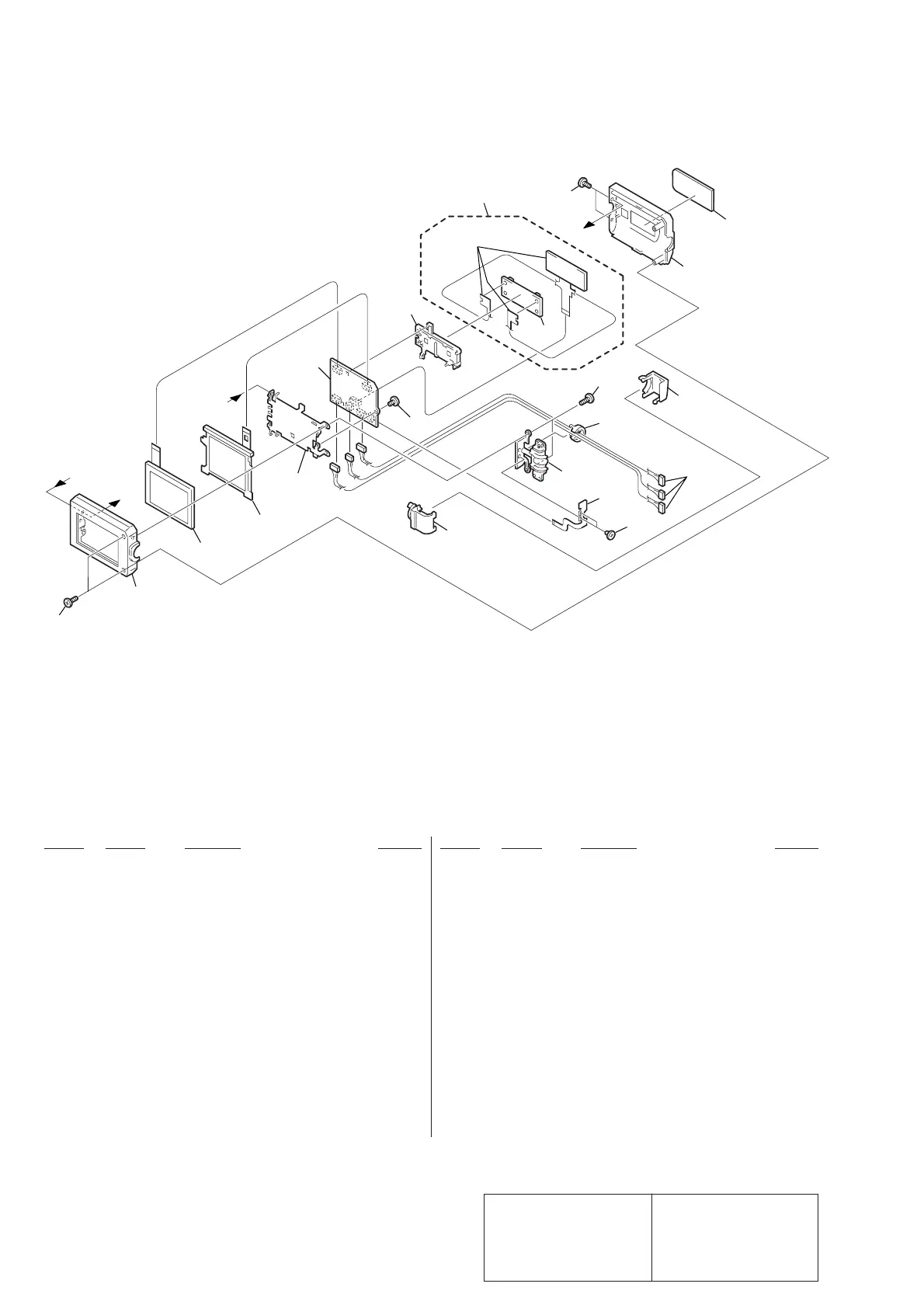

6-1-6. LCD BLOCK ASSEMBLY (2.5 INCH LCD MODEL)
(TRV103/TRV110/TRV110E/TRV110P)
PD-105
a
a
b
b
not
supplied
LED901
251
252
253
254
255
256
257
258
259
260
LCD901
ND901
263
264
265
266
267
268
269
270
251 3-054-039-01 COVER (C) (952), HINGE
252 3-948-339-11 SCREW, TAPPING
253 3-987-623-01 CLAMP, HARNESS
254 1-959-310-11 HARNESS (DP-74)
255 4-981-286-01 SCREW (M1.7X2)(IB LOCK)
256 1-668-963-21 FP-642 FLEXIBLE BOARD
257 X-3949-656-1 HINGE ASSY (N)
258 3-987-625-01 COVER (M), HINGE
259 3-948-339-01 SCREW, TAPPING
260 X-3949-416-1 CABINET (M (952)) ASSY, P
263 X-3949-385-1 FRAME (93) ASSY, PANEL
264 3-713-786-21 SCREW (M2X3)
265 A-7073-871-A PD-105 (SHN) BOARD, COMPLETE
(TRV103/TRV110/TRV110E:E,HK,AUS,CN,JE/TRV110P)
265 A-7073-942-A PD-105 (SHP) BOARD, COMPLETE
(TRV110E:AEP,UK,EE,NE,RU)
266 3-053-702-01 HOLDER (93), LCD
267 X-3949-544-1 CABINET (C) (952) ASSY, P
268 3-054-122-01 WINDOW (952), LCD (TRV110/TRV110P)
268 3-054-122-11 WINDOW (952), LCD (TRV103)
268 3-054-122-21 WINDOW (952), LCD (TRV110E)
269 3-968-729-01 SCREW (M2), LOCK ACE, P2
270 A-7094-411-A INDICATION (LCD) BLOCK ASSY
! LED901 1-517-866-11 LIGHT, BACK
LCD901 1-803-355-21 MODULE, CRYSTAL INDICATION
(TRV103/TRV110/TRV110E:E,HK,AUS,CN,JE/TRV110P)
LCD901 1-803-357-21 MODULE, CRYSTAL INDICATION
(TRV110E:AEP,UK,EE,NE,RU)
! ND901 1-517-751-31 TUBE, FLUORESCENT,COLD CATHODE
(TRV103/TRV110/TRV110E:E,HK,AUS,CN,JE/TRV110P)
! ND901 1-517-751-41 TUBE, FLUORESCENT,COLD CATHODE
(TRV110E:AEP,UK,EE,NE,RU)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
Note :
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
