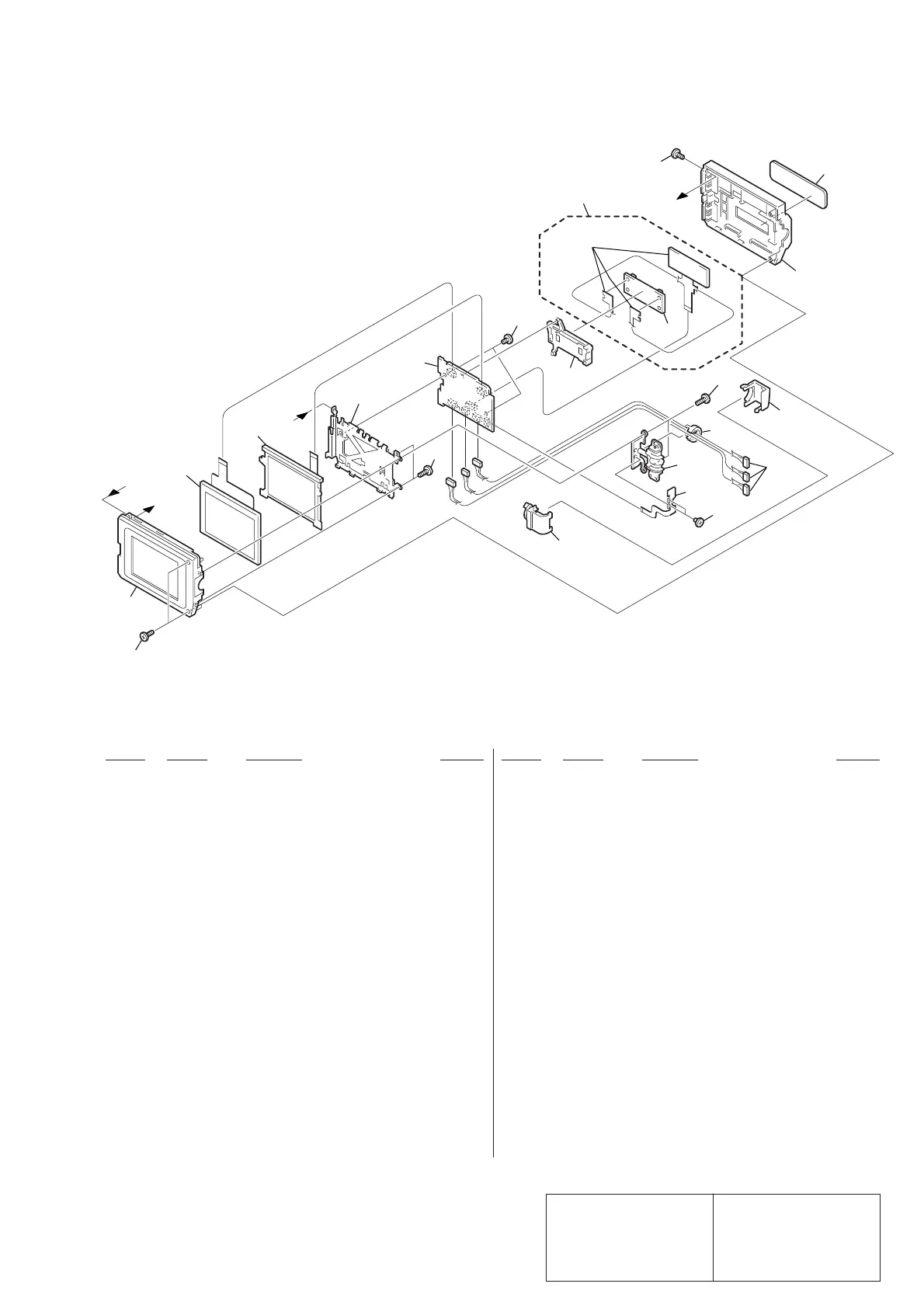

6-1-7. LCD BLOCK ASSEMBLY (3.0/3.5 INCH LCD MODEL)
(TRV203/TRV210/TRV210E/TRV310/TRV310E/TRV310P/TRV315)
PD-106
a
a
b
b
not
supplied
LED901
301
302
303
304
305
306
307
308
309
310
LCD901
ND901
313
314
315
316
321
317
318
319
320
301 3-054-278-01 COVER (C) (955), HINGE
302 3-948-339-11 SCREW, TAPPING
303 3-987-623-01 CLAMP, HARNESS
304 1-959-311-11 HARNESS (DP-75)
305 4-981-286-01 SCREW (M1.7X2)(IB LOCK)
306 1-668-963-41 FP-642 FLEXIBLE BOARD
307 X-3949-657-1 HINGE ASSY (NH)
308 3-987-625-01 COVER (M), HINGE
309 3-948-339-01 SCREW, TAPPING
310 3-054-273-01 CABINET (M) (955), P
(TRV310:US,HK,E,JE/TRV310E/TRV310P)
310 3-054-273-11 CABINET (M) (955), P
(TRV203/TRV210/TRV210E/TRV315)
310 3-054-273-21 CABINET (M) (955), P (TRV310:TW)
313 X-3949-451-1 FRAME (958) ASSY, PANEL
314 3-948-339-61 TAPPING
315 A-7073-927-A PD-106 (SH) BOARD, COMPLETE
(TRV203/TRV210/TRV210E/TRV315)
315 A-7073-957-A PD-106 (CAN) BOARD, COMPLETE
(TRV310/TRV310P)
315 A-7073-975-A PD-106 (SHP) BOARD, COMPLETE (TRV310E)
316 3-713-786-21 SCREW (M2X3)
317 3-054-275-01 HOLDER (94), LCD
318 X-3949-450-1 CABINET (C) ASSY (955), P
(TRV203/TRV210/TRV210E/TRV310:US,HK,E,JE/
TRV310E/TRV310P/TR315)
318 X-3949-479-1 CABINET (C) (955) ASSY, P (TRV310:TW)
319 3-054-276-01 WINDOW (955), LCD (TRV315)
319 3-054-276-11 WINDOW (955), LCD (TRV210)
319 3-054-276-21 WINDOW (955), LCD (TRV203)
319 3-054-276-31 WINDOW (955), LCD (TRV310/TRV310P)
319 3-054-276-41 WINDOW (955), LCD (TRV310E)
319 3-054-276-51 WINDOW (955), LCD (TRV210E)
320 3-968-729-01 SCREW (M2), LOCK ACE, P2
321 A-7094-411-A INDICATION (LCD) BLOCK ASSY
! LED901 1-517-866-11 LIGHT, BACK
LCD901 1-803-032-21 MODULE, CRYSTAL INDICATION
(TRV310/TRV310P)
LCD901 1-803-355-21 MODULE, CRYSTAL INDICATION
(EXCEPT:TRV310/TRV310P)
! ND901 1-517-855-11 TUBE, FLUORESCENT,COLD CATHODE
(TRV310/TRV310E/TRV310P)
! ND901 1-517-856-11 TUBE, FLUORESCENT,COLD CATHODE
(TRV203/TRV210/TRV210E/TRV315)
Note :
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
