Sony DCR-TRV103 - 6-1-3. CABINET (R) BLOCK ASSEMBLY (2.5 INCH LCD MODEL)

6-3

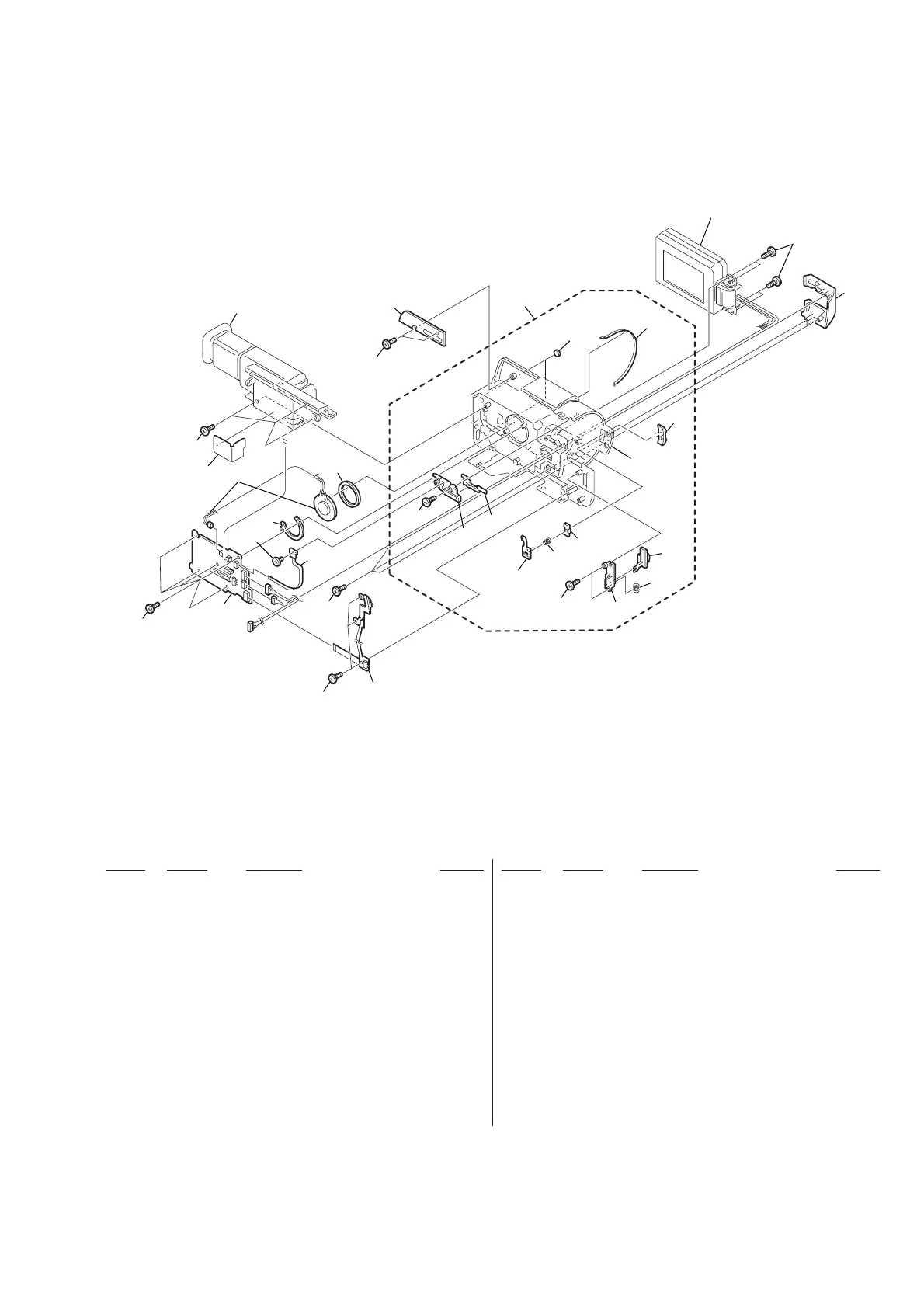

6-1-3. CABINET (R) BLOCK ASSEMBLY (2.5 INCH LCD MODEL)
(TRV103/TRV110/TRV110E/TRV110P)
CF-62
SP901
not
supplied
102
101
102
102
102
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
102
102
B/W EVF block assembly
(See page 6-8)
LCD block assembly
(2.5 INCH LCD MODEL)
(See page 6-6)
101 1-418-274-11 SWITCH BLOCK, CONTROL (PS-9500)
102 3-948-339-61 TAPPING
103 1-672-668-21 FP-62 FLEXIBLE BOARD
104 A-7073-870-A CF-62 (B) BOARD, COMPLETE
105 3-713-791-01 SCREW (M1.7X4), TAPPING, P2
* 106 3-053-783-01 RETAINER (93), SPEAKER
107 3-965-367-01 SPACER, SP
108 3-053-683-01 GUIDE, HARNESS
109 3-948-339-01 SCREW, TAPPING
110 3-054-069-01 GUIDE (B (95)), TILT
111 X-3949-415-1 CABINET (R) ASSY (952)
(TRV103/TRV110/TRV110E:E,HK,AUS,CN,JE/TRV110P)
111 X-3949-436-1 CABINET (R) ASSY (952)
(TRV110E:AEP,UK,EE,NE,RU)
112 3-054-038-01 COVER (R) (952), HINGE
* 113 3-054-031-01 RING (952), ORNAMENTAL
114 3-959-978-02 CUSHION, PANEL
115 3-054-028-01 KNOB (952), POWER
116 3-053-689-21 KNOB (93), MF
117 3-965-034-01 SPRING, COMPRESSION
118 3-053-690-01 RETAINER (93), MF
119 3-054-029-01 BUTTON (952), POWER LOCK
120 3-568-315-01 SPRING, COMPRESSION
121 3-054-030-01 HOLDER (952), P KNOB
122 3-054-025-01 KNOB (952), NS
123 3-054-026-01 RETAINER (952), NS
SP901 1-505-291-21 SPEAKER (2.8CM)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
