2-6
1 FFC-236 flexible
flat cable (50P)
2 DP-74 harness
(10P)
4 Three tapping
screws (B2
× 5)
3 FFC-256
flexible flat cable (4P)
6 B/W EVF block assembly
< 2.5 INCH LCD MODEL >
< 3.0/3.5 INCH LCD MODEL WITH B/W EVF >
1 FFC-236 flexible
flat cable (50P)
3 Three tapping
screws (B2
× 5)
4 Remove
the claws
5 Remove
the claws
1 FFC-236 flexible
flat cable (50P)
2 DP-75 harness
(10P)
4 Three tapping
screws (B2
× 5)
3 FFC-256
flexible flat cable (4P)
6 B/W EVF block assembly
5 Remove
the claws
< 3.0 INCH LCD MODEL WITH COLOR EVF >
1 FFC-236 flexible
flat cable (50P)
2 DP-75 harness
(10P)
4 Three tapping
screws (B2
× 5)
6 Color EVF block assembly
5 Remove
the claws
2 FP-47 flexible board (20P)
3 FP-47 flexible board (20P)
5 Color EVF block assembly
< TR MODEL >

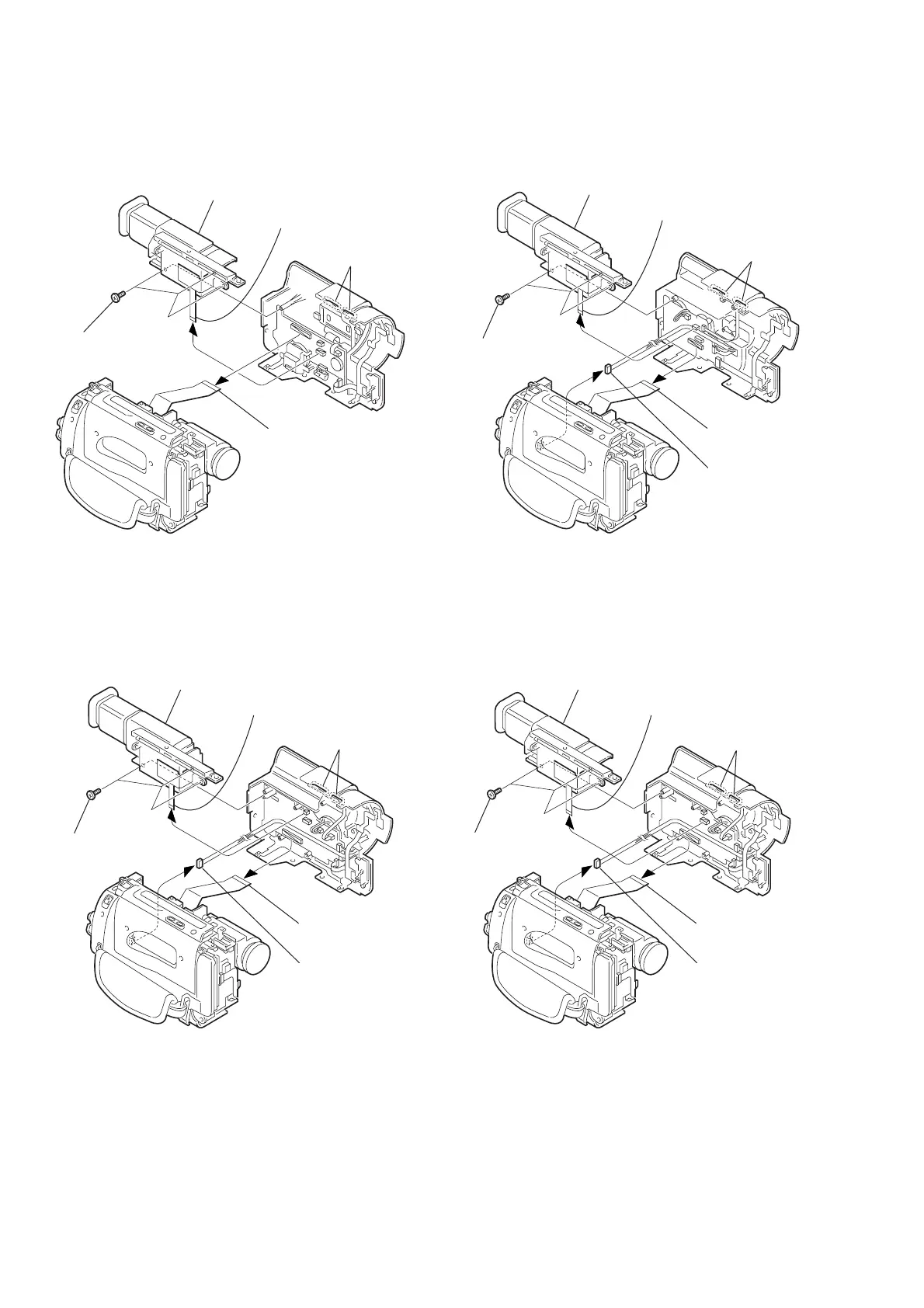

2-6. EVF BLOCK ASSEMBLY
Refer to page 2-7 for disassembly of VF-129 board (B/W EVF).
Refer to page 2-8 for disassembly of VF-126 board (Color EVF).
