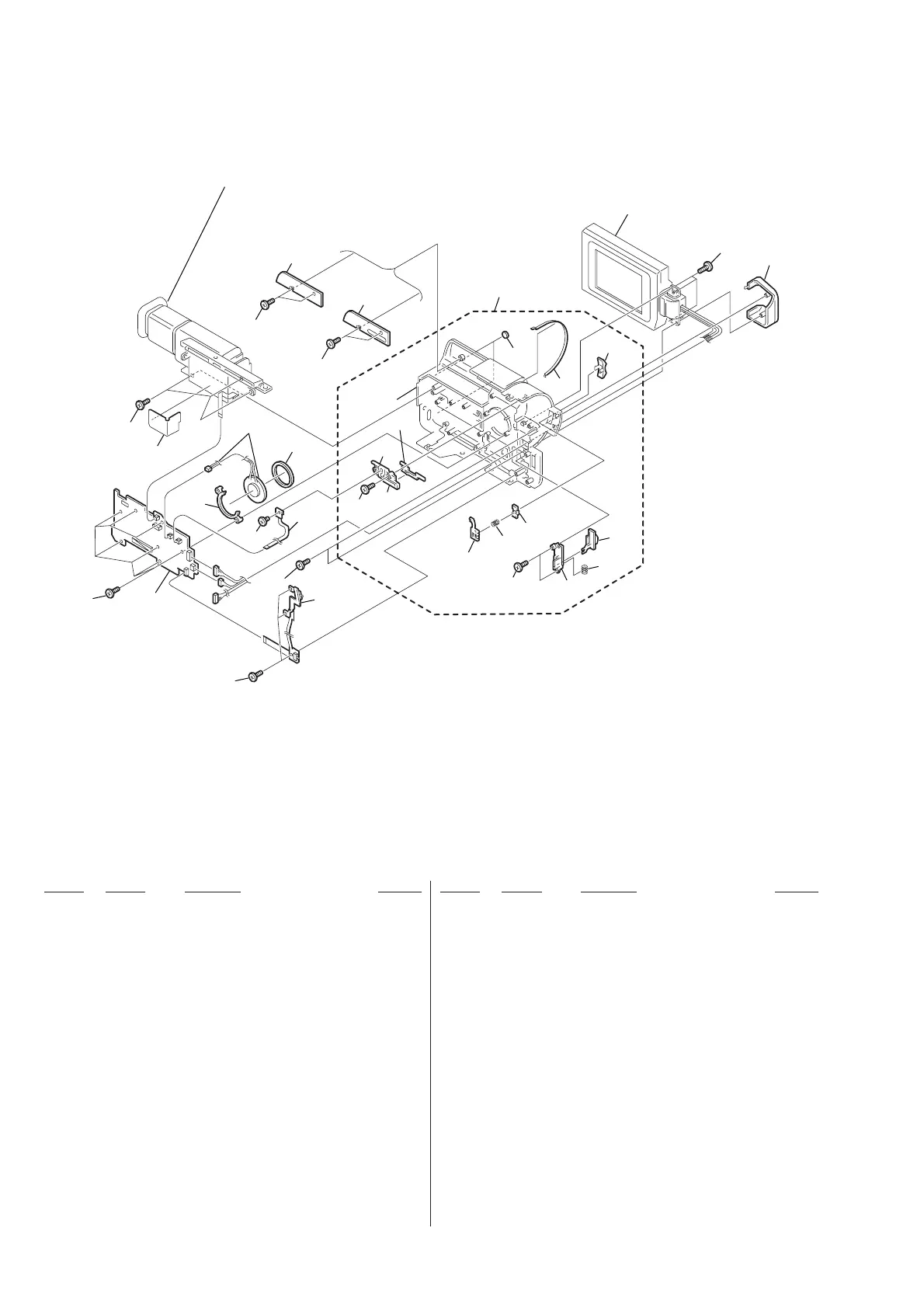

6-1-4. CABINET (R) BLOCK ASSEMBLY (3.0/3.5 INCH LCD MODEL)
(TRV203/TRV210/TRV210E/TRV310/TRV310E/TRV310P/TRV315)
CF-63
SP901
151
152
152
153
154
155
156
157
158
152
173
174
159
160
172
161
162
163
164
165
166
167
168
169
170
171
159
152
152
152
152
B/W EVF block assembly (See page 6-8)
Color EVF block assembly (See page 6-9)
or
LCD block assembly
(3.0/3.5 INCH LCD MODEL)
(See page 6-7)
151 1-418-274-11 SWITCH BLOCK, CONTROL (PS-9500)
152 3-948-339-61 TAPPING
153 1-672-668-21 FP-62 FLEXIBLE BOARD
154 A-7073-926-A CF-63 (C) BOARD, COMPLETE (TRV315)
154 A-7073-955-A CF-63 (B) BOARD, COMPLETE
(TRV203/TRV210/TRV210E/TRV310/TRV310E/TRV310P)
155 3-713-791-01 SCREW (M1.7X4), TAPPING, P2
* 156 3-053-783-01 RETAINER (93), SPEAKER
157 3-965-367-01 SPACER, SP
158 3-053-683-01 GUIDE, HARNESS
159 3-948-339-01 SCREW, TAPPING
160 3-054-069-01 GUIDE (B (95)), TILT
(TRV203/TRV210/TRV210E/TRV310/TRV310E/TRV310P)
161 X-3949-449-1 CABINET (R) (955) ASSY
(TRV203/TRV210/TRV210E:CN/TRV310:US,HK,E,JE/
TRV310E:E,HK,AUS,CN,JE/TRV310P/TRV315)
161 X-3949-475-1 CABINET (R) (955) ASSY
(TRV210E:AEP.UK/TRV310E:AEP,UK)
161 X-3949-477-1 CABINET (R) (955) ASSY (TRV310:TW)
162 3-054-277-01 COVER (R) (955), HINGE
(TRV203/TRV210/TRV210E/TRV310:US,HK,E,JE/
TRV310E/TRV310P/TRV315)
162 3-054-277-11 COVER (R) (955), HINGE (TRV310:TW)
* 163 3-054-031-01 RING (952), ORNAMENTAL
164 3-959-978-02 CUSHION, PANEL
165 3-054-028-01 KNOB (952), POWER
166 3-053-689-11 KNOB (93), MF
167 3-965-034-01 SPRING, COMPRESSION
168 3-053-690-01 RETAINER (93), MF
169 3-054-029-01 BUTTON (952), POWER LOCK
170 3-568-315-01 SPRING, COMPRESSION
171 3-054-030-01 HOLDER (952), P KNOB
* 172 3-054-612-01 BLIND (95), CVF (TRV315)
173 3-054-267-01 KNOB (955), NS
174 3-054-268-01 RETAINER (955), NS
SP901 1-504-753-41 SPEAKER (2.8CM)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
