DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E
4-117 4-118 4-119
B/W EVF
VF-129

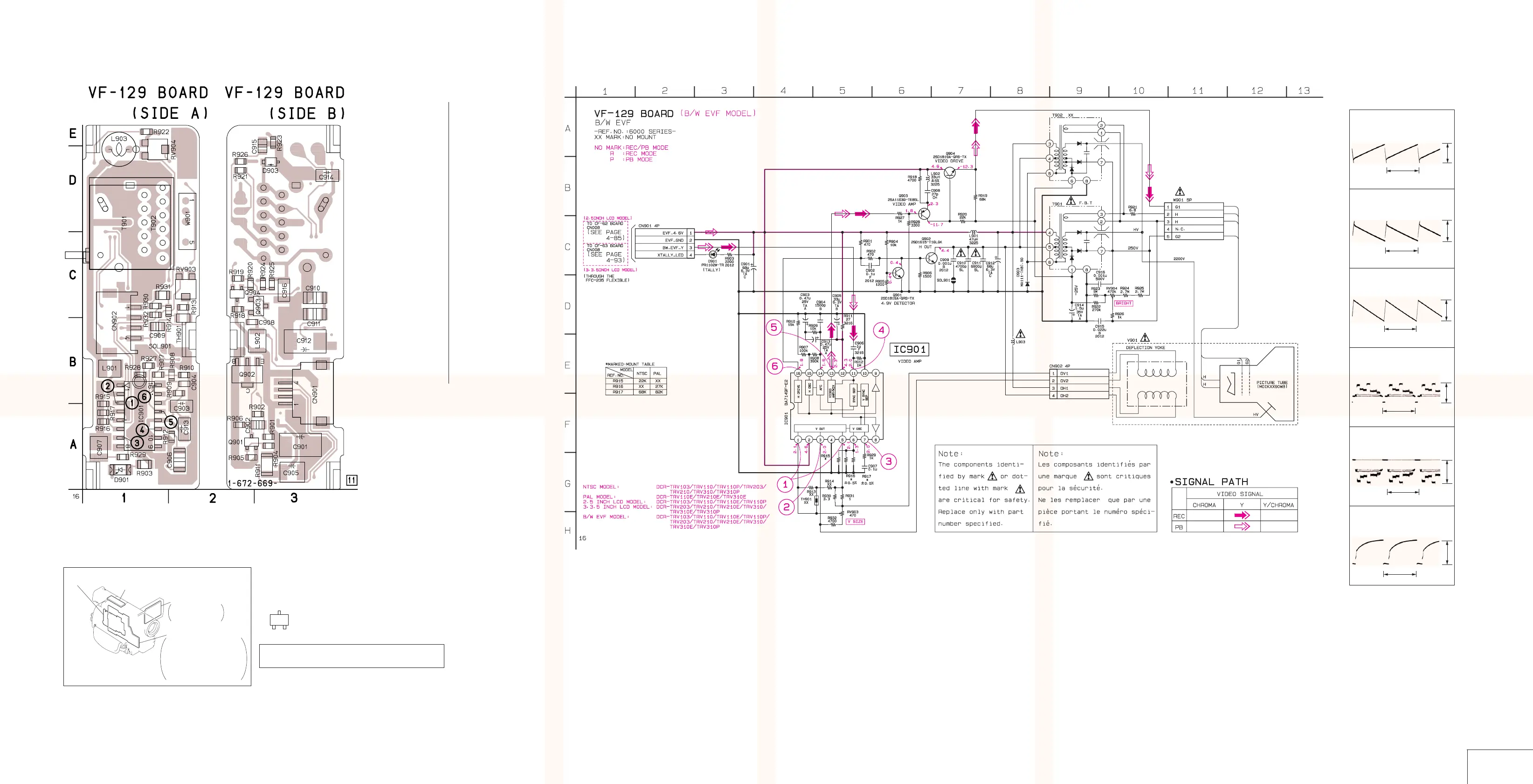

VF-129 (B/W EVF) PRINTED WIRING BOARD (B/W EVF MODEL)
— Ref. No. VF-129 Board; 6,000 Series —
For printed wiring boards
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
VF-129 BOARD
C901 A-3
C902 A-3
C903 A-2
C904 B-2
C905 A-3
C906 A-2
C907 A-1
C908 C-2
C909 B-1
C910 C-3
C911 C-3
C912 B-3
C913 A-2
C914 D-3
C915 E-3
C916 C-3
CN901 B-3
CN902 B-1
D901 A-1
D903 D-3
IC901 A-1
L901 B-1
L902 B-3
L903 D-1
Q901 A-2
Q902 B-2
Q903 C-3
Q904 C-2
R901 A-3
R902 A-3
R903 A-1
R904 A-3
R905 A-2
R906 A-2
R907 B-1
R908 B-2
R909 B-2
R910 B-2
R911 A-3
R912 A-2
R913 C-2
R914 C-2
R915 B-1
R916 A-1
R917 A-1
R918 C-2
R919 C-2
R920 C-2
R921 D-2
R922 E-1
R923 E-3
R924 C-3
R925 C-3
R926 D-2
R927 B-1
R928 B-1
R929 A-1
R930 C-1
R931 C-1
R932 C-1
RV903 C-2
RV904 D-1
T901 D-1
T902 D-1
TH901 B-2
W901 D-2
VF-129
BOARD
CAMERA REC/PB
2
IC901 3
3
IC901 7
4
IC901 !¡
1.1Vp-p
16.7 msec
0.9Vp-p
H
5
IC901 !£
H
1.1Vp-p
H
2.4Vp-p
6
IC901 !§
1
IC901 1,5
2.0Vp-p
16.7 msec
2.0Vp-p
16.7 msec
CF-62
(USER CONTROL)
PD-105, 106
RGB DECODER, LCD,
TIMING GENERATOR,
BACK LIGHT DRIVE
VC-213
CAMERA PROCESSOR, Y/C
PROCESSOR, FOCUS/ZOOM
MOTOR DRIVE, REC/PB HEAD
AMP, VIDEO/INTERFACE,
IR TRANSMITTER, MODE
CONTROL, SERVO, HI CONTROL,
SYSTEM CONTROL,
AUDIO PROCESSOR
VF-129
(B/W EVF)
