2-13

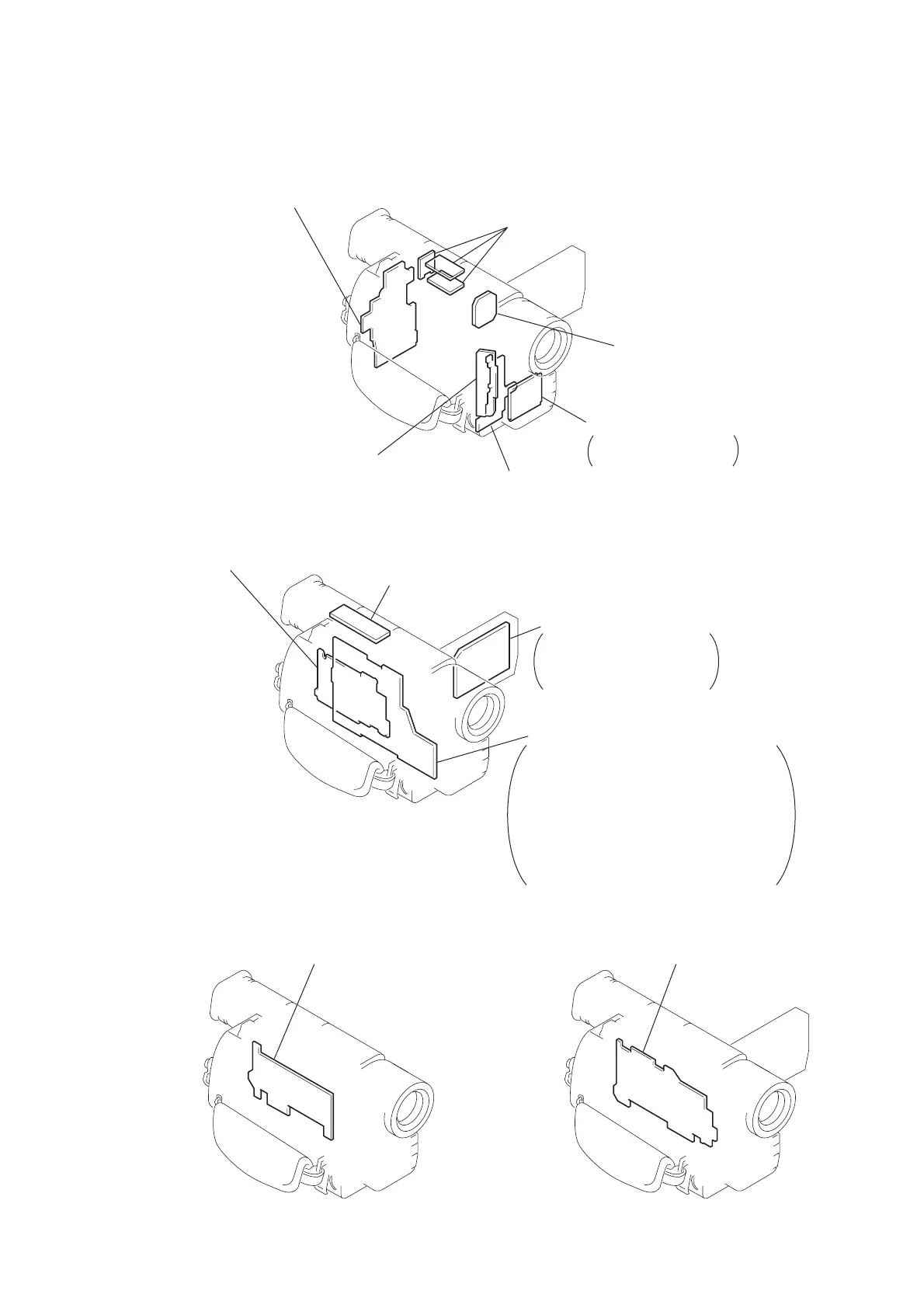

2-14.CIRCUIT BOARDS LOCATION
NOTE: For the difference of the printed wiring boards due to needs and destinations, refer to “Table for differences of function”
on page 4.
CD-212, 213
(CCD IMAGER)
MA-354, 355, 357
STEREO MIC AMP,
LASER LINK
PJ-95, 96, 98
(AV IN/OUT)
SE-86, 87, 89
(STEADY SHOT)
DD-117
(DC/DC CONVERTER)
VF-126
(COLOR EVF)
CF-62
(USER CONTROL)
PD-105, 106
RGB DECODER, LCD,
TIMING GENERATOR,
BACK LIGHT DRIVE
VC-213
CAMERA PROCESSOR, Y/C
PROCESSOR, FOCUS/ZOOM
MOTOR DRIVE, REC/PB HEAD
AMP, VIDEO/INTERFACE,
IR TRANSMITTER, MODE
CONTROL, SERVO, HI CONTROL,
SYSTEM CONTROL,
AUDIO PROCESSOR
VF-129
(B/W EVF)
CF-65
(USER CONTROL)
CF-63
(USER CONTROL)
