Sony DCR-TRV103 User Manual

DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E
VF-126 BOARD
C4501 A-7
C4502 A-2
C4503 A-8
C4504 A-8
C4505 A-8
C4506 A-8
C4507 A-8
C4508 B-8
C4509 B-7
C4510 B-8
C4511 B-8
C4512 B-1
C4513 B-2
C4514 B-7
C4515 A-7
C4516 B-8
C4517 B-8
C4601 D-8
C4602 C-2
C4603 D-8
C4604 D-8
C4605 D-2
C4606 D-1
C4607 D-1
C4608 D-8
C4609 D-8
C4610 C-7
C4611 D-8
C4612 D-2
C4613 D-1
C4614 D-1
C4615 D-1
C4616 D-1
C4617 D-2
C4618 D-1
C4619 D-2
C4620 D-2
C4621 D-7
C4622 D-2
C4623 D-2
C4624 D-7
C4625 D-7
C4626 C-7
C4801 E-6
C4802 E-5
C4803 E-5
C4804 E-6
CN4501 A-1
CN4602 D-2
D4601 D-8
D4602 D-1
D4801 E-4
D4802 F-6
IC4501 A-8
IC4502 A-1
IC4601 D-1
IC4602 D-7
IC4603 D-8
L4501 A-2
L4502 B-7
L4601 C-7
L4602 C-1
L4603 D-8
L4801 E-6
L4802 E-5
ND4801 E-4
Q4501 A-1
Q4601 C-2
Q4602 C-1
Q4603 C-2
Q4604 C-1
Q4605 D-1
Q4801 F-6
R4501 A-1
R4502 A-1
R4503 A-8
R4504 A-7
R4505 A-7
R4506 A-7
R4507 A-7
R4508 A-7
R4509 A-9
R4510 A-7
R4511 A-7
R4512 A-8
R4513 A-7
R4514 A-7
R4515 A-7
R4516 A-7
R4517 A-7
R4518 B-7
R4519 B-7
R4520 A-7
R4521 B-7
R4522 A-7
R4524 B-8
R4525 B-8
R4526 B-8
R4528 A-7
R4602 D-8
R4604 D-8
R4605 D-8
R4606 D-1
R4607 D-8
R4608 D-2
R4609 D-8
R4610 D-8
R4611 D-1
R4612 D-1
R4613 D-8
R4614 D-8
R4615 D-8
R4616 D-1
R4617 D-2
R4618 D-2
R4619 D-7
R4620 E-1
R4621 D-2
R4622 D-2
R4623 D-2
R4624 D-2
R4625 D-2
R4626 D-2
R4627 D-2
R4629 D-2
R4630 D-1
R4631 D-1
R4632 D-1
R4634 D-1
R4635 D-8
R4636 D-8
R4637 D-8
R4638 D-1
R4638 D-8
R4639 D-8
R4801 E-6
R4802 E-6
T4801 F-5
For printed wiring boards
• This board is four-layer print board. However, the pat-
terns of layers two and three have not been included
in the diagram.
• Chip parts
Transistor Diode
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE
3
21
64
13

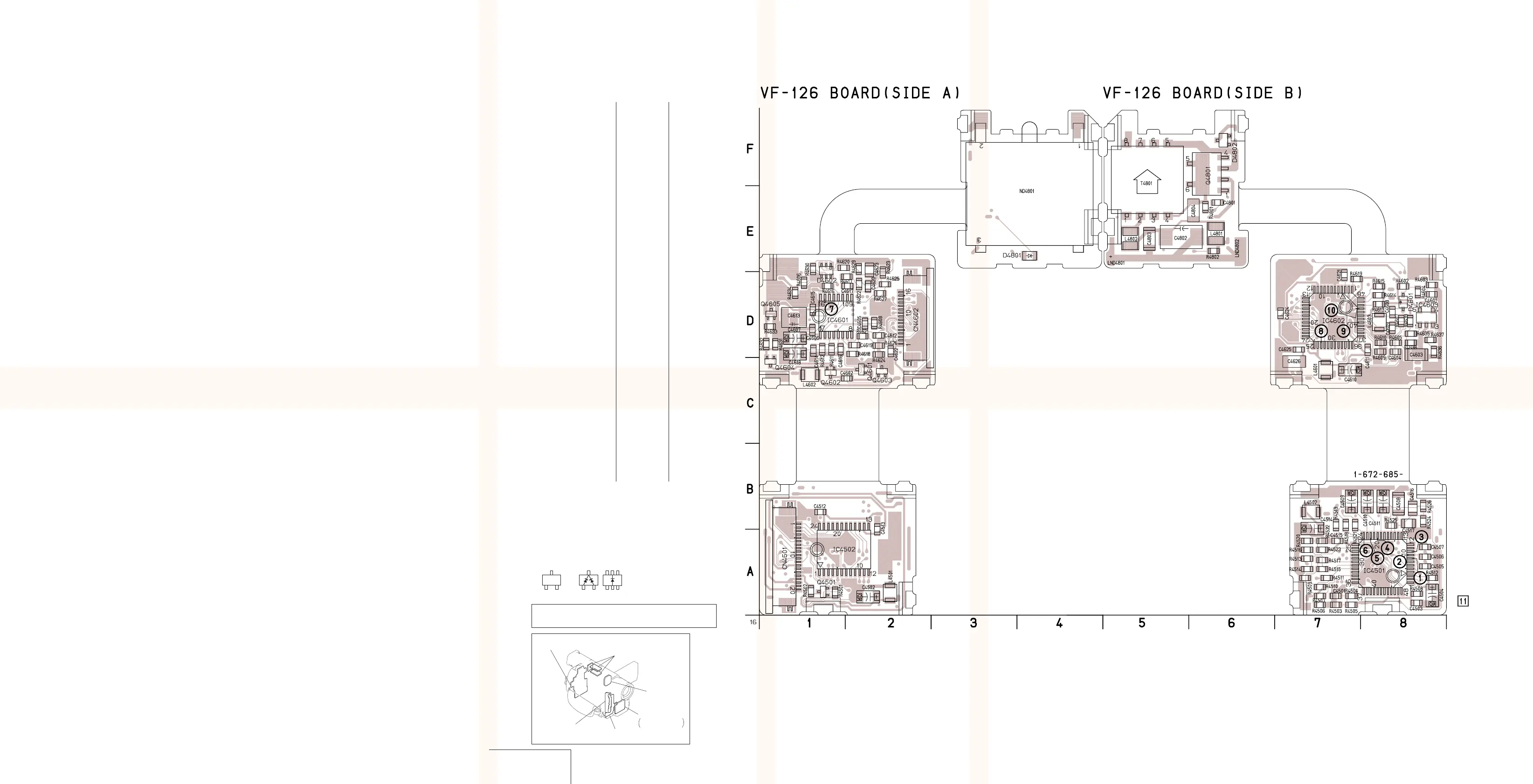

VF-126 (COLOR EVF) PRINTED WIRING BOARD (COLOR EVF MODEL)
— Ref. No. VF-126 Board; 10,000 Series —
4-121 4-122
COLOR EVF
VF-126
CD-212, 213
(CCD IMAGER)
MA-354, 355, 357
STEREO MIC AMP,
LASER LINK
PJ-95, 96, 98
(AV IN/OUT)
SE-86, 87, 89
(STEADY SHOT)
DD-117
(DC/DC CONVERTER)
VF-126
(COLOR EVF)
DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E
