Sony DCR-TRV103 User Manual

DCR-TRV103/TRV110/TRV110E/TRV110P/TRV203/TRV210/
TRV210E/TRV310/TRV310E/TRV310P/TRV315
DCR-TR7000/TR7000E/TR7100E
PD-105 BOARD
For printed wiring boards
• This board is four-layer print board. However, the pat-
terns of layers two and three have not been included
in the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
C
BE

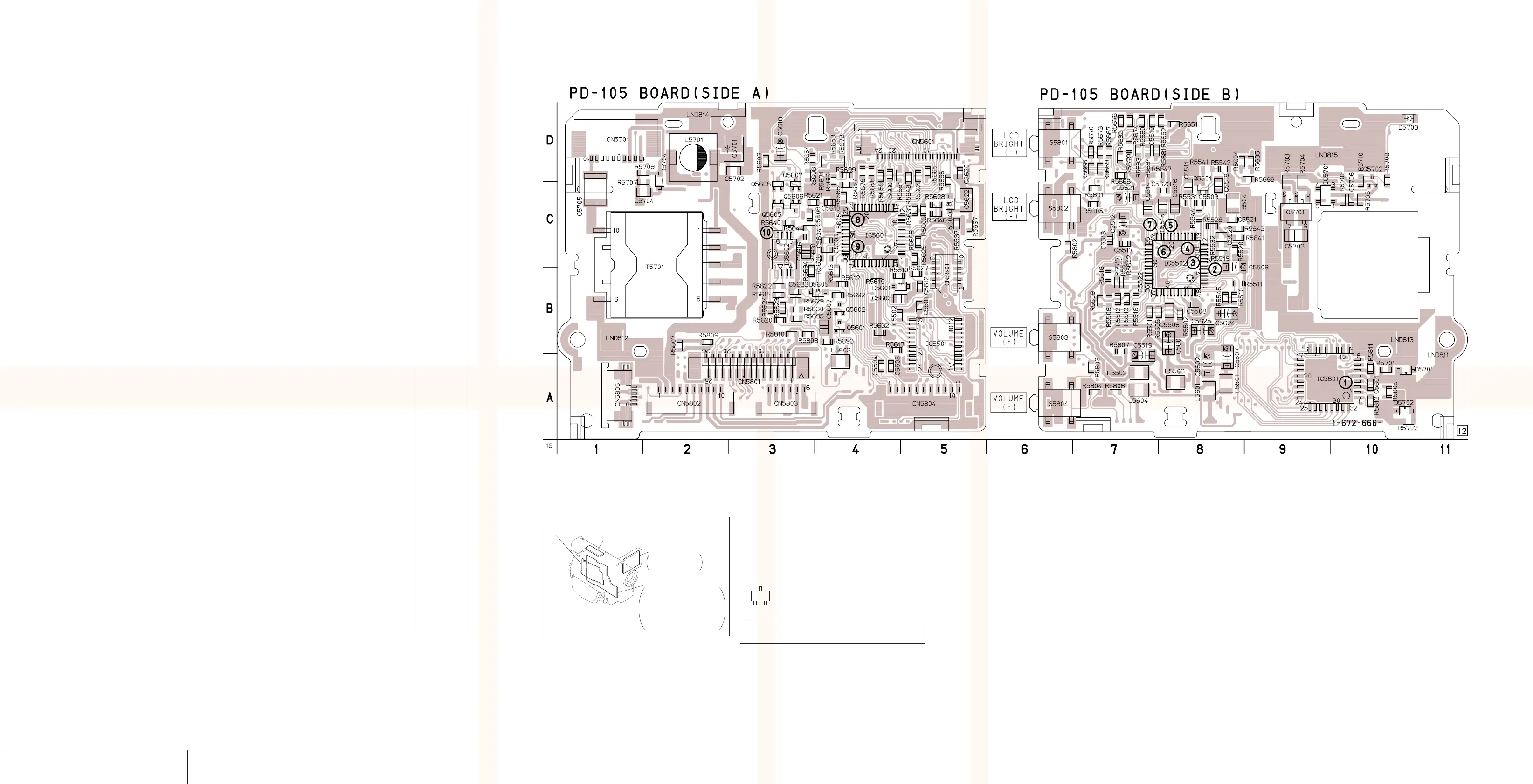

PD-105 (RGB DECODER, LCD, TIMING GENERATOR, BACK LIGHT DRIVE) PRINTED WIRING BOARD (2.5 INCH LCD MODEL)
— Ref. No. PD-105 Board; 10,000 Series —
4-103 4-104
RGB DECODER, LCD, TIMING GEN.
PD-105
4-102
CF-62
(USER CONTROL)
PD-105, 106
RGB DECODER, LCD,
TIMING GENERATOR,
BACK LIGHT DRIVE
VC-213
CAMERA PROCESSOR, Y/C
PROCESSOR, FOCUS/ZOOM
MOTOR DRIVE, REC/PB HEAD
AMP, VIDEO/INTERFACE,
IR TRANSMITTER, MODE
CONTROL, SERVO, HI CONTROL,
SYSTEM CONTROL,
AUDIO PROCESSOR
VF-129
(B/W EVF)
C5501 B-5
C5502 B-4
C5503 C-8
C5504 A-4
C5505 A-4
C5506 B-8
C5507 A-8
C5508 B-8
C5509 B-8
C5511 C-8
C5512 C-7
C5513 C-7
C5514 C-7
C5515 C-8
C5516 C-8
C5517 C-7
C5518 C-8
C5519 A-7
C5520 C-8
C5521 C-8
C5601 B-8
C5602 A-8
C5603 B-4
C5604 C-3
C5605 C-4
C5607 B-4
C5608 C-3
C5610 C-4
C5612 B-5
C5616 C-3
C5618 D-3
C5619 D-7
C5620 D-5
C5621 C-7
C5622 C-5
C5623 C-8
C5624 B-8
C5625 B-8
C5633 B-3
C5701 D-3
C5702 D-3
C5703 C-9
C5704 C-2
C5705 C-1
C5706 C-10
C5812 A-10
CN5501 B-5
CN5601 D-5
CN5701 D-1
CN5801 A-3
CN5802 A-2
CN5803 A-3
CN5804 A-5
CN5805 A-1
D5601 B-4
D5604 C-5
D5605 B-4
D5614 C-5
D5701 A-10
D5702 A-10
D5703 D-10
D5704 C-2
IC5501 B-5
IC5502 C-8
IC5601 C-4
IC5602 C-3
IC5701 C^9
IC5801 A-9
L5501 A-8
L5502 A-7
L5503 A-8
L5504 C-8
L5601 A-8
L5603 A-4
L5604 A-7
L5605 C-4
L5701 D-2
Q5501 C-8
Q5601 B-4
Q5602 B-4
Q5605 C-3
Q5606 C-3
Q5607 C-3
Q5608 C-3
Q5701 C-9
Q5702 C-10
R5501 B-7
R5502 B-8
R5506 B-8
R5508 B-7
R5509 B-7
R5510 B-8
R5511 B-8
R5512 B-7
R5513 B-7
R5516 B-7
R5517 B-7
R5518 B-7
R5519 C-8
R5520 C-8
R5521 B-7
R5522 B-7
R5528 C-8
R5531 C-8
R5532 C-8
R5537 C-5
R5541 D-8
R5542 D-8
R5544 C-8
R5545 B-8
R5602 C-7
R5603 D-3
R5604 D-8
R5605 C-7
R5606 C-5
R5607 B-7
R5608 C-5
R5610 B-4
R5612 B-4
R5613 B-4
R5615 B-3
R5617 B-4
R5619 B-4
R5620 B-3
R5621 C-3
R5622 B-3
R5623 B-3
R5624 B-3
R5626 C-4
R5627 B-5
R5628 C-5
R5629 B-3
R5630 B-3
R5631 C-4
R5632 B-4
R5637 C-5
R5640 C-3
R5641 C-8
R5643 D-5
R5644 C-3
R5646 C-5
R5647 D-7
R5648 C-8
R5651 D-8
R5652 D-8
R5653 D-4
R5654 D-3
R5657 C-4
R5658 D-4
R5659 D-4
R5660 D-4
R5661 D-4
R5663 C-4
R5664 D-5
R5665 D-5
R5666 D-7
R5667 D-7
R5668 D-7
R5669 D-7
R5670 D-7
R5671 D-4
R5672 D-4
R5674 D-7
R5676 D-7
R5678 D-4
R5679 D-7
R5680 D-7
R5681 D-7
R5682 D-7
R5684 D-7
R5685 D-9
R5686 D-9
R5688 C-4
R5692 B-4
R5694 B-3
R5695 B-3
R5696 D-5
R5697 C-5
R5698 D-3
R5699 D-4
R5701 A-10
R5702 A-10
R5703 C-9
R5704 C-9
R5705 C-10
R5706 C-10
R5707 C-2
R5710 C-10
R5801 C-7
R5802 C-6
R5803 A-7
R5804 A-7
R5805 A-10
R5806 A-7
R5807 B-2
R5808 B-3
R5810 B-3
R5811 A-10
R5812 A-10
S5801 D-6
S5802 C-6
S5803 B-6
S5804 A-6
T5701 C-2
