2-3
PD-106
PD-106
2 Open the LCD panel.
1 Press the button.
3 Rotate it by 90 °
in the direction
of the arrow.
8 Two tapping screws
(B2 × 8)
5 Two tapping screws
(B2 × 5)
!£ Two screws
(M2 × 3)
6 Claws
!™ Claws
!º Claws
!¢ Panel frame (958)
assembly
9 Two tapping screws
(B2 × 5)
!¡ P cabinet (M)(955)
!§ LCD UNIT
!∞ Back light
Cold cathode
fluorescent tube
!¶ PD-106 board
Hinge
assembly
7 P cabinet (C)(955)
assembly
Adjustment
remote commander
(RM-95)
LANC
jack
AC POWER
ADAPTOR
AC IN
Base
(Use box or the like.)
Multi CPC jig
(J-6082-311-A)
LCD
Back light
Cold cathode
fluorescent tube
PD-106 board
CN5501
4 Screw (M2 × 4),
lock ace, p2
[3.0/3.5 INCH LCD CHECK SERVICE POSITION]
Indication LCD
block assembly
Indication LCD
block assembly

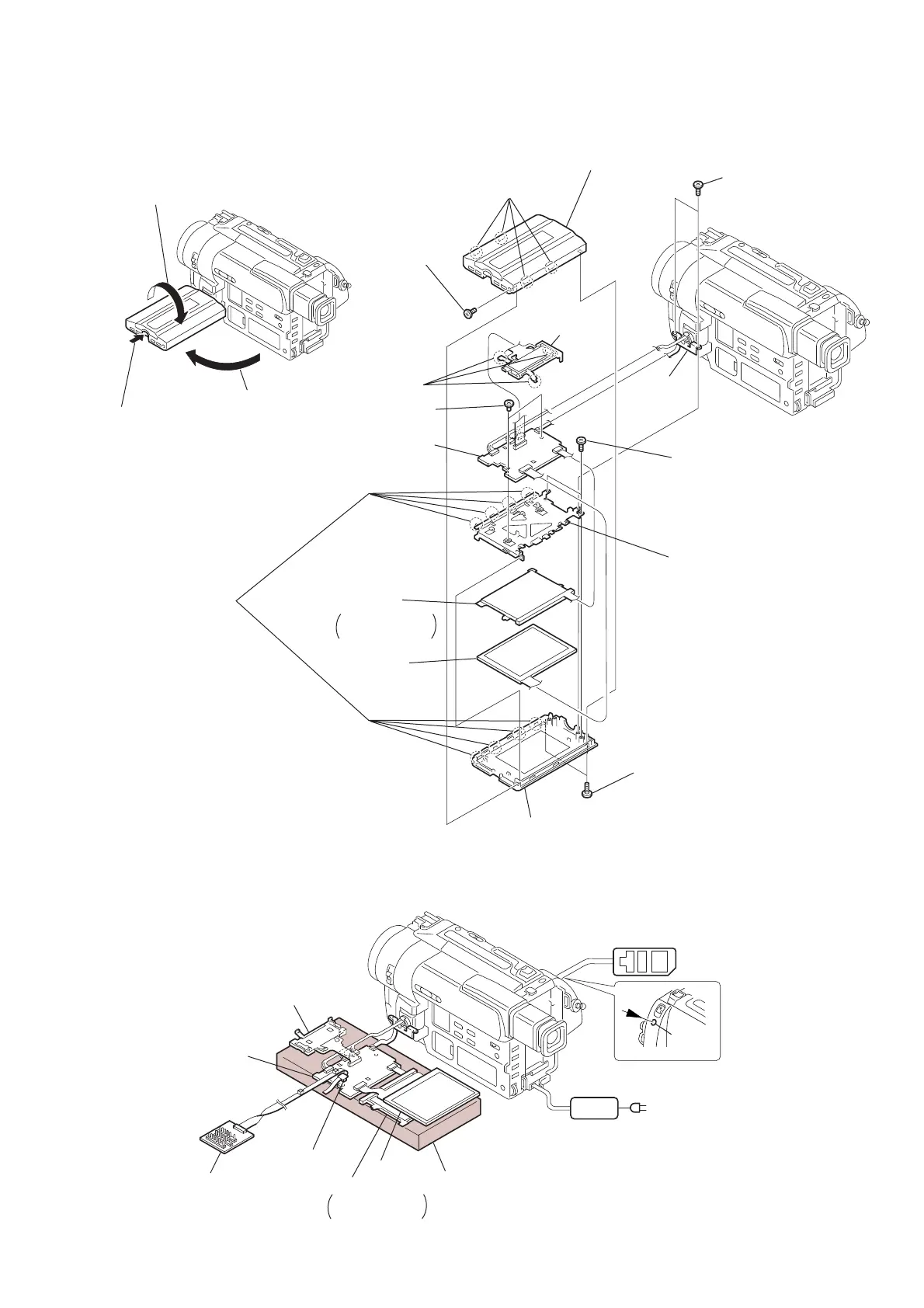

2-2. 3.0/3.5 INCH LCD UNIT, PD-106 BOARD
