4.14.4 LDU-20 pages
The LDU-20 panel has the pages that follow (examples).

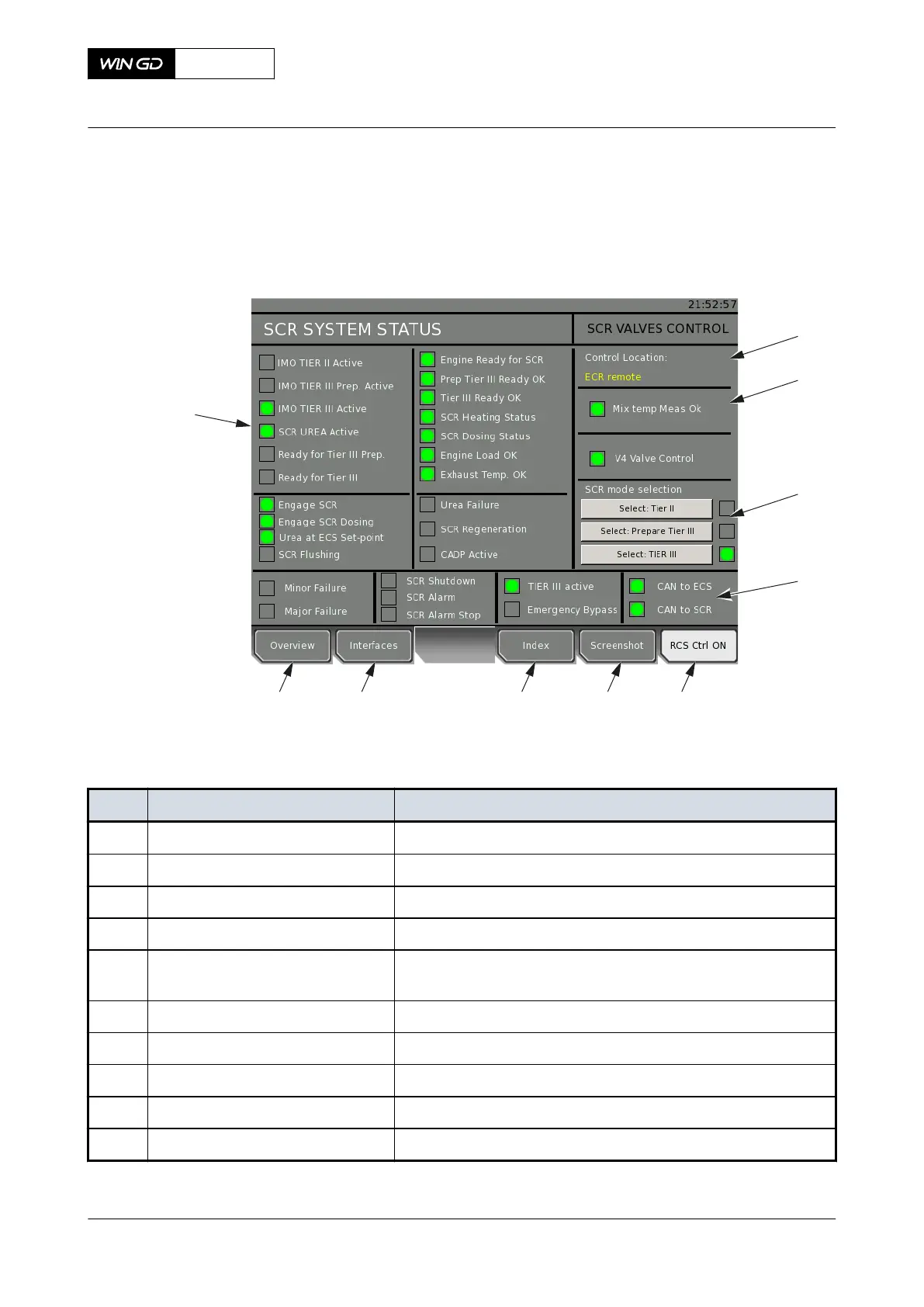

Fig 4-21 LDU-20 page - LP SCR SYSTEM STATUS (MAIN PAGE)
010
008
009
001 002 003
007
006
005004
Tab 4-1 LP SCR SYSTEM STATUS (MAIN PAGE)
Item Function Effect
001 OVERVIEW button Opens the SCR system overview page
002 INTERFACES button Opens the interfaces page
003 INDEX button Opens the index page
004 SCREENSHOT button Makes a screenshot of the current screen
005 RCS CTRL OFF button Gets control from the remote control system (if button is ac-
tive)
006 Status indication Shows the SCR status
007 Status indication Shows the control location
008 Status indication Shows the related status
009 Button and indication Starts and indicates the related SCR operation mode
010 Status indication Shows the status of the SCR system
X92DF
AA00-9270-00AAA-043B-A
Operation Manual LP Selective catalytic reduction system
Winterthur Gas & Diesel Ltd.
- 115 - Issue 002 2020-08
