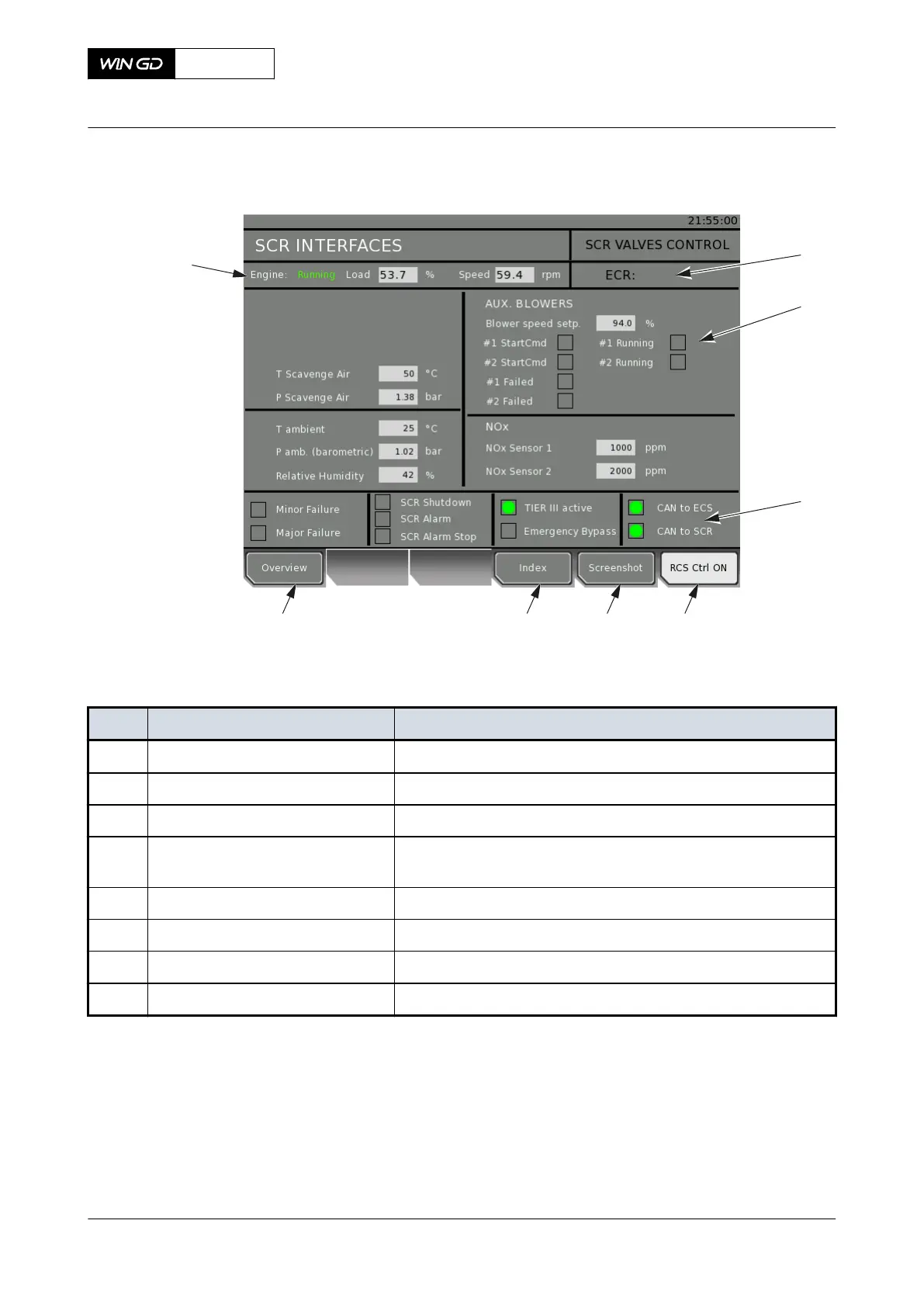

Fig 4-23 LDU-20 page - LP SCR INTERFACES
008
007
001 002 003
006
005
004
Tab 4-3 LP SCR INTERFACES
Item Function Effect
001 OVERVIEW button Opens the SCR system overview page
002 INDEX button Opens the index page
003 SCREENSHOT button Makes a screenshot of the current screen
004 RCS CTRL OFF button Gets control from the remote control system (if button is ac-
tive)
005 Status indication Shows the SCR status
006 Status indication Shows the control location
007 Status indication Shows the auxiliary blower status
008 Status indication Shows the status of the SCR system
X92DF
AA00-9270-00AAA-043B-A
Operation Manual LP Selective catalytic reduction system
Winterthur Gas & Diesel Ltd.
- 117 - Issue 002 2020-08
