PROCEDURE

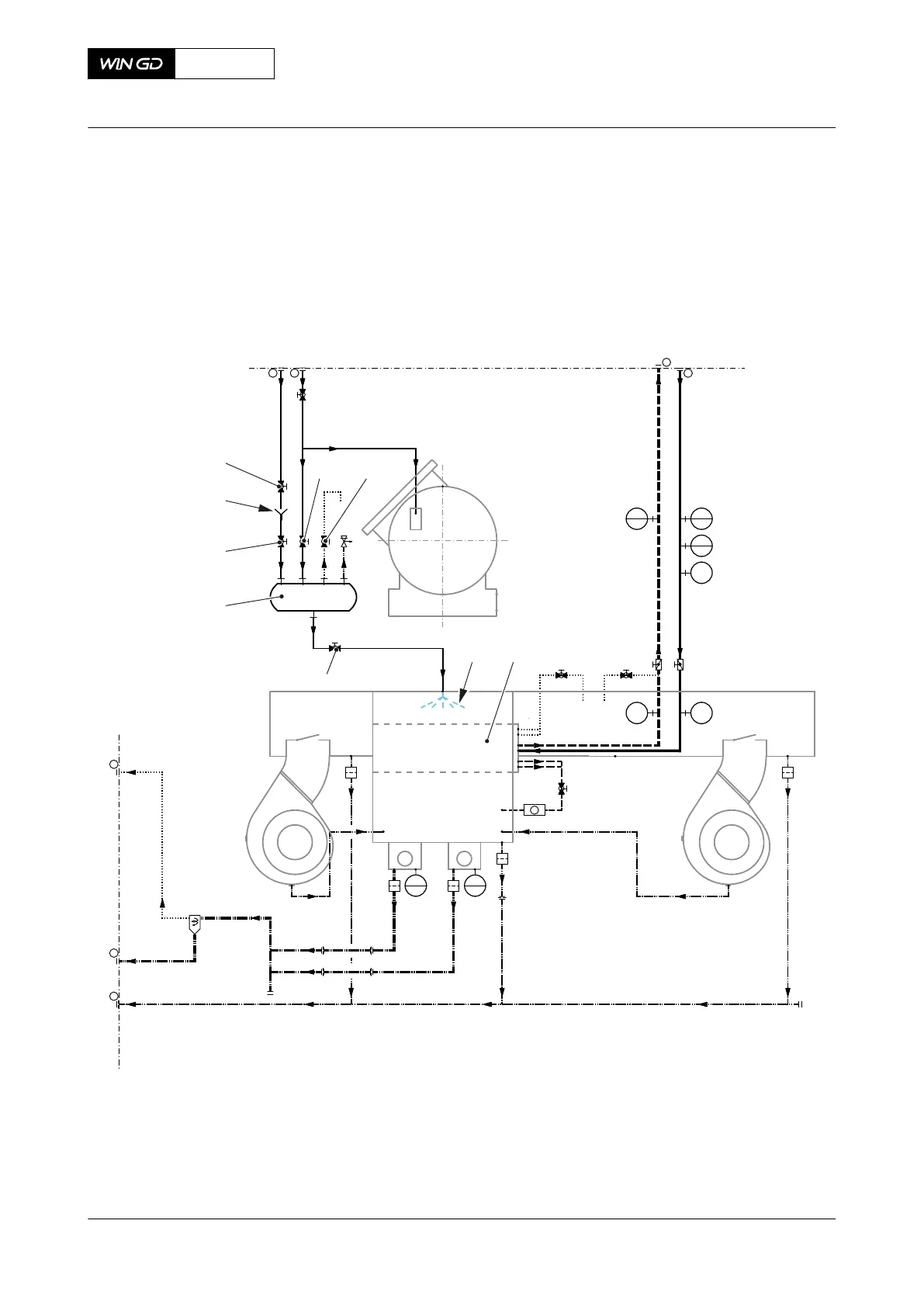

Fig 9-2 SAC - clean during operation (example)
Scavenge
Air Cooler
Aux
Blower
Turbocharger
1211
18
16
07
08
Aux
Blower
13
LS
4075A
LS
4071A
PI
1361L
TI
1371L
TI
1381L
PT
1361A
TE
1371A
TE
1381A
Washing
Plant SAC
PLANT
ENGINE
PLANT
ENGINE
003
00520
004 005
006
007
008
009
001 002
X92DF
AA00-6600-00AAA-200A-A
Operation Manual Clean the scavenge air cooler during operation
Winterthur Gas & Diesel Ltd.
- 499 - Issue 002 2020-08
