5.6.6 Water separator
The water separator removes water from the scavenge air. This prevents damage and gives
better combustion in the cylinders. Water occurs when the scavenge air cooler (SAC) decreases
the temperature of wet air. Water also occurs during the wash procedure of the SAC.
The profiles (002, Figure 5-47) hold back the water in the air flow. This water collects at the
bottom of the frame (003) and then flows back to the drain system.

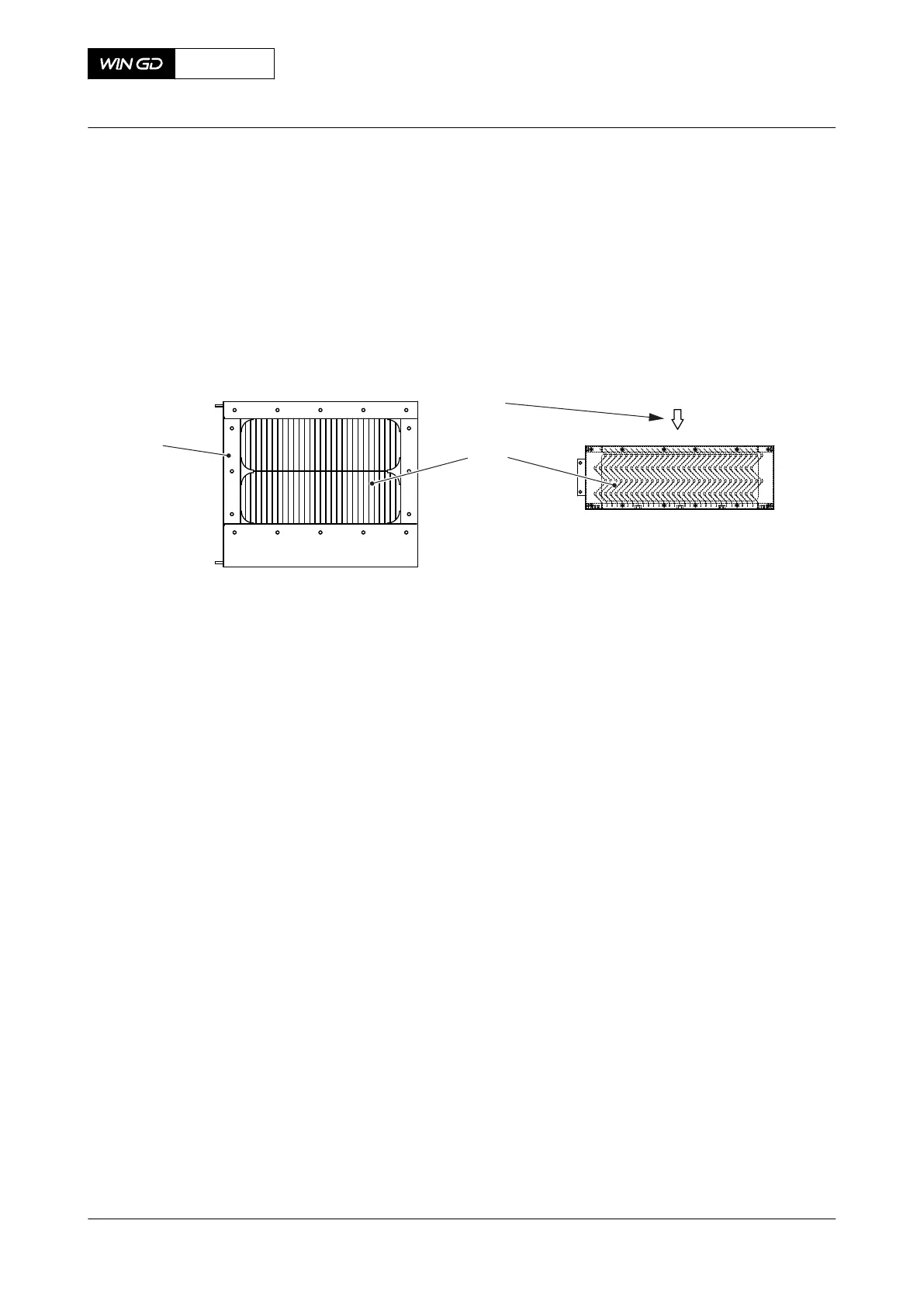

Fig 5-47 Water separator (generic)
Legend
001 Air flow 003 Frame
002 Profile
X92DF
AA00-6708-00AAA-043A-A
Operation Manual Water separator
Winterthur Gas & Diesel Ltd.
- 232 - Issue 002 2020-08
