5.3.4 Turning gear
The turning gear slowly turns the crankshaft and thus moves the pistons, if the pinion (002,
Figure 5-21) is engaged on the flywheel (003). The electric motor (001) turns the pinion (002)
and is attached on the driving end of the engine. Related to the ratio of the gear wheels there is
approximately one full turn of the crankshaft in ten minutes.

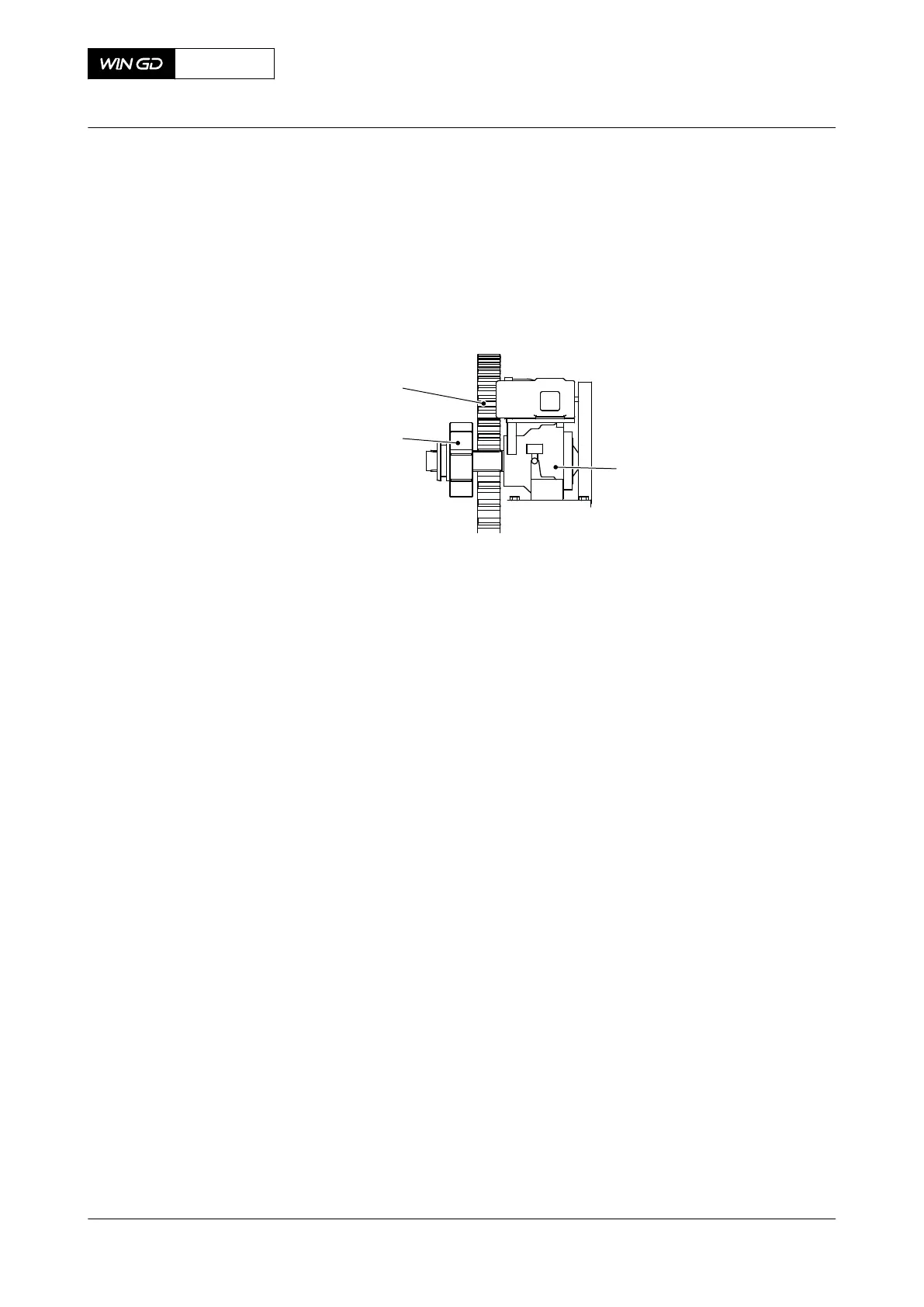

Fig 5-21 Turning gear (generic)
Legend
001 Electric motor 003 Flywheel
002 Pinion
X92DF
AA00-3206-00AAA-043A-A
Operation Manual Turning gear
Winterthur Gas & Diesel Ltd.
- 184 - Issue 002 2020-08
