6.4.2 ICC control
A pressure transmitter is installed on each cylinder cover. The cylinder pressure data of each
cylinder is taken as an analogue input signal from the pressure transmitter into the ECS.
The ECS filters the signals from the sensors and then transmits these signals to a controller.
The measured value is adjusted to the correct setpoint value and is related to the engine load.
This real-time site correction and comparison is done for each engine cycle (refer to Figure 6-4).

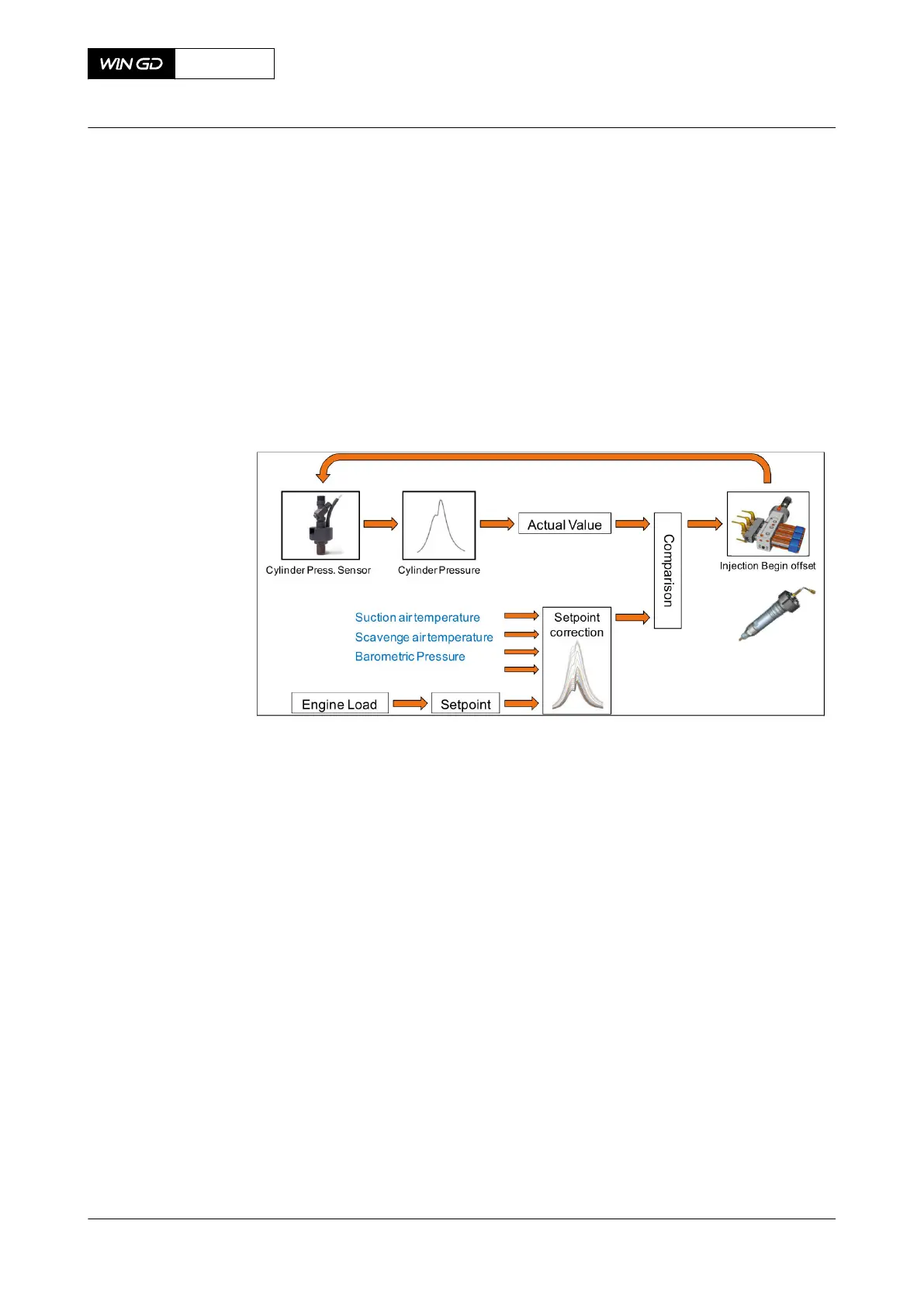

Fig 6-4 ICC - control schematic
Measured values
Target values
X92DF
AA00-9308-00AAA-043A-A
Operation Manual Intelligent combustion control
Winterthur Gas & Diesel Ltd.
- 276 - Issue 002 2020-08
