5.5.2 Supply unit
The supply unit includes the servo oil pumps and the fuel pumps. The supply unit is installed on
the column at the driving end of the engine. The gear wheels and intermediate wheels in the
supply unit operate the fuel pumps and servo oil pumps, refer to section 5.4.1 Supply unit drive.

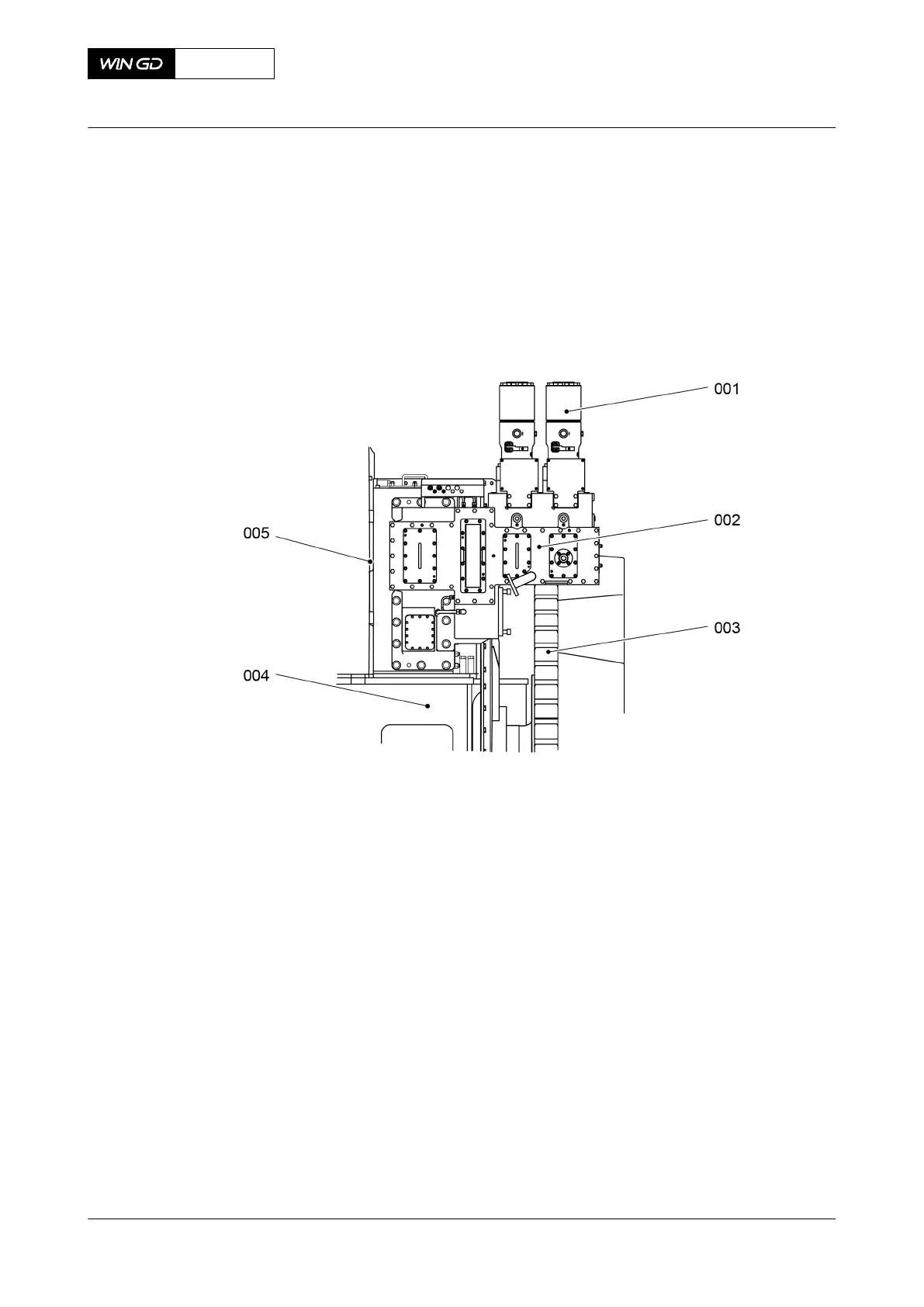

Fig 5-33 Supply unit (example)
Legend
001 Fuel pump 004 Bedplate
002 Supply unit with covers 005 Column
003 Flywheel
X92DF
AA00-5552-00AAA-043A-A
Operation Manual Supply unit
Winterthur Gas & Diesel Ltd.
- 208 - Issue 002 2020-08
