PROCEDURE

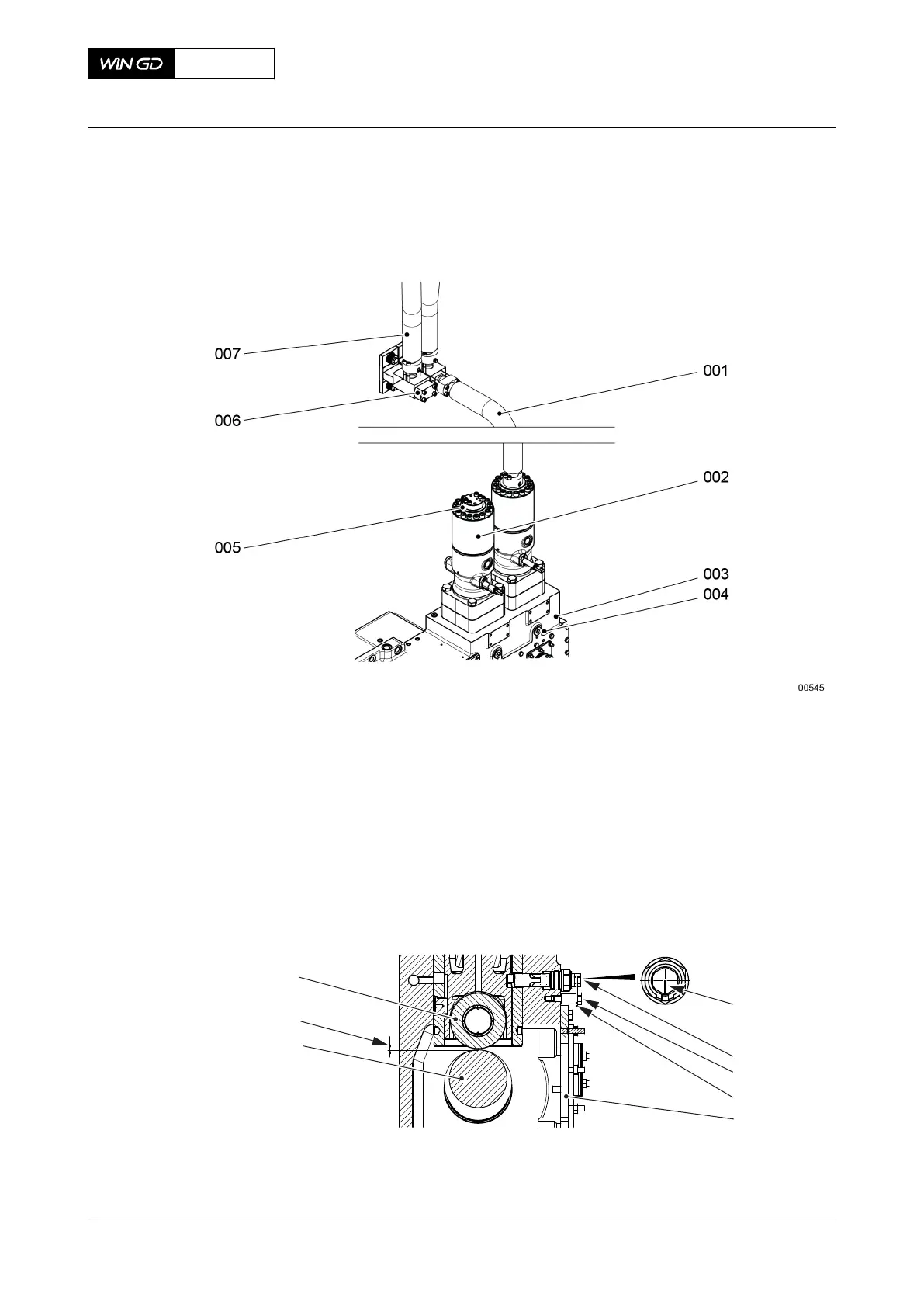

Fig 10-6 Fuel pump (example) - isolate
1 Release the pressure and drain the related HP fuel pipe (001, Figure 10-6).
2 Remove the related HP fuel pipe (001) from the fuel pump (002). For the applicable
procedure, refer to the Maintenance Manual.
3 Install the flange (005) to the fuel pump (002).
4 Install the flange (006) to the HP fuel pipe (007).
5 Remove the related cover from the supply unit (003).
6 Remove the related plug (004) from the supply unit (003).
Fig 10-7 Fuel pump (example) - cut out
007
002
X
006
001
003
004
005
00546
X92DF
AA00-5556-00AAA-510B-A
Operation Manual Disconnect the fuel pump
Winterthur Gas & Diesel Ltd.
- 555 - Issue 002 2020-08
