WinGD X92DF User Manual

6.10.2 WECS-9520 manual control panel
The WECS-9520 manual control panel is a multi-purpose module that has an LCD display (001,
Figure 6-66) and 15 function buttons (003). Some of the function buttons have a LED indication
(002).

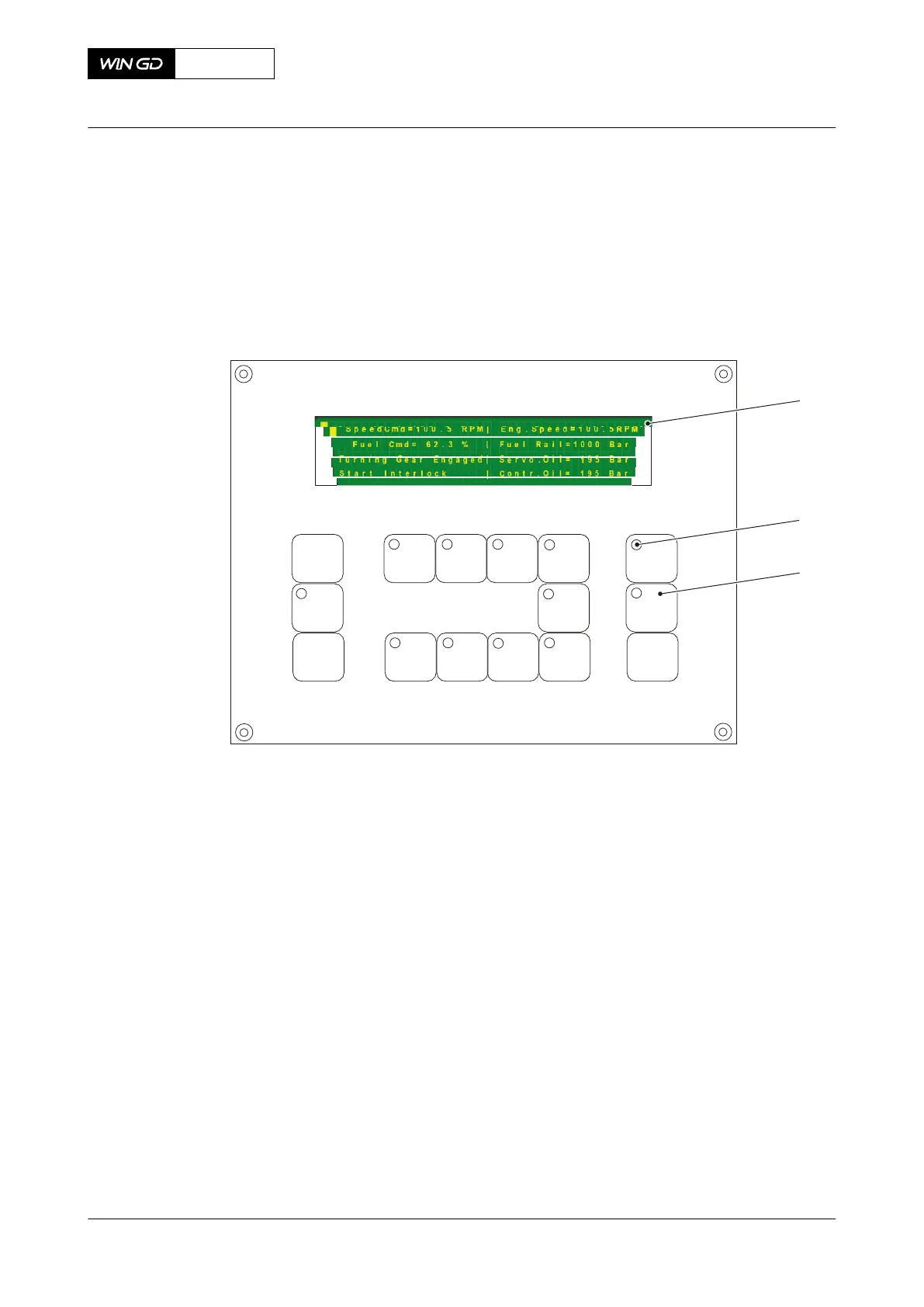

Fig 6-66 WECS-9520 manual control panel
xx
START
AHEAD
AIR
RUN
AUX.
BLOWER
PRESEL.
SPEED
CONTROL
MODE
REMOTE
AUTOM.
CONTROL
SAFETY
SYSTEM
RESET
STOP
ECR
MANUAL
CONTROL
SHD
OVERRIDE
START
ASTERN
SLOW
TURNING
AUX.
BLOWER
STOP
FUEL
CONTROL
MODE
LOCAL
MANUAL
CONTROL
SOUND
OFF-ALM.
ACKN.
WECS−9520 MANUAL CONTROL
xx
xx
xx
xx
xx
xx
xx
001
003
002
Legend
001 LCD display 003 Function button
002 LED indication
Important conditions are shown on the left side of the LCD display (001) in the third and fourth
lines and can include the data that follow:
•
Turning Gear Engaged and No Aux. Blower Running
•
Emergency stop
•
Overspeed
•
Shut-down signal active
•
Shut-down signal is possible
•
Slow-down signal request
•
Start interlock (together with an indication in the third line).
X92DF
AA00-4618-00AAB-043B-A
Operation Manual WECS-9520 manual control panel
Winterthur Gas & Diesel Ltd.
- 412 - Issue 002 2020-08
