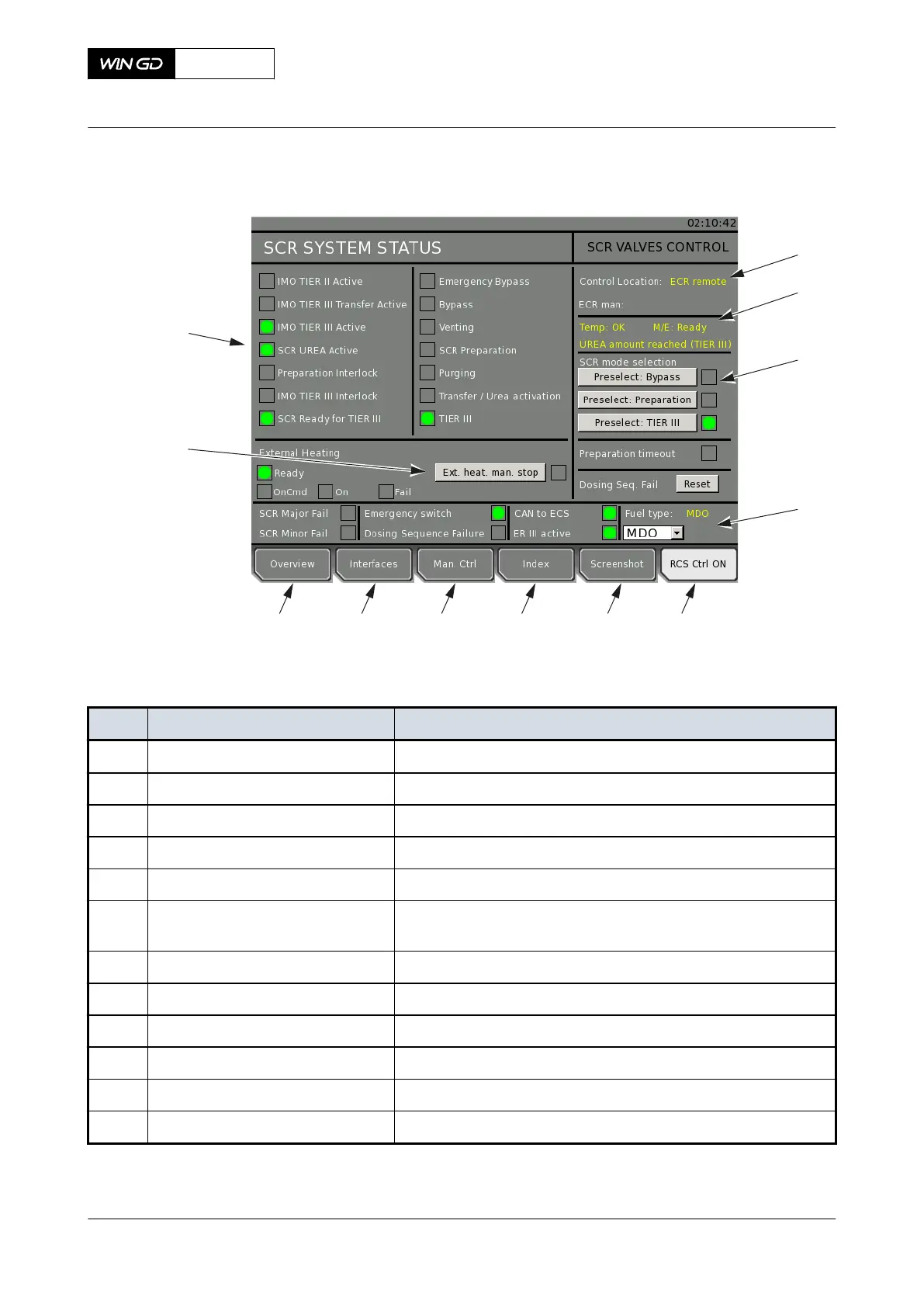

Fig 4-37 LDU-20 page - HP SCR SYSTEM STATUS (MAIN PAGE)
012
011
009
010
001 002 003 004
008
007
006005
Tab 4-7 HP SCR SYSTEM STATUS (MAIN PAGE)
Item Function Effect
001 OVERVIEW button Opens the SCR system overview page
002 INTERFACES button Opens the interfaces page
003 MAN CTRL button Opens the manual control page
004 INDEX button Opens the index page
005 SCREENSHOT button Makes a screenshot of the current screen
006 RCS CTRL ON button Gets control from the remote control system (if button is ac-
tive)
007 FUEL button Selects the fuel in use
008 Status indication Shows the control location
009 Status indication Shows the SCR status
010 Button and indication Starts and indicates the related SCR operation mode
011 Button and indication Stops and indicates the external heating system
012 Status indication Shows the status of the SCR system
NOTE: After boot-up of the LDU-20, the main page will be displayed. If you change to a
different page, press the HOME button of the LDU-20 to go back to the main page.
X92DF
AA00-9270-00AAA-043A-A
Operation Manual HP Selective catalytic reduction system
Winterthur Gas & Diesel Ltd.
- 133 - Issue 002 2020-08
