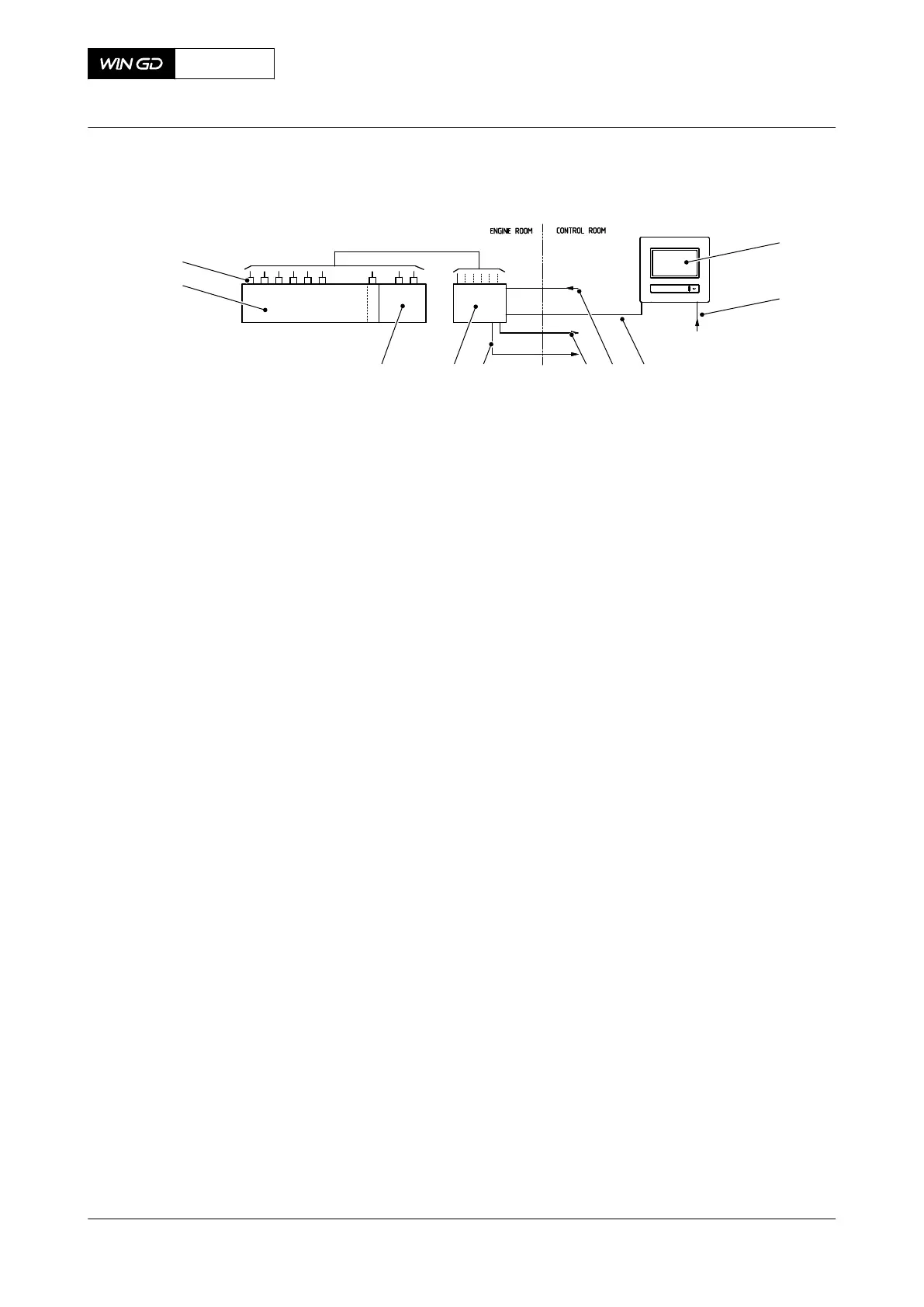

Fig 5-58 Oil mist detector - schematic diagram (example)
002
001
003002004
005006007
008
009
Legend
001 Control panel 006 Control unit E15.1
002 Power supply 007 Supply unit
003 Data cable 008 Crankcase and gear box
004 To alarm system 009 Sensor
005 To safety system
Data communication is between the control unit (006, Figure 5-58) and the control panel (001).
The adjustments can be programmed in the display unit (001). The menu-driven software has
three user levels:
•
User - Read-only of data
•
Operator - Password-protected level for access to most adjustments and functions
•
Service - Password-protected level for authorized staff of the manufacturer and service
personnel.
NOTE: Instructions that relate to adjustments, commissioning, troubleshooting, and
maintenance are given in the related documentation of the manufacturer.
