5.7 Group 7 - Cylinder lubrication
5.7.1 Cylinder lubrication
For more data about the cylinder oil system, refer to section 4.6 Cylinder oil system.
5.7.1.1 Cylinder lubricating pump
Each cylinder has a cylinder lubricating pump. The cylinder lubricating pumps are connected to
the distributor pipe (mini-rail) in the rail unit.
Servo oil from the distributor pipe (mini-rail) operates the cylinder lubricating pumps when the
related control signals are released from the ECS.
When the ECS sends a signal to the related solenoid valve (003, Figure 5-48) of the cylinder
lubricating pump, the solenoid valve (003) operates. Then a specified quantity of cylinder oil
flows through the oil outlets (001) to the related lubricating quills.

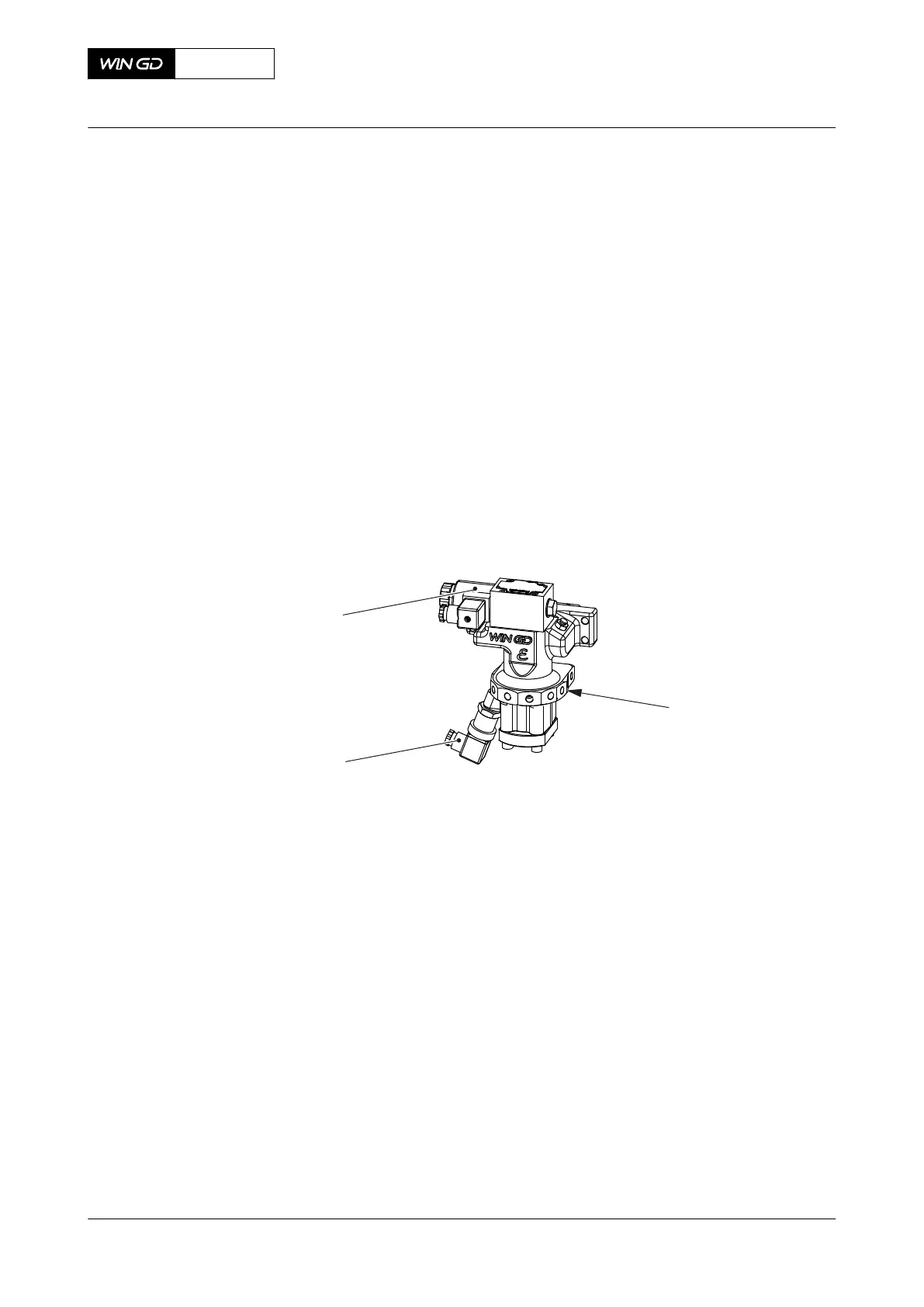

Fig 5-48 Cylinder lubricating pump
Legend
001 Oil outlet 003 Solenoid valve
002 Pressure transmitter
X92DF
AA00-7218-00AAB-043A-A
Operation Manual Cylinder lubrication
Winterthur Gas & Diesel Ltd.
- 234 - Issue 002 2020-08
