1/05
8a-40
DocuColor 12/DCCS50
PL 15.14
Reissue
High Capacity Feeder

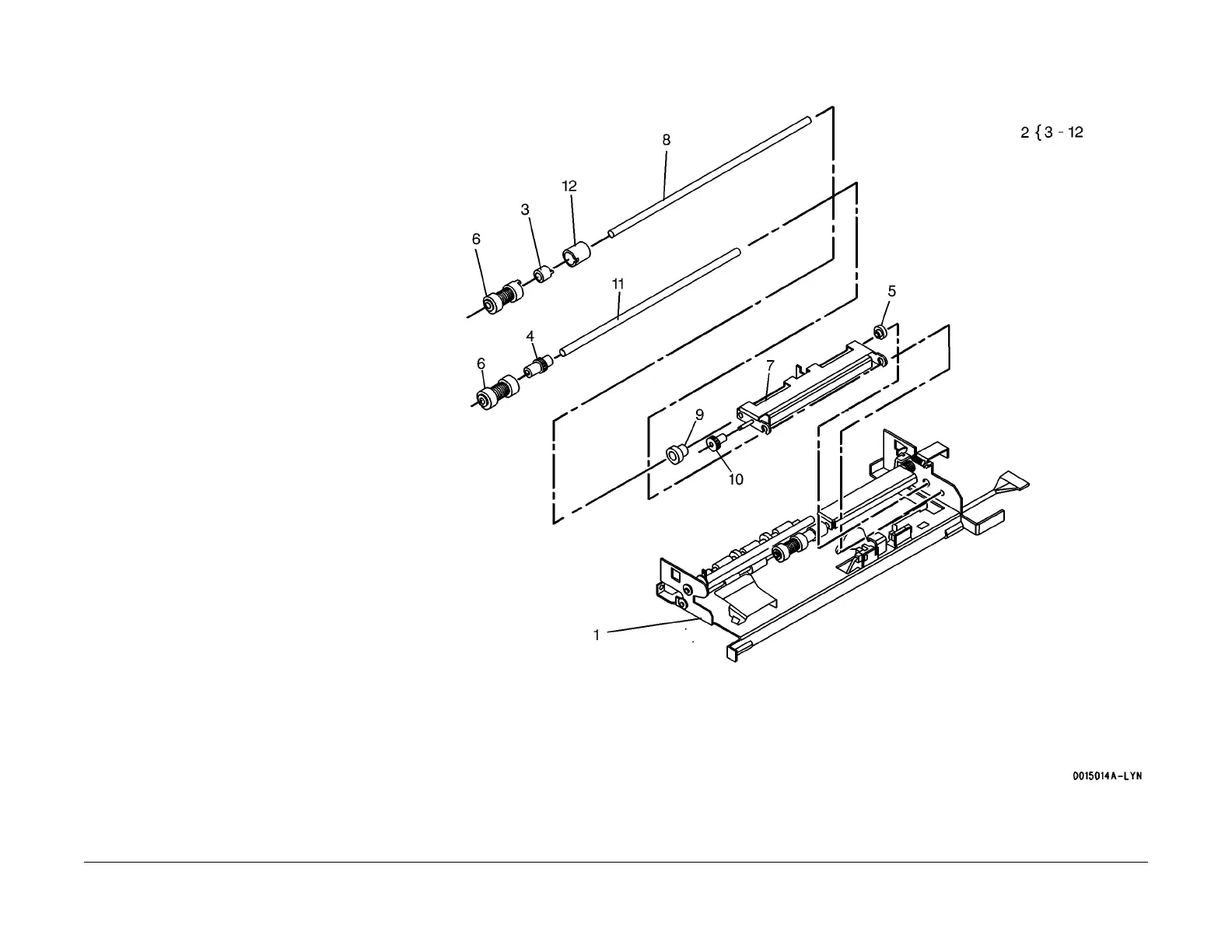

PL 15.14 Paper Feeder Assembly:
Part 5 OF 6
Item Part Description
1 – Feeder Housing (P/O PL15.11 Item
2)
2 – Nudger Feeder Assembly (P/O
PL15.
10 It
em 1)
3 005K04460 One Way Clutch (REP 2.8.39)
4 007E88971 Gear (25T)
5 013E92890 Bearing
6 022K64850 Feed/Nudger Roller (REP 2.8.38)
– 059K27640 Feed/Nudger Roller (Alternate)
– 022K49980 Feed/Nudger Roller (Alternate)
7 – Support (P/O Item 2)
8 006E58342 Feed Shaft
9 413W29357 Bearing
10 007E88961 Gear (31T)
11 – Nudger Shaft (P/O Item 2)
12 005K04470 Gear Clutch (25T) (REP 2.8.39)
