1/05
4-131
DocuColor 12/DCCS50
REP 8.7.1
Repairs and Adjustments
Reissue
REP 8.7.1 Oil Pump
Parts List on PL 8.7
Removal
WARNING
Turn power off and disconnect the power plug.
CAUTION
Since the Fuser is very hot, wait until the Fuser becomes sufficiently cold.
1. Open the Front Door.
2. Remove the Fuser Unit (REP
8.1.
1).
3. Remove the Front Cover (PL 8.1).

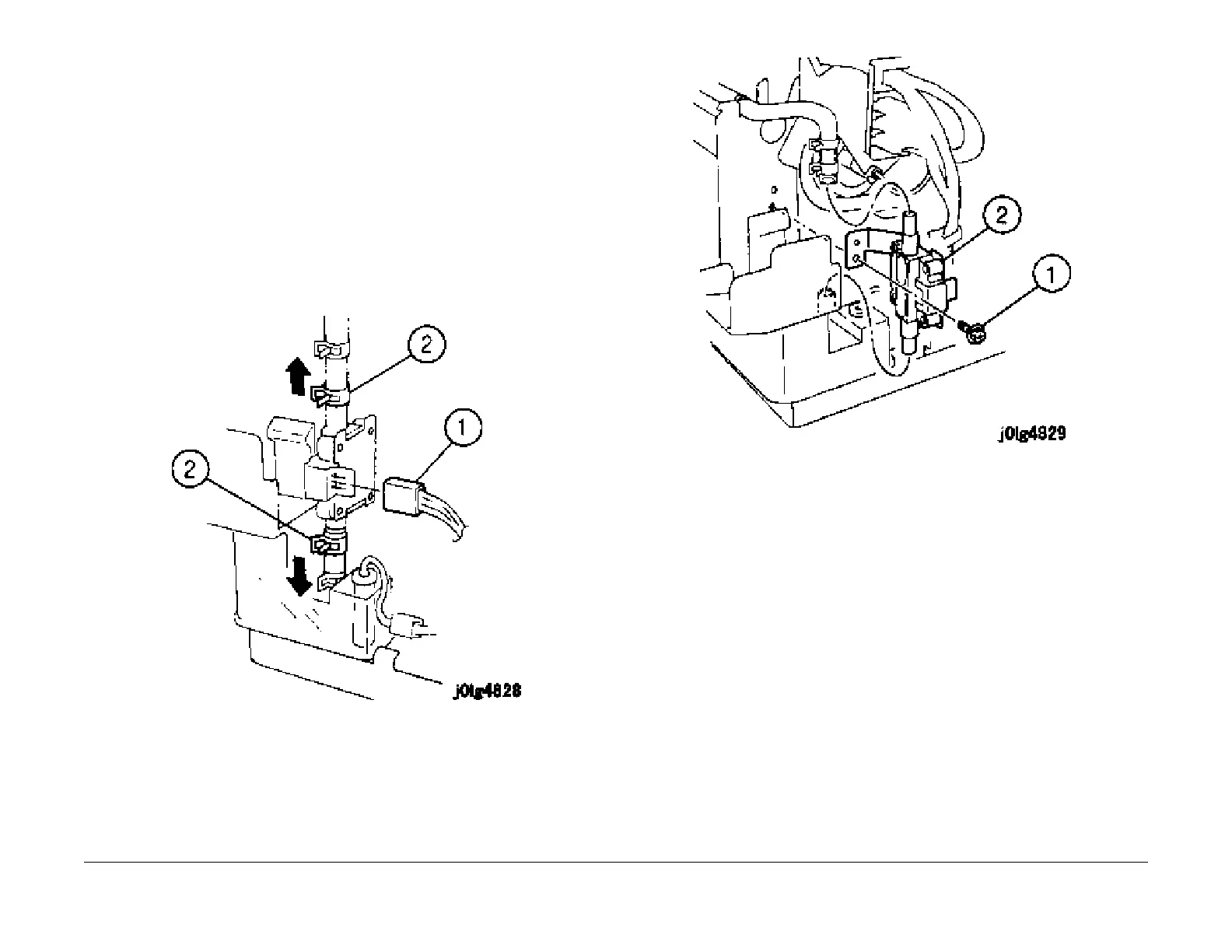

4. Move the clamp in the direction of the arrow (Figu
re 1).
1. Disconnect the connector.
2. Move the clamps (2) in the direction of the arrow.
Figure 1 Move the Clamps
5. Remove the Oil Pump (Figu
re 2).
NOTE: After removing the Oil Pump, drain the oil remaining in the tube into the tank.
1. Remove the screw.
2. Remove the Oil Pump.
Figure 2 Remove the Oil Pump
Installation
1. Reinstall the parts in the reverse order of disassembly.
2. Perform the Full Fuser Break-In Procedure (GP
1 Fuser Break-In Procedure).
To Next Page
