4-6
DocuColor 12/DCCS50
REP 1.4.1
Reissue
Repairs and Adjustments
Remove the Main Motor.

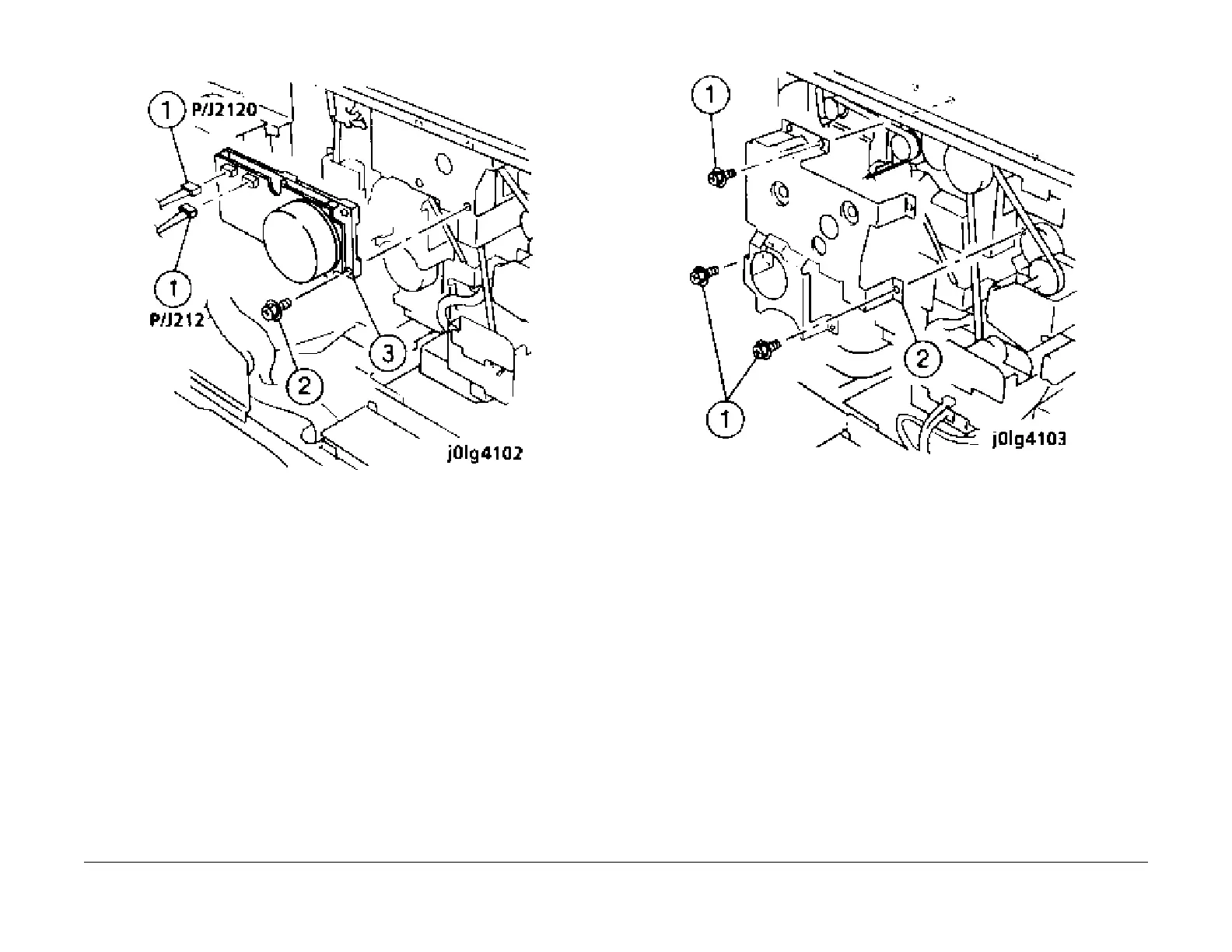

Figure 2 Removing the Main Motor
7. Remove the Main Motor Bracket (Figur
e 3).
1. Remove the screws (7).
2. Remove the bracket.
Figure 3 Removing the Main Motor Bracket
8. Remove the Auger Drive (Fi
gu
re 4).
1. Disconnect the connectors (2).
2. Remove the E-clip.
3. Remove the gear.
4. Remove the screws (3).
5. Remove the Auger Drive.
6. Disconnect the connector.
7. Remove the bearing.
