1/05
4-32
DocuColor 12/DCCS50
REP 2.12.2
Reissue
Repairs and Adjustments
REP 2.12.2 Tray 5 Retard Roll
Parts List on PL 2.12
Removal
NOTE: After replacing the Retard Roll, clear the HFSI counter. DC135(008-810) Diag.Screen
NOTE: Replace the Tray 5 Retard, nudger and feed rolls at the same time.
WARNING
Turn power off and disconnect the power plug.
1. Open the upper Tray 5 Assembly (Figu
re 1).
1. Pull up the lever and open the Upper Tray 5 Assembly.

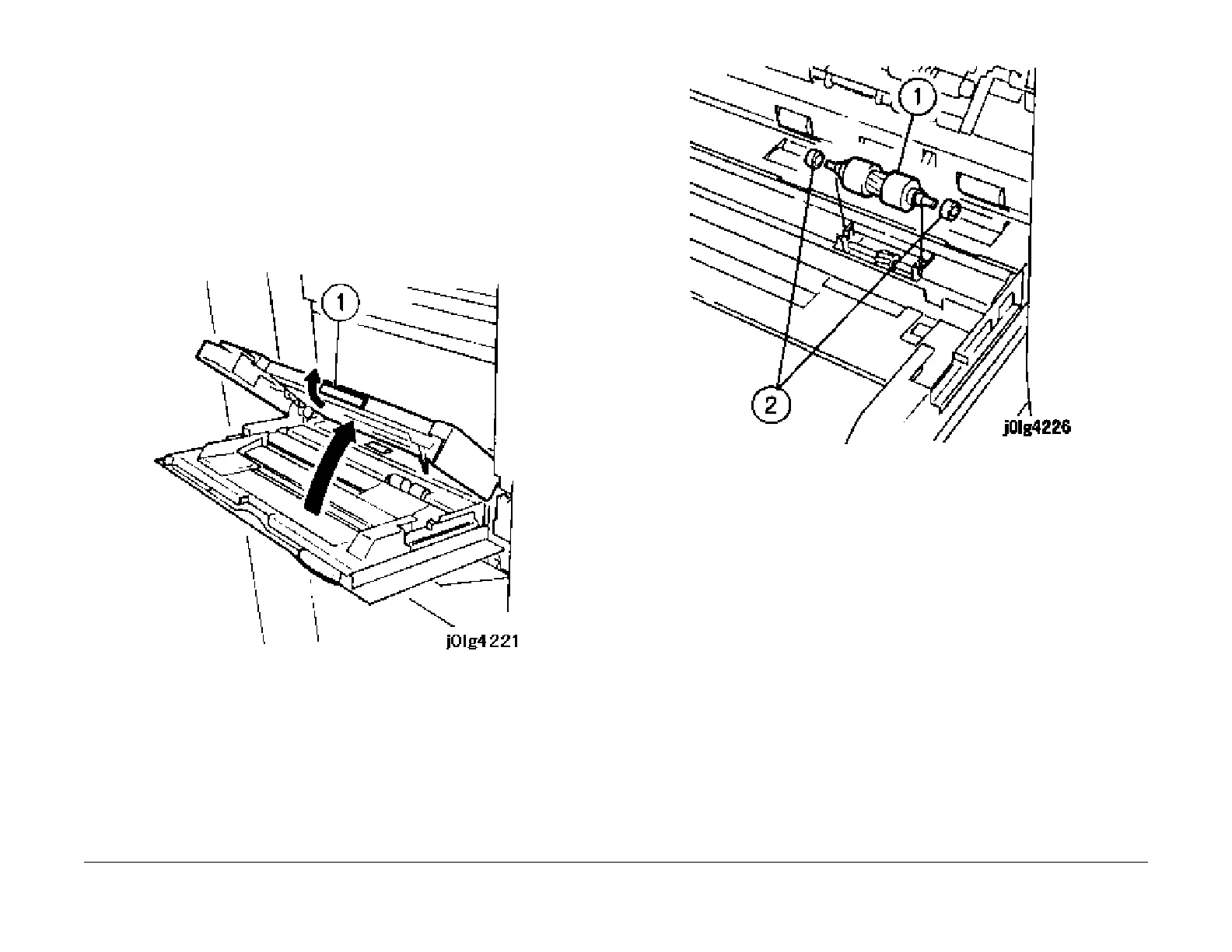

Figure 1 Opening the Upper Tray 5 Assembly
2. Remove the Tray 5 Retard Roll (Figu
re 2).
1. Remove the Tray 5 Retard Roll.
2. Remove the collars (2).
3. Remove the shaft.
Figure 2 Removing the Tray 5 Retard Roll
manuals4you.commanuals4you.com
To Next Page
